choice us is choosing good quality and service

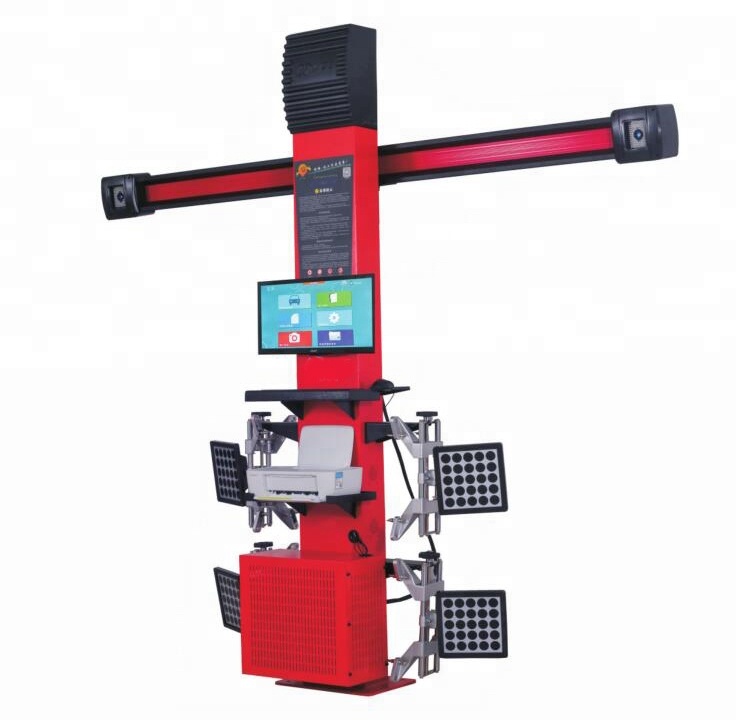

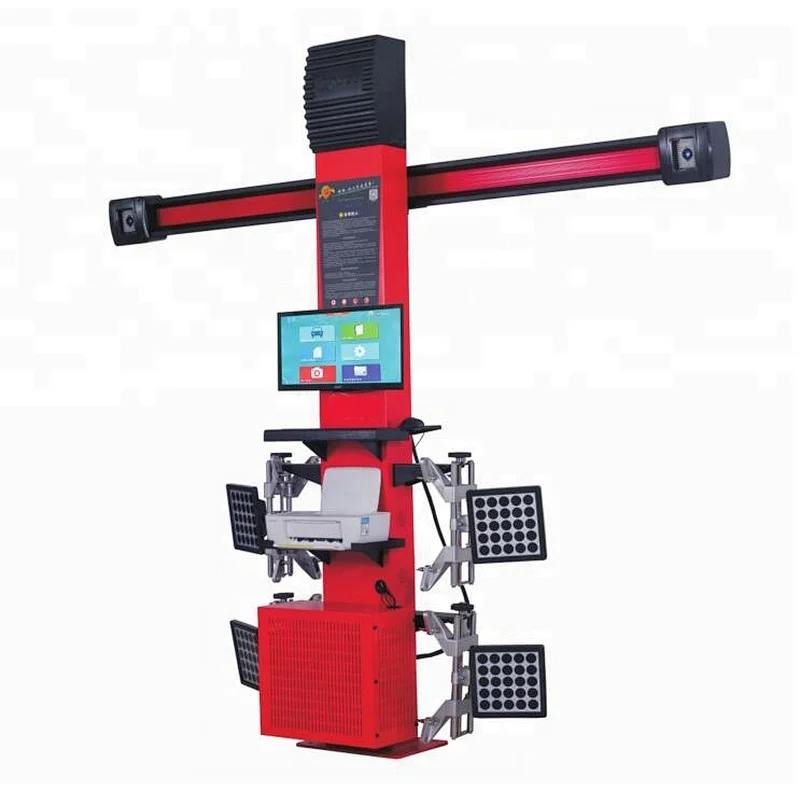

3D wheel alignment
3D wheel alignment
3D wheel alignment
3D wheel alignment
3D wheel alignment
3D wheel alignment

3D wheel alignment

Model NO.:12052
USD2700.00-USD3500.00
  • DeliveryFOB
  • Minimum order quantity1 set
  • Supply Ability2000 set / Month
  • Country of OriginShanghai Or Ningbo
  • with automatic tracking function work with varies car lift on sale with CE

    Categories: Auto testing items
    • Place of Origin:CN;ZHE
    • Power:0.5 KW
    • Power Supply:220V
    • Balancing Speed:200rpm
    • Max. Wheel Weight:65kg
    • Brand Name:WISN
    • Model Number:12052
    • Warranty:1 Years
    Product Description


    Features:

    • Professional, Stable, Durable, Affordable

    • Professional: Dual camera system (imported from Japan)

    • Dual-core CPU computer system

    • Waterproof targets

    • 24 inch clamps

    • Calibration Free

    • Up t0 120cm lifting range

    • Auto lift platform compensation

    • Auto vehicle compensation

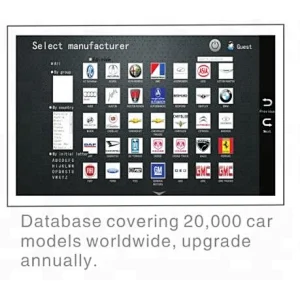

    • Super-big vehicle database covering over 20 000 models.

    • Height adjustable

    • Durable: Calibration Free

    • Long life hi-speed camera system

    • 12 months warranty

    • Multilingual software-including English,German,Polish,Spanish,Português.

    • 3D camera frame from Germany, lens 20'' from Japan for 5m length car body test high accurate.

    Environment demands:

    1. charger : 220v (50 /60 Hz) ± 10% output. Better with voltage regulator or UPS
    2. working temperature: 0~40C
    3. Relative humidity: 10~85% without dew
    4. Distance between camera to target : 500mm , between camera to lifter: 800mm, between camera to
    5. turntable : 2700 ~2800mm
    6. Power consumption: 0.5kw needs to connect with earthing conductor over 1.5m
    7. Anti-rust , anti-magnetic parts, getting rid of direct solar radiation.

    TECHNICAL PARAMETERS:

    ItemRangeAccuracy
    Total Toe

    ±20°

    ±0.02°

    Individual Toe

    ±20°

    ±0.01°

    Camber

    ±20°

    ±0.02°

    Caster

    ±20°

    ±0.1°

    KPI

    ±20°

    ±0.1°

    Setback

    ±9°

    ±0.01°

    Thrust Angle

    ±9°

    ±0.01°

    Track width1.2-1.7m1.2-1.7m
    Wheel base1.8-3.6m1.8-3.6m
    Power supply110/220V,50/60Hz,1ph110/220V,50/60Hz,1ph
