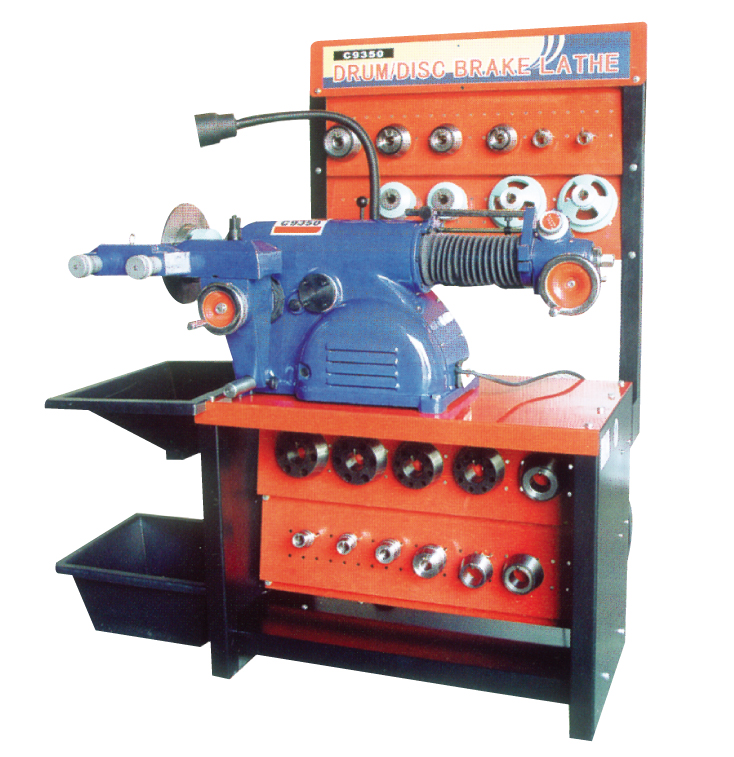

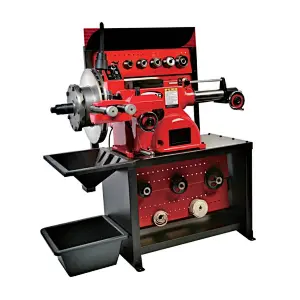

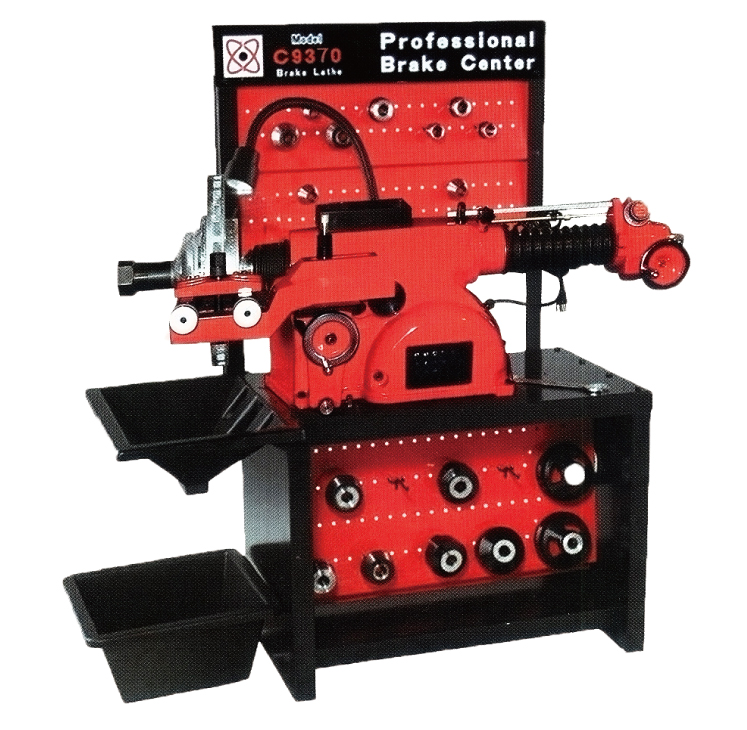

C9350/C9370 Brake Lathe Drum&Disc Cutting machine Disc Lathe
C9350/C9370 Brake Lathe Drum&Disc Cutting machine Disc Lathe
C9350/C9370 Brake Lathe Drum&Disc Cutting machine Disc Lathe

C9350/C9370 Brake Lathe Drum&Disc Cutting machine Disc Lathe

Model NO.:21013/21014
USD2530.00-USD2780.00
  • DeliveryFOB
  • Minimum order quantity1 piece
  • Supply Ability1500 piece / Month
  • Country of OriginShanghai or qingdao
  • Stock Time30 Days
  • C9350/C9370 Brake Lathe Drum&Disc Cutting machine Disc Lathe,Multipurpose applications to work-pieces, including brake hubs and disks even part of brake shoes

    • Condition:New
    • Type:Horizontal
    • CNC or Not:Normal
    • Automatic Grade:Automatic
    • After-sales Service Provided:Engineers available to service machinery overseas
    • Max. Swing Diameter:400mm
    • Brand Name:WISN
    • Voltage:Customer's Requirement
    • Power(W):7.5kw
    • Dimension(L*W*H):Workpiece Size
    • Weight:1500kg
    • Certification:CE


    Product Name: Brake Drum / Disc Cutting Machine





    Features:

    1.Available to various types of cars including medium trucks.

    2.Multipurpose applications to work-pieces, including brake hubs and disks even part of brake shoes if special moulds can be provided.

    3.High machining accuracy and serviceability.

    4.Stepless variable drive is provided for spindle feeding.

    5.Nitrided alloy steel 38CrMoAl is used for such important parts as gears etc., wearable and durable.

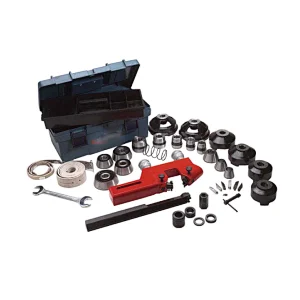

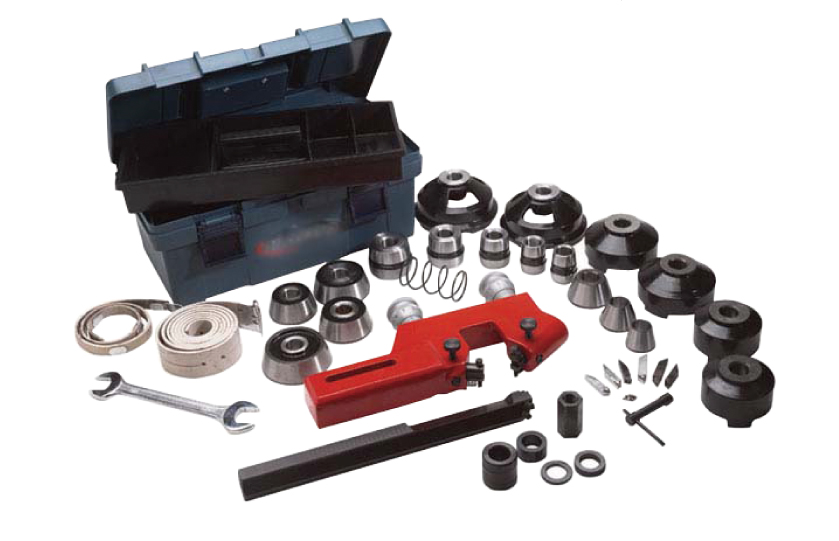

    6.Equipped with perfect work-holders/moulds and necessary accessories.

    Model

    C9350

    C9370

    Drum diameter

    Φ152-Φ500 mm

    Φ152-Φ711mm

    Drum depth

    245 mm

    245 mm

    Disc diameter

    Φ180-Φ385 mm

    Φ180-Φ457 mm

    Spindle speeds

    70, 80, 115 rpm

    70, 80, 120 rpm

    Spindle feed rate

    Infinitely variable

    Infinitely variable

    Cross feed rate

    0.05-0.25 mm/r

    0.05-0.25 mm/r

    Motor

    1HP, 220-240V /50-60HZ 0.75 Kw

    3HP,380-400V / 50-60HZ 0.75 Kw

    1HP, 220-240V /50-60HZ 0.75 Kw

    3HP,380-400V / 50-60HZ 0.75 Kw

    Packing dimensions(L x W x H)

    1220x890x1490 mm

    1200*900*440

    N.W/G.W.

    260 kg/340kg

    400KGS
