| Model | Capacity (Ton) | S | I | Z | E | (mm) | Pressure (MPa) | N.W. (kg) | G.W. (kg) | Packing size (mm) | Qty/20GP (PCS) |
| A | B | C | D | E | |||||||

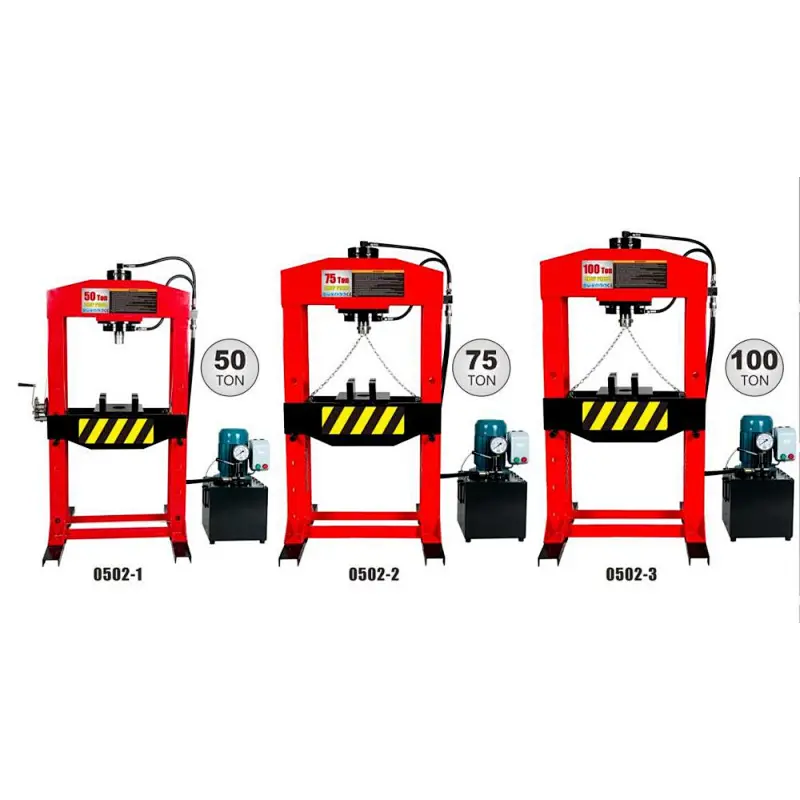

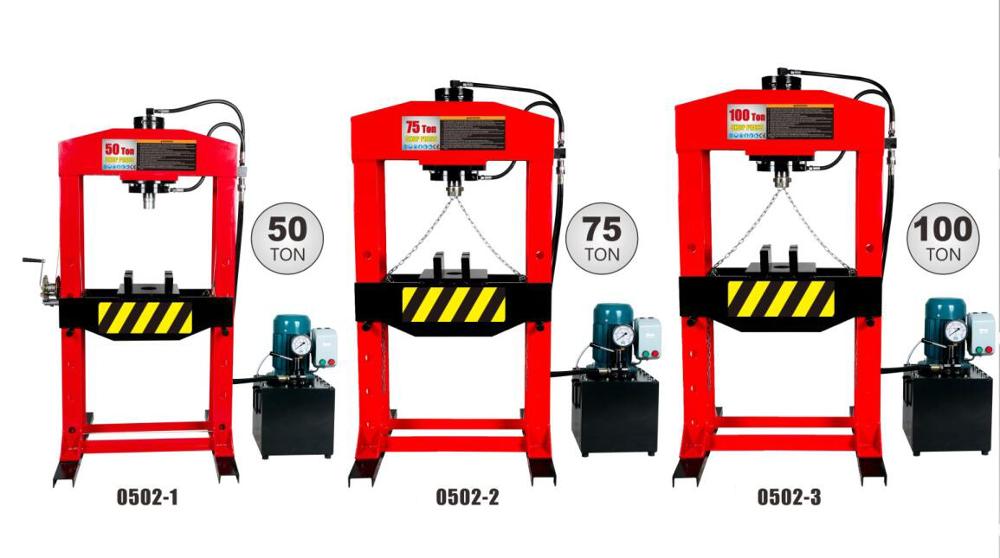

| 0502-1 | 50Ton | 900 | 1838 | 700 | 870 | 220 | 36.9 | 350 | 400 | 1020*540*1900 | 24 |
| 0502-2 | 750Ton | 1000 | 1955 | 760 | 600 | 280 | 36.6 | 480 | 530 | 1120*540*2050 | 20 |
| 0502-3 | 100Ton | 1100 | 2013 | 820 | 690 | 300 | 38.5 | 740 | 790 | 1230*630*2100 | 20 |

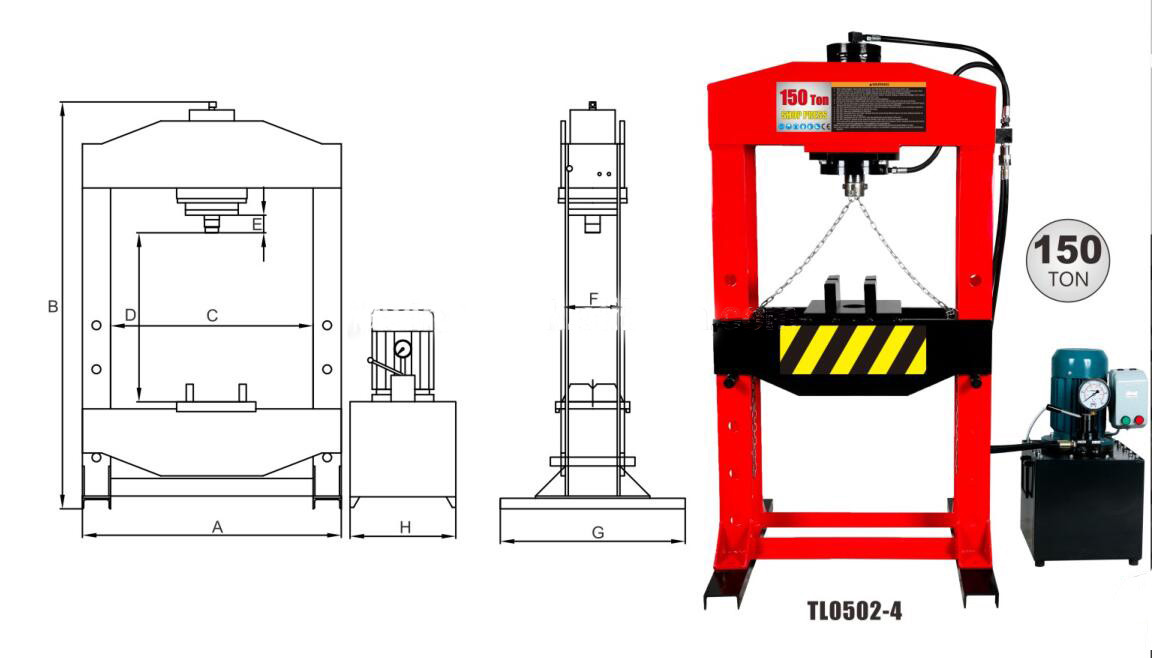

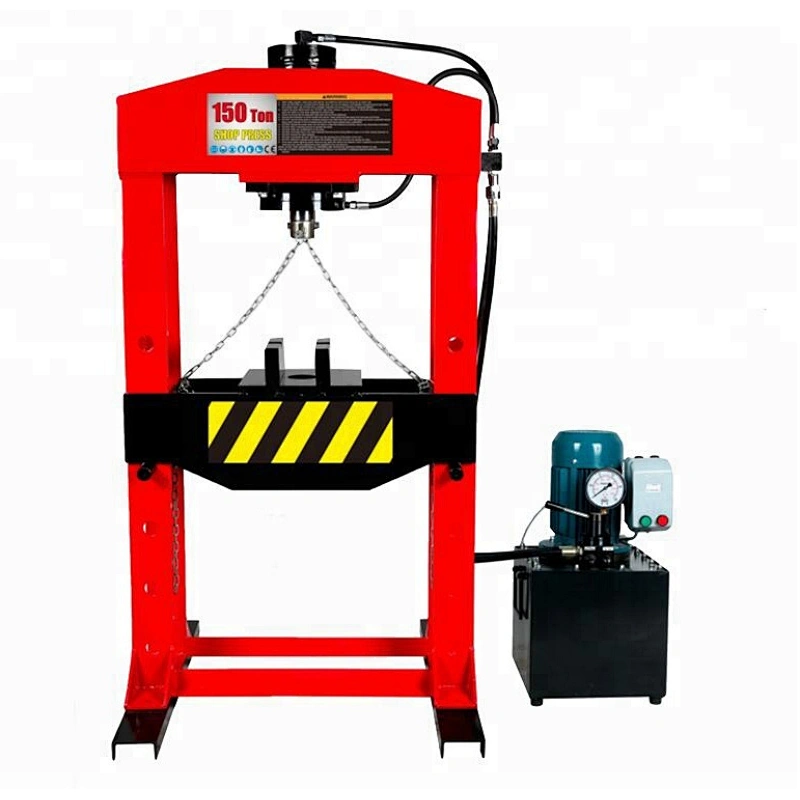

| 0502-4 | 150Ton | 1470 | 2310 | 1150 | 850 | 350 | 38.7 | 1070 | 1120 | 1600*7202350 | 15 |
