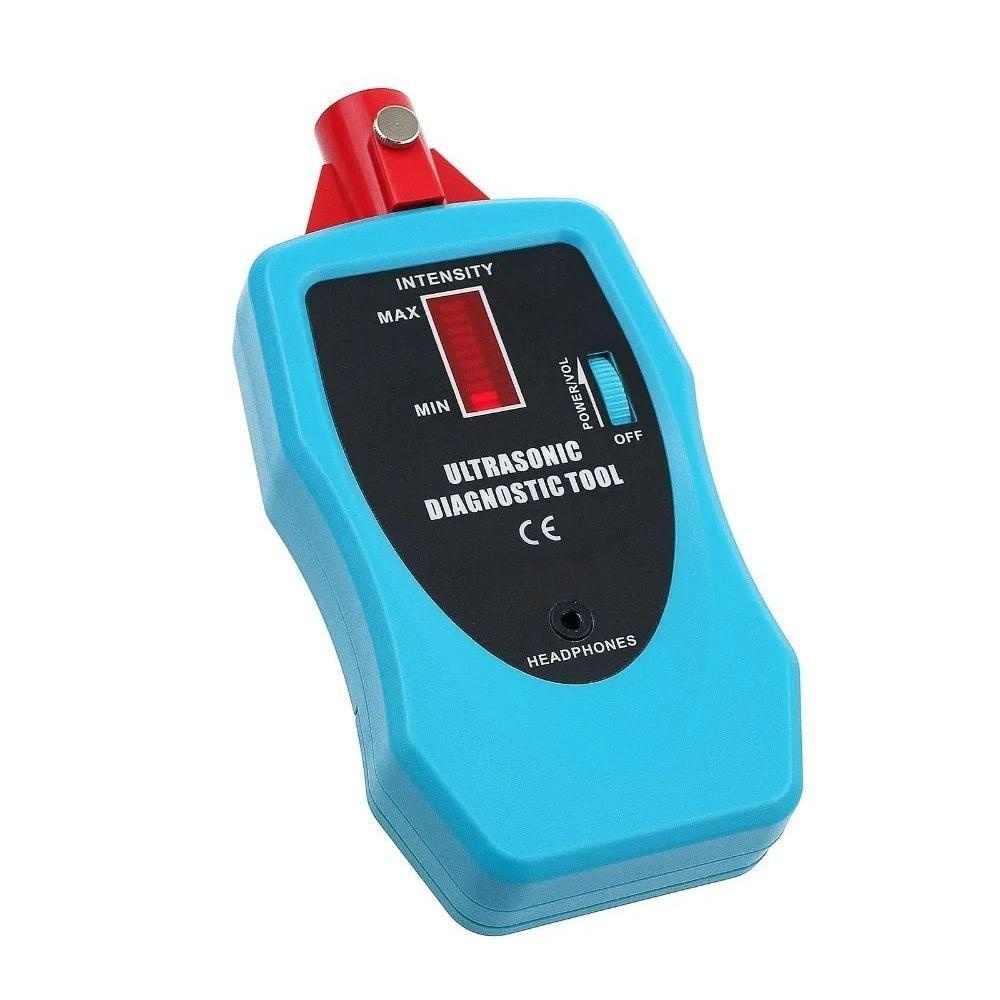

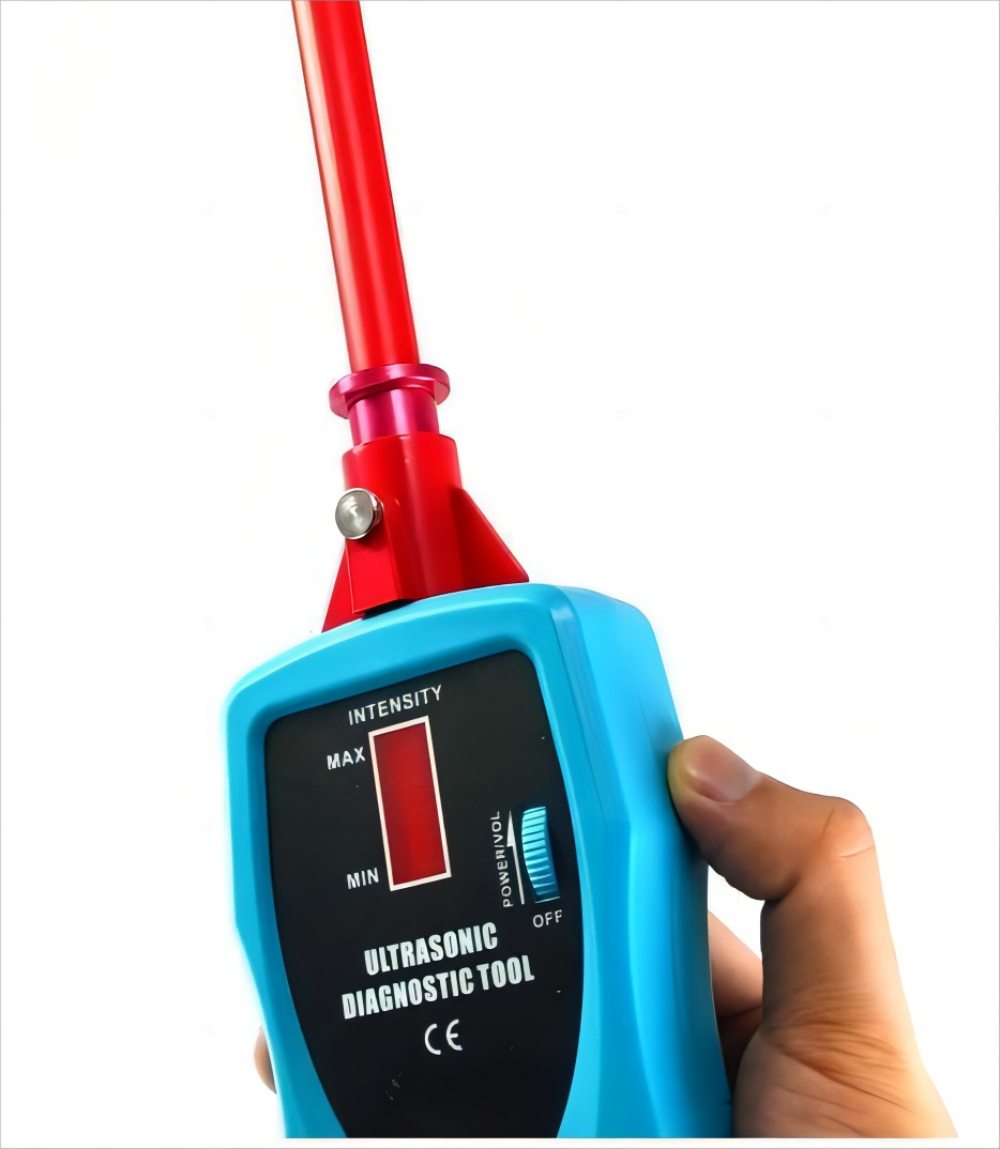

Ultrasonic Diagnostic Tool

Ultrasonic diagnostic Mechanical Wear Leak Detector

Quantity

Description

.Ultrasonic waves are highly directional, this directional aspect of ultrasonic waves allows one to isolate a suspect signature sound from other background noises and detect its exact location.


Features

1, This ultrasonic diagnostic tool operates on the principle mentioned above, it uses advanced ultrasonic sensing te chnolo gy and

converts inaudible ultrasonic sound into an audible s ound which bears a close likeness to the natural incoming sample.

2, It is easy to carry and operate, and its detection result is accurate and reliable.

3, Benefit in preventive maintenance. trouble shooting. quality control and diaanostics in the automotive. industrial. manufacturing and process industries


Specification

Battery: 9V
Frequency Response36000Hz to 44000Hz
Operating EnvironmentTemperature 0℃ to 40℃
Relative Humidity≤75%RH
Storage EnvironmentTemperature -10℃ to 50℃
Relative Humidity≤85%RH
Size176×84×35mm
Receiver170×84×36mm
WeightTone Generator about 156g
Receiverabout 183gProduct
Dimensions(inch)11.02x4.92x10.04
