choice us is choosing good quality and service

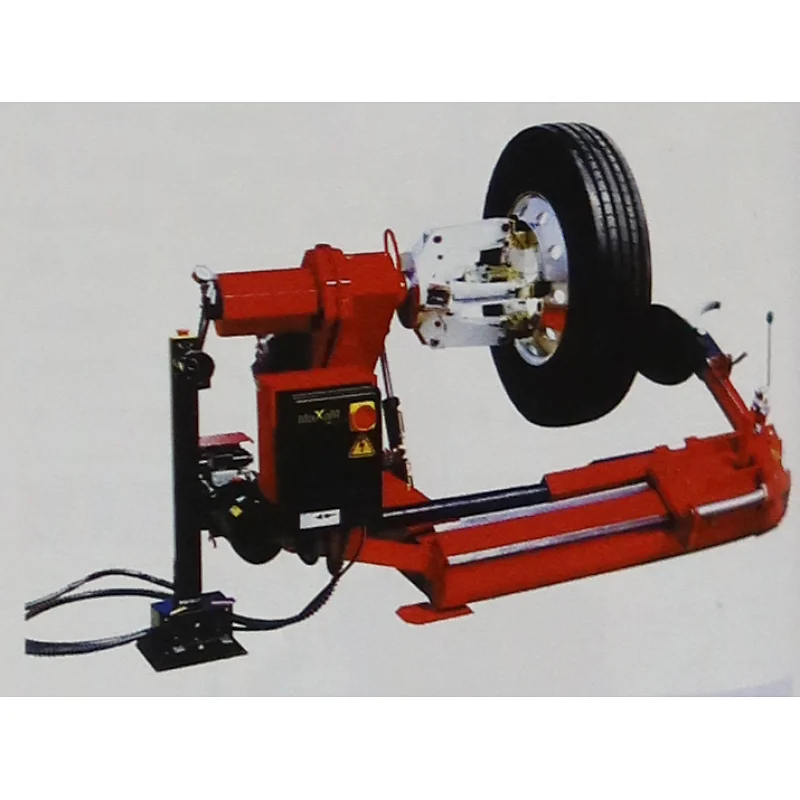

truck tire changing machine14

truck tire changing machine14"-26"

Model NO.:14048
USD1000.00-USD4000.00
  • Delivery:FOB
  • Minimum order quantity:1 set
  • Supply Ability:1000 set / Month
  • Country of Origin:Shanghai Or Ningbo
  • Stock Time:30days(Details According To Customers Order.) Days
    • Place of Origin:CN;ZHE
    • Motor Power:1.5kw
    • Operating Pressure:8-10 Bar
    • Power Supply:110V/220V/380V
    • Brand Name:WISN
    • Model Number:14048
    • Warranty:1 Years

    Operating Pressure130-150bar
    Max.Wheel Diameter1600mm

    Max.Wheel Width

    760mm
    Max.Wheel Weight1500kg
    Noise<75dB
    Rim Diameter14"-26"
    Hydraulic Pump Motor1.5kW 380V-3Ph50Hz
    Gearbox Motor1.8kW 380V-3Ph50Hz
    Net Weight585kg
    Gross Weight795kg
    Packing dimension2100*1650*770mm
    Volume2.67
    Quatnity in 20"Container9
    Quatnity in 40"Container21

    Feature:

    1. The main motor and related electrical devices comply with CE standards.

    2. The oil cylinder of the lifting arm is center support which can avoid the distortion when operating the large tyre.

    3. The electrical cabinet in line with the E-class protection standards.

    4. The aluminium-alloy reduction gearbox is used the die-casting process, with features of well sealed, oil tightness and good looking.

    5. The tool arm and mounting head is made of special material which can avoid the distortion when operating the large tyre. The mounting head design with excellent angle, it makes the operation easier.

    6. Equipped with the shifting plate, it will make the operation for the large tyre conveniently.
