- Place of Origin:CN;ZHE
- Brand Name:winsen
- Warranty:1 Years
Features:

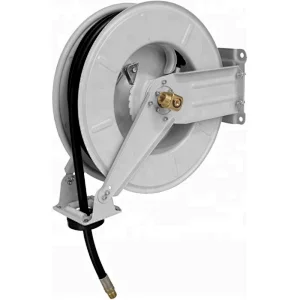

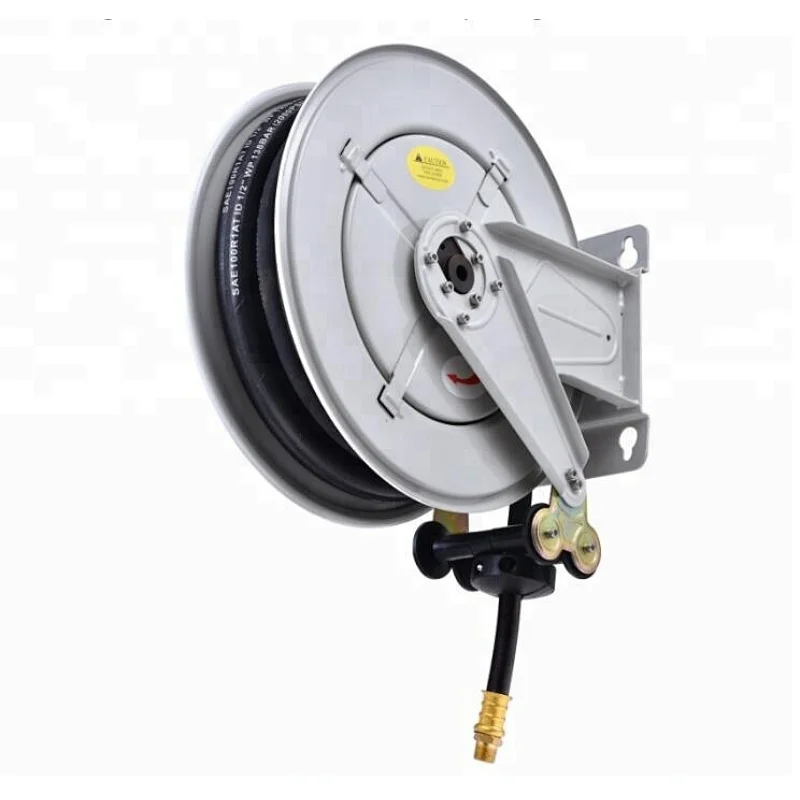

- The automatic hose reels are suitable for transferring fluids at several pressures and temperatures
The hose reels rewind automatically the hose by a spring located in the drum
The hose can be stopped at the desired length
The hot-galvanized steel structure is moulded and coated with electrostatic polyester powder resistant to UV rays
The parts in contact with the fluid are specially treated to improve resistance to corrosion
The special open construction allows an easy assembly and replacement of the hose and permits control of the rewinding

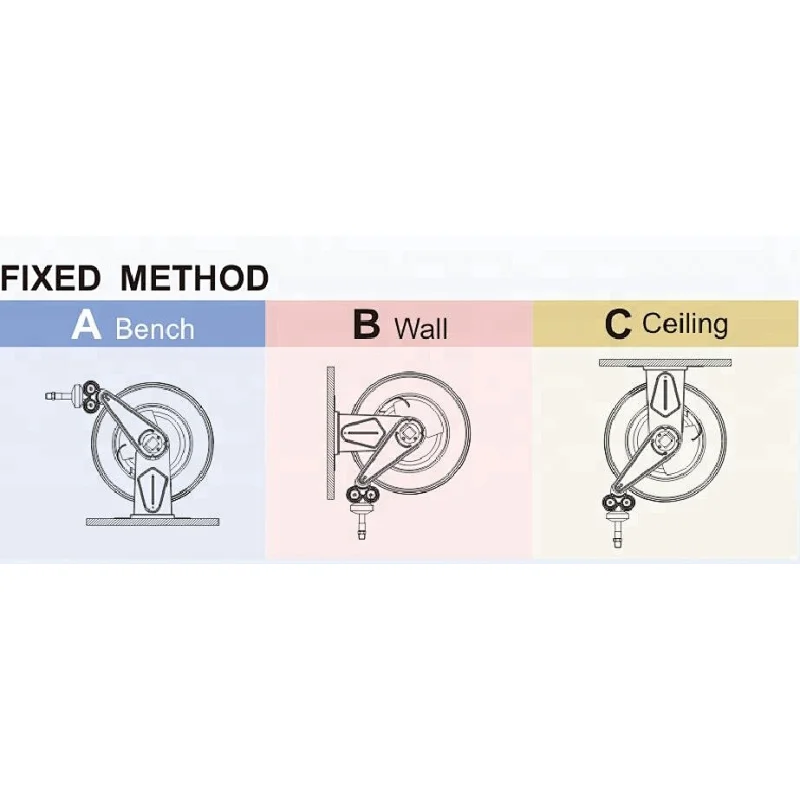

The hose-guide arms can be fixed in three different positions according to the hose reel installation(see A-B-C)
The range is divided into several models depending on hose diameters and lengths At request, versions equipped with special hoses can be supplied.
| Item | length | I"D" | Material | W.P. | Connection Inlet | Connection Outlet |
| 16154-1 | 15m | 3/8" | E. J. L. | 20Bar | F3/8"G | M3/8"G |
| 16154-2 | 20m | 3/8" | E. J. | 20Bar | F3/8"G | M3/8"G |
| 16154-3 | 15m | 1/2" | E. J. L. | 20Bar | F1/2"G | M1/2"G |
E. :Rubber plastic J.:EPDML.:L.P.GAS HOUSE
