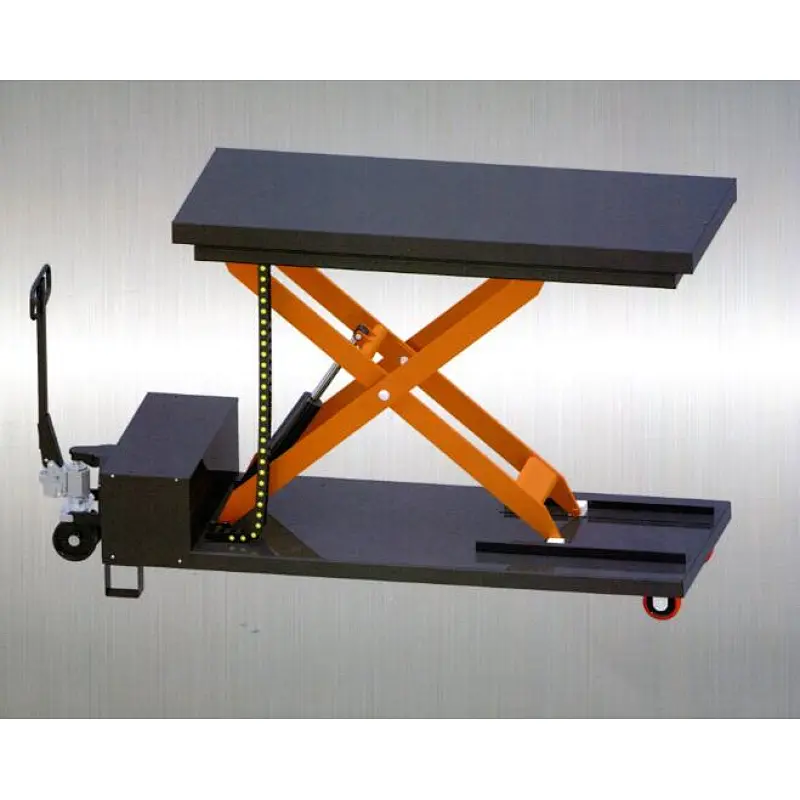

Muti-function movable scissor lift
Muti-function movable scissor lift

Muti-function movable scissor lift

USD500.00-USD800.00
  • Delivery:FOB
  • Minimum order quantity:1 piece
  • Supply Ability:3000 piece / Month
  • Country of Origin:Shanghai Port/Ningbo Port
  • Stock Time:30 Days
  • Muti-function movable scissor lift for new enectric vehicles

    Categories: Auto Lifter
    • Place of Origin:CN
    • Lifting Height(mm):660-1800mm
    • Model Number:EE-MS12
    • Brand Name:WINSEN
    • Overall Width(mm):2110mm
    • Warranty:1 Years
    • Lifting Capacity:1200kg
    • Type:One Cylinder Hydraulic Lift
    • Design:Scissor
    • Certification:
    Product Description




    Main Features:

    1. Wide range of application: A mobile lifting platform for disassembling,installing and repairing the battery module and driving motors of new enery vehicles.

    2. Muti-function adjustment: Eletrice control platform manages to achieve a 3D 6directional movement of vertical, X and Y axis.

    3. Stable and reliable control system: Programmable computer control, simplified wiring system, reliable performance.

    4. Simple operation: Portable wired remote control, user-friednly panel, easy to operate.

    5. Convenient mobility: Equipped hydraulic lift trailer to facilitate the movement of the platform.

    6. Low-voltage safety: DC 12V control system.

    Lifting capability: 1200kg Min.height: 660mm Max. height:1800mm

    Total length: 2646mm Total width: 920mm Motor power:1.6kw

    Power requirements: DC12V Lifting time: 50s Drum capacity: 5L
