Portable Multi-Functional Crane with Fork / forklift Suitable for small cargo loading and unloading trucks
Multifunctional small lift stacker truck Advantages:
1. Small size, easy to handle, suitable for small space and container operation,
2. DC motor drives, safe and saves manpower.
3. This forklift can load and unload container cargo along with the cargo and pallets, and can be loaded into containers or trucks by itself.

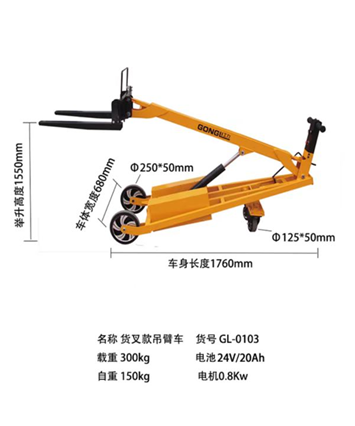

| Model: GL-0103 | |
| Rated load: 300kg | ||
| Overall length(without fork): 1760mm | ||
| Overall height(after folding): 400mm | ||
| Maximum height of lift fork: 1550mm | ||
| Minimum height of fork off the ground: 65mm | ||
| Single fork size: 575*70mm | ||
| Fork outer width: 500mm | ||
| Frame outer width: 680mm | ||
| Front wheel: ø250*50mm | ||
| Rear wheel: ø125*50mm | ||
| Lifting motor voltage and power: 24V0.8KW | ||
| Charger: 220V/24V/5A | ||
| Charging time: 5H | ||
| Battery: lead acid battery 24V/20AH | ||
| Product Weight: 150kg | ||
| Outer box size: 1760*760*400mm | ||

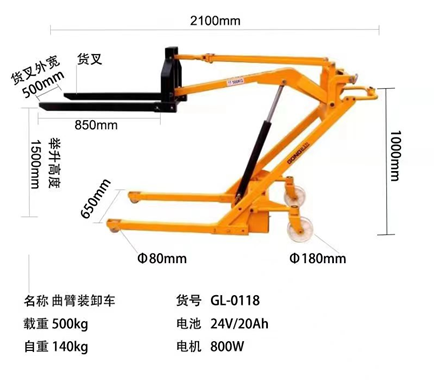

| Model: GL-0118 | |
| Rated load: 500kg | ||
| Overall length: 2100mm | ||
| Overall width: 650mm | ||
| Overall height: 1000mm | ||
| Load center: 400mm | ||
| Maximum height of lift fork: 1500mm | ||
| Minimum height of fork off the ground: 65mm | ||
| Single fork size: 850*100mm | ||
| Fork outer width: 500mm | ||
| Frame outer width: 650mm | ||
| Front wheel: ø80*70mm | ||
| Rear wheel: ø180*50 | ||
| Lifting motor voltage and power: 24V0.8KW | ||
| Charger: 220V/24V/5A | ||
| Charging time: 4H | ||
| Battery: lead acid battery 24V/20AH | ||
| Product Weight: 140kg | ||
| Outer box size: 1660*660*410mm |
