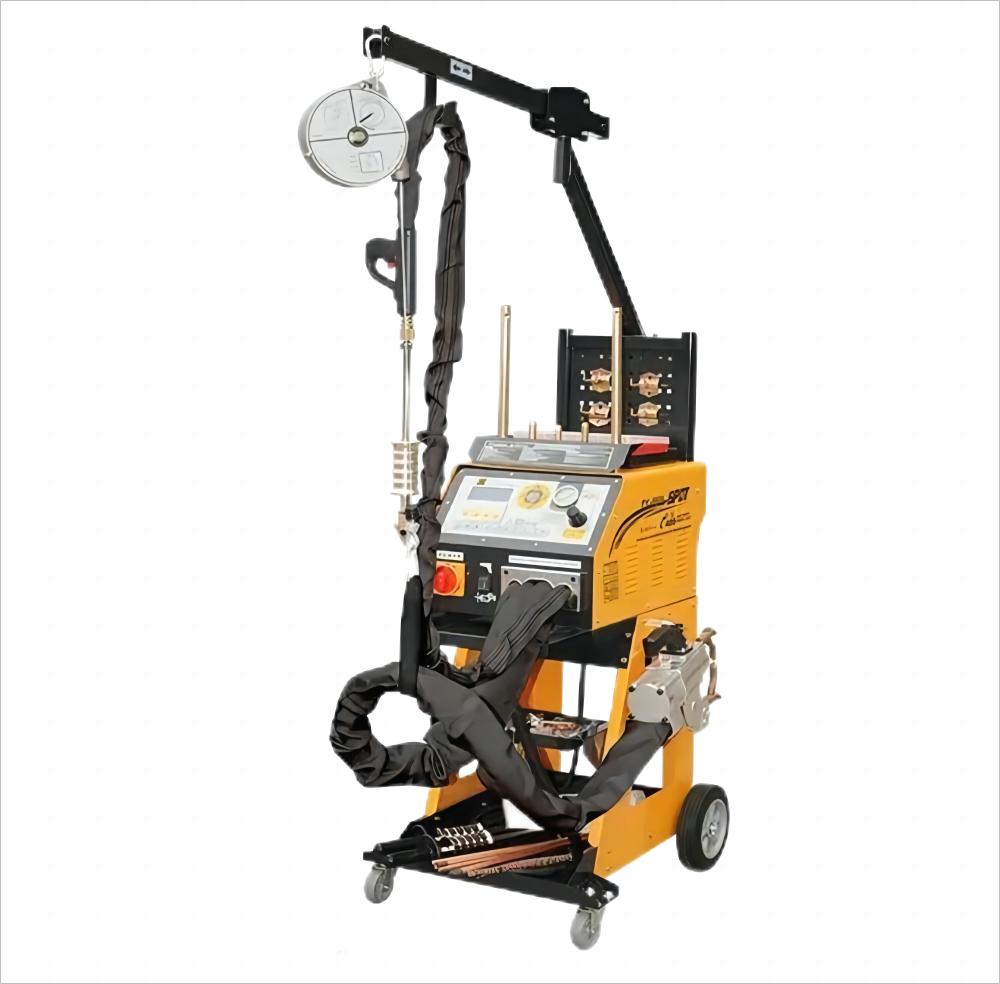

Double Spot welding machine For Iron

This product is revolutionary compared to others in the industry. With advanced and innovative technology, the operating voltage is compensated automatically. When the welder is connected to an AC380V power supply, the system compensates for variations of the main supply voltage and ensures a constant current level to achieve a high quality performance. The large digital graphic LCD display with blue backlight is easy to learn and read. A uniquely designed gun cable support arm allows flexible movement with 360� rotation and a stepless current control ensures the stability of the current in different welding conditions. This unit is equipped with an efficient integrated circuit that produces an accurate readout. A variety of extension arms is designed to accommodate any welding job. With 10 preset weld programs and 60 built-in memory functions, this unit is an excellent choice for body repair work and spot welding tasks




1. Automatic mains voltage monitoring

2. Overheating protection

3. Designed for dent pulling of different kinds of car steels such as conventional steel and stainless steel

4. With HUA curved silicon steel sheet and energy efficient main transformer

5. With DELIXI, OMRON and PANASONIC high quality relay

6. High precision time adjustment system

7. Equipped with switchable spot gun and multifunctional puller

8. Uniquely designed gun cable support arm allows flexible movement with 360�rotation

9. Complete with air filter and pressure regulator

10. Stepless current and time regulation

11. Single-sided and double-sided welding

12. Digital graphic LCD display

13. 10 preset weld programs

14. 60 memory functions

15. Electrodes of C-type gun can be step-by-step opened and quadratic rapid closed (X-type gun is available as an option)

16. Variety of welding procedures are available such as shrinking, washer, direct-pulling, spot welding, flattening, waveform wire, stud welding, OT washer and triangle washer
