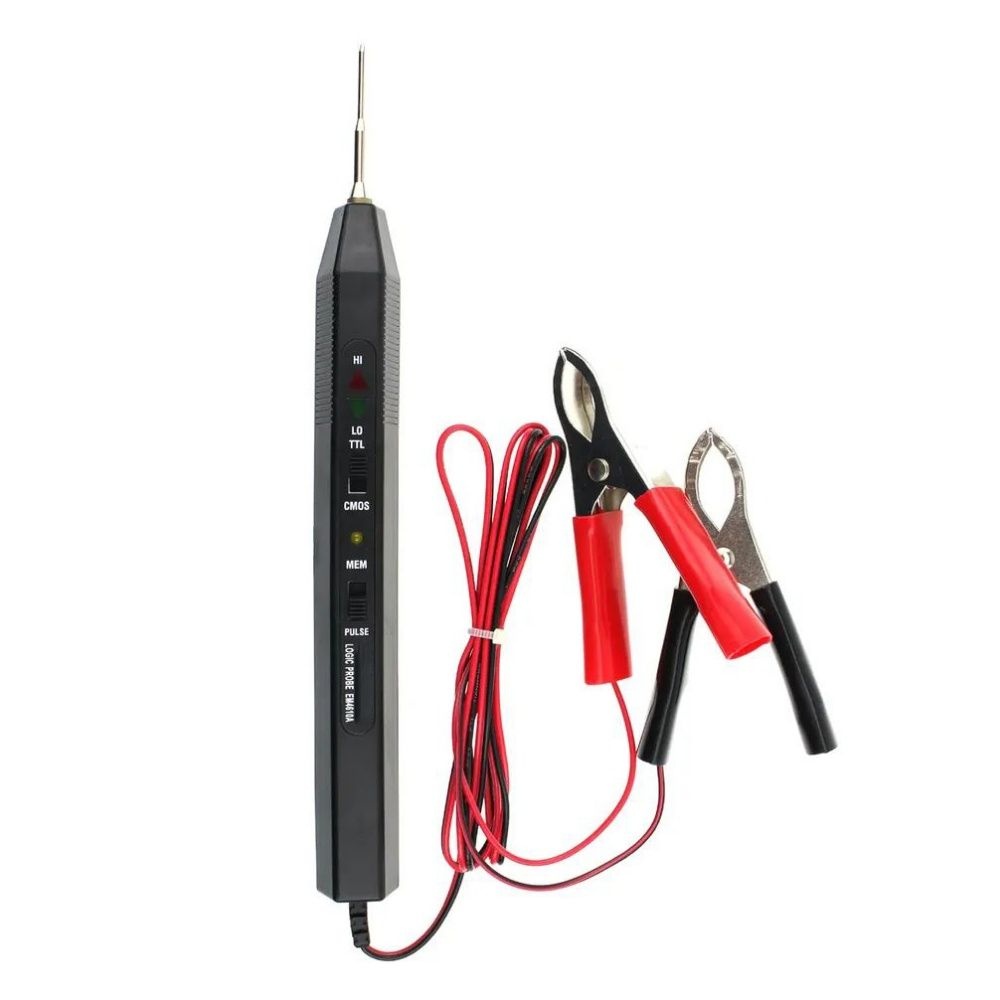

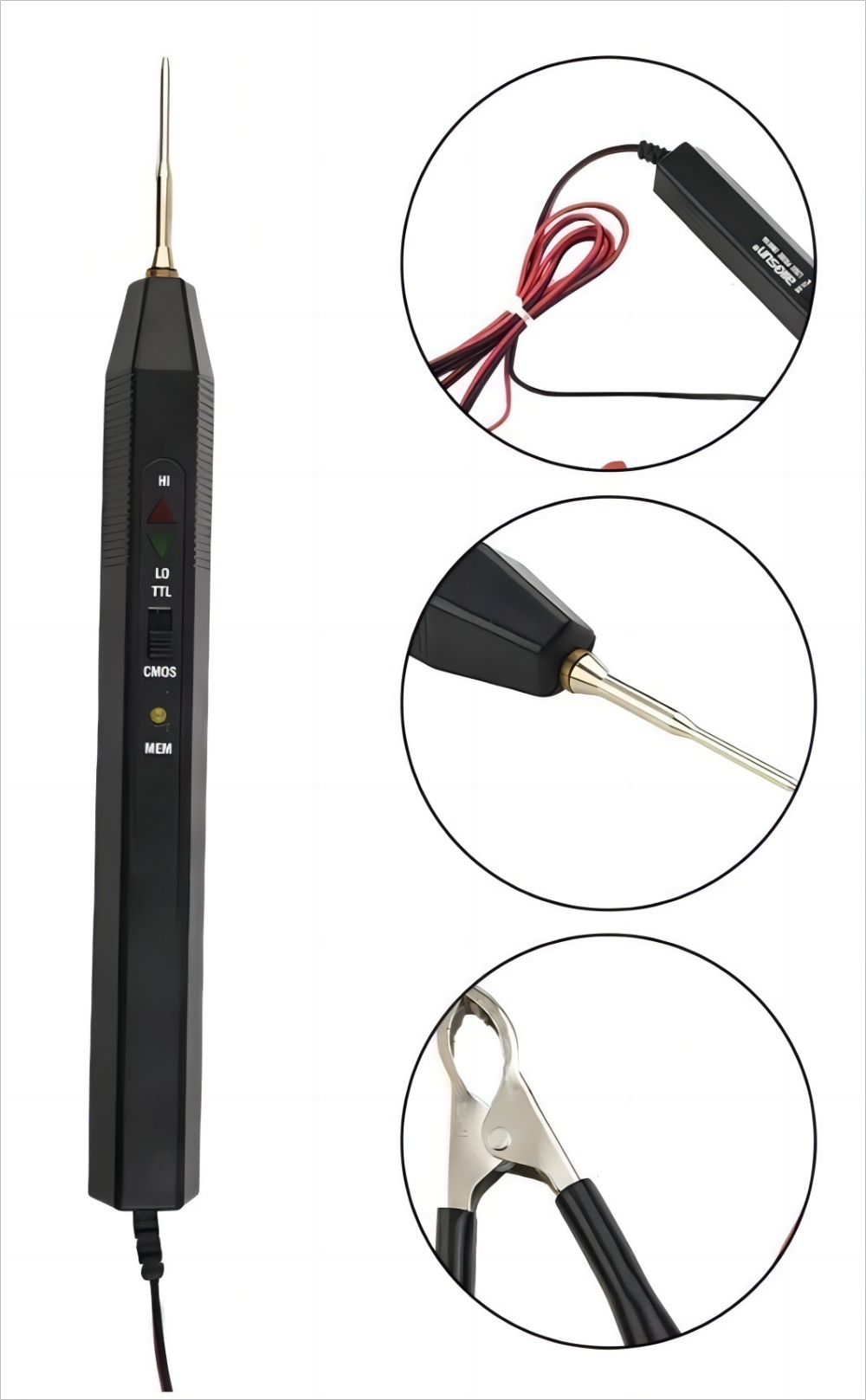

Logic Probe
Electrical Circuit Testers Logic Probe Logic Troubleshooting Tester Instrument with Visual and Audio Indicator
Quantity
Description
This unit is a logic troubleshooting instrument which gives visual (LED light) and audio indications for logic levels and pulses.
It can also capture positive or negative events as short as 30 nanoseconds.
It can also capture positive or negative events as short as 30 nanoseconds.
Features
1, The unit is powered by the circuit under test. (Power supply by 5 to 15V battery)
2, This logic Troubleshooting instrument will give visual (LED light) and audio indications for logic levelsand pulses
3, lt can also capture positive or negative events as short as 30 nanoseconds
Specification
| Power Supply | 5~15V dc |
| Power Supply Protection | 20VDC/VAC |
| Maximum Input Voltage | 40VDC/VAC(duration ;15 seconds) |
| Maximum Input Signal Frequency | 20MHz |
| Input Impedance | 1MΩ |
| Pulse Indicator Flash Time | 500mS |
| Operating Temperature | 0~40℃, relative humidity<80% Storage Temperature |
| Size | 203x21x20mm(for main body only) |
| Weight | about 50g |
