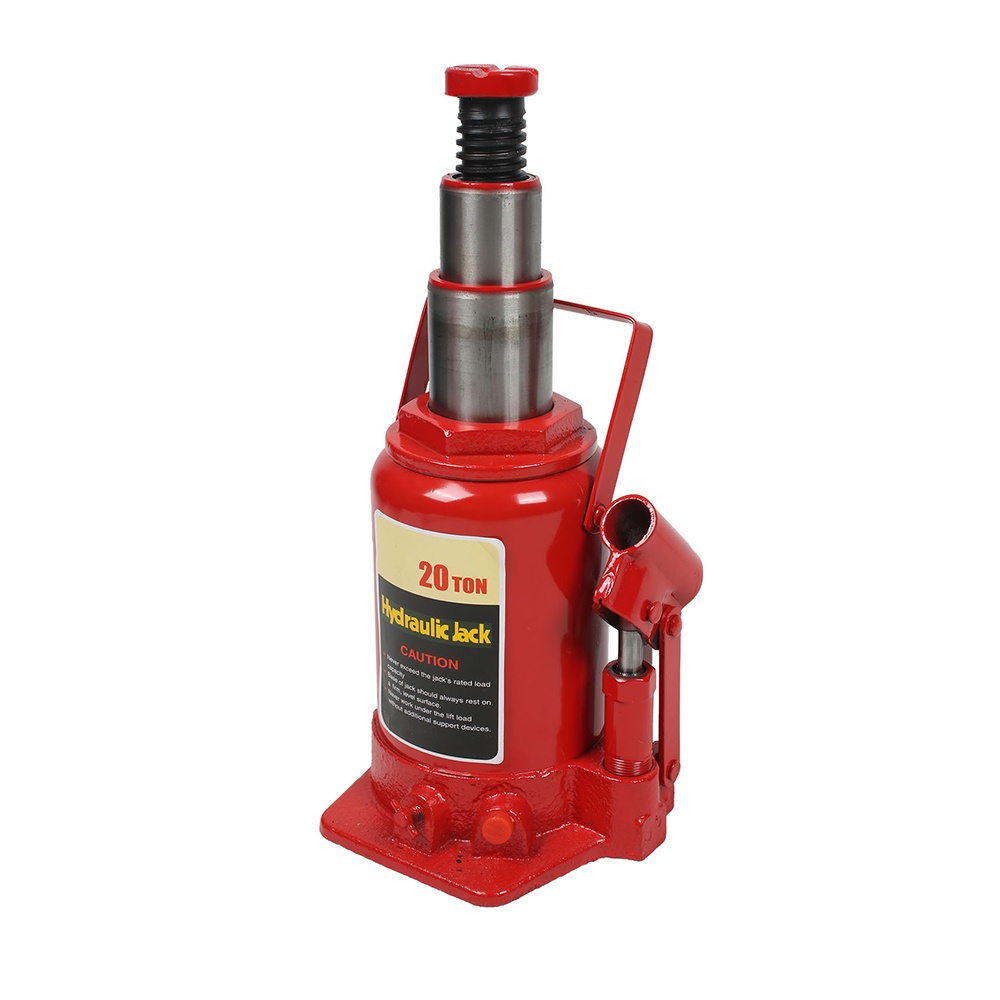

Double Stages Bottle Jacks
11022~11027
Hydraulic bottle jack designed for residential and commercial use
Dual-stage, steel hardened rams allow for longer travel
Quantity
Description
Double Stages Bottle Jacks
Features
Hydraulic bottle jack designed for residential and commercial use
Dual-stage, steel hardened rams allow for longer travel

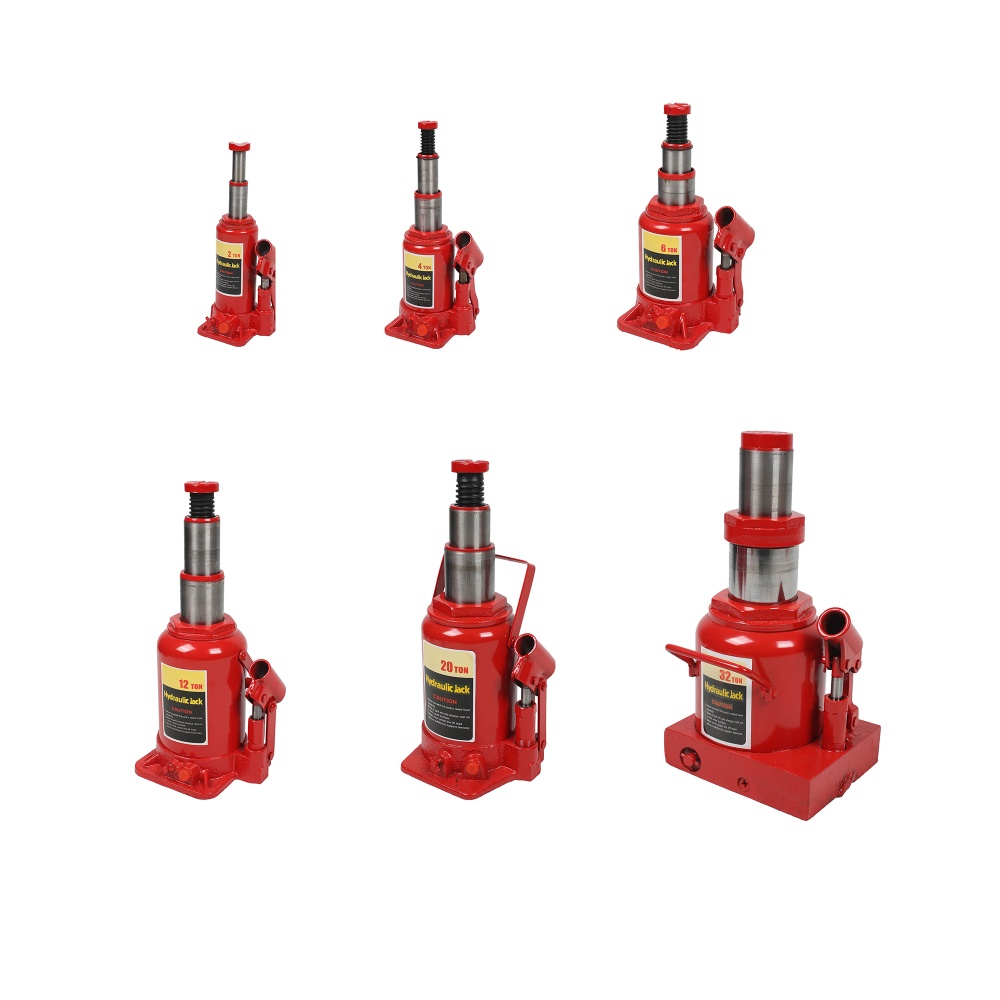

Specification
Item No. | Capacity (ton) | Min.H/Max.H (mm) | Lifting H (mm) | Adjust H (mm) | NW/GW (kg) |
11022 | 2 | 180/400 | 220 | / | 3.5 |
11023 | 4 | 160/370 | 170 | 50 | 4.8 |
11024 | 6 | 160/370 | 170 | 50 | 5.6 |
11025 | 12 | 220/470 | 190 | 60 | 9.5 |
11026 | 20 | 235/490 | 190 | 60 | 13 |
11027 | 32 | 235/415 | 180 | / | 17 |
