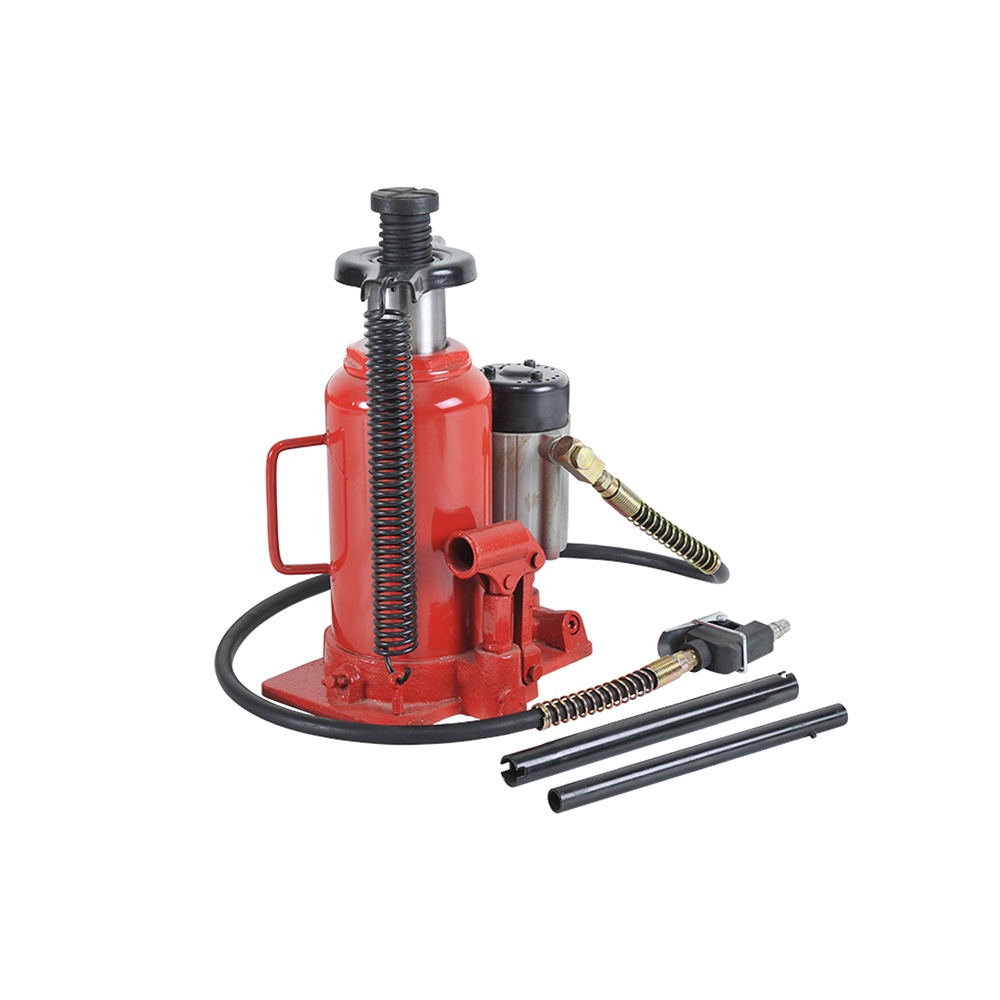

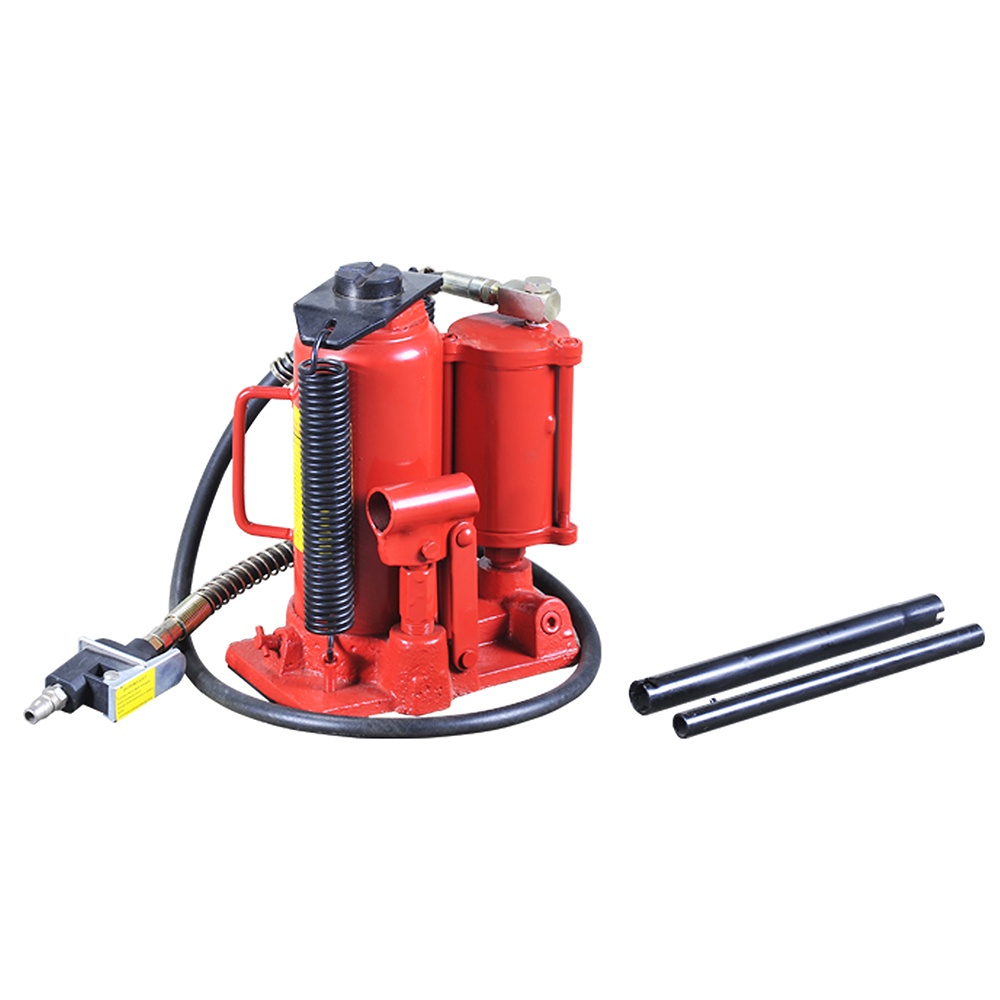

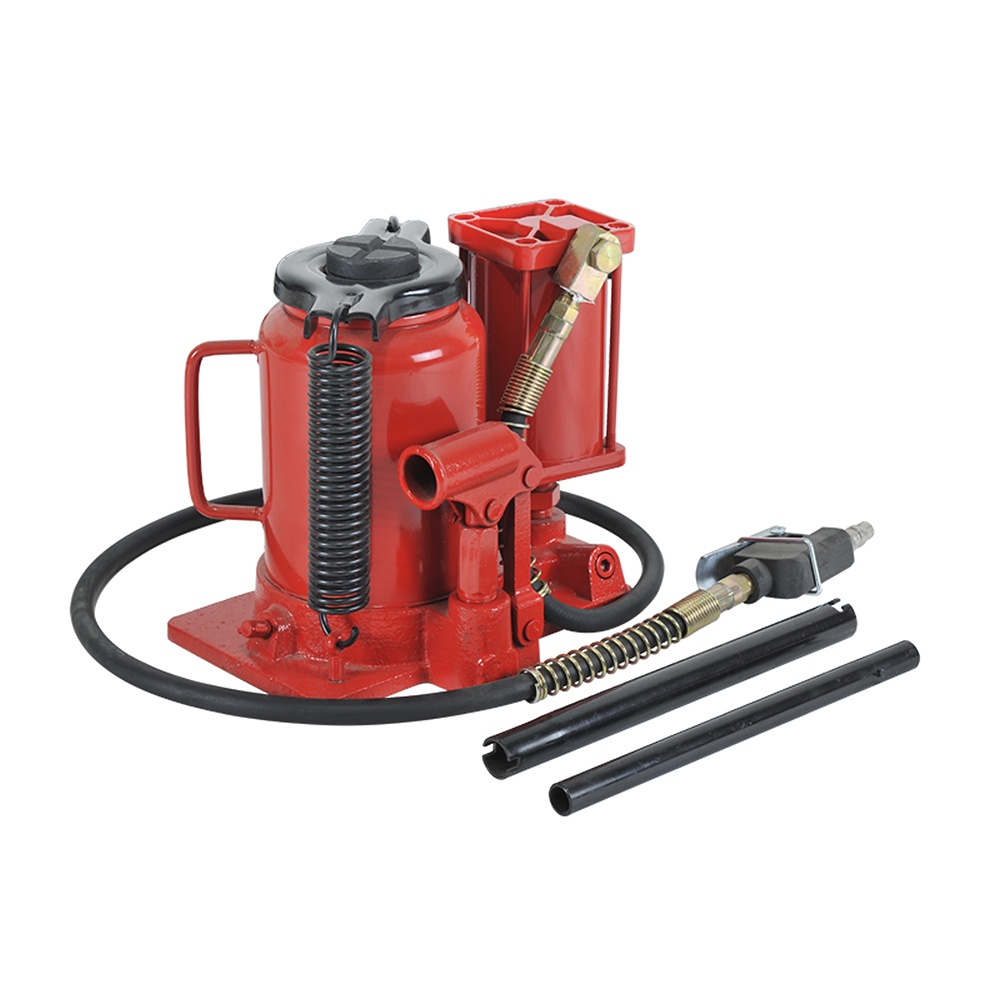

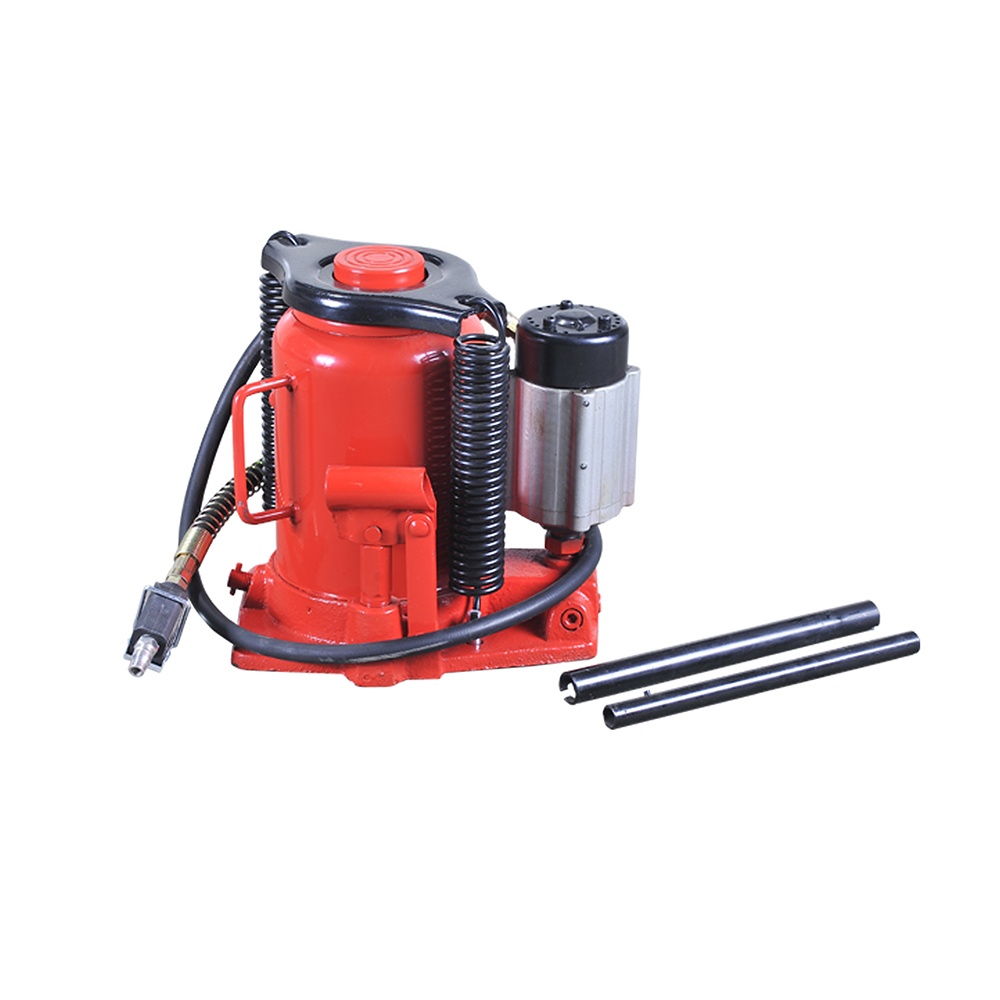

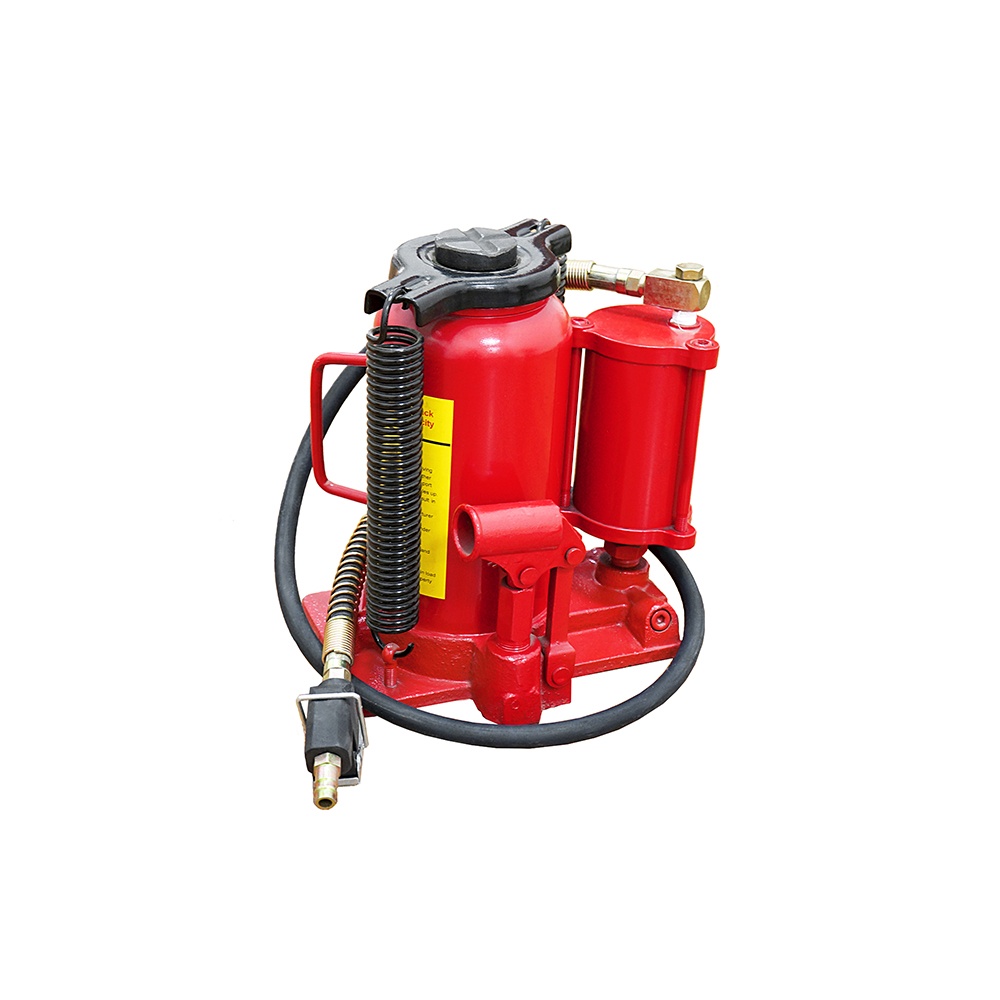

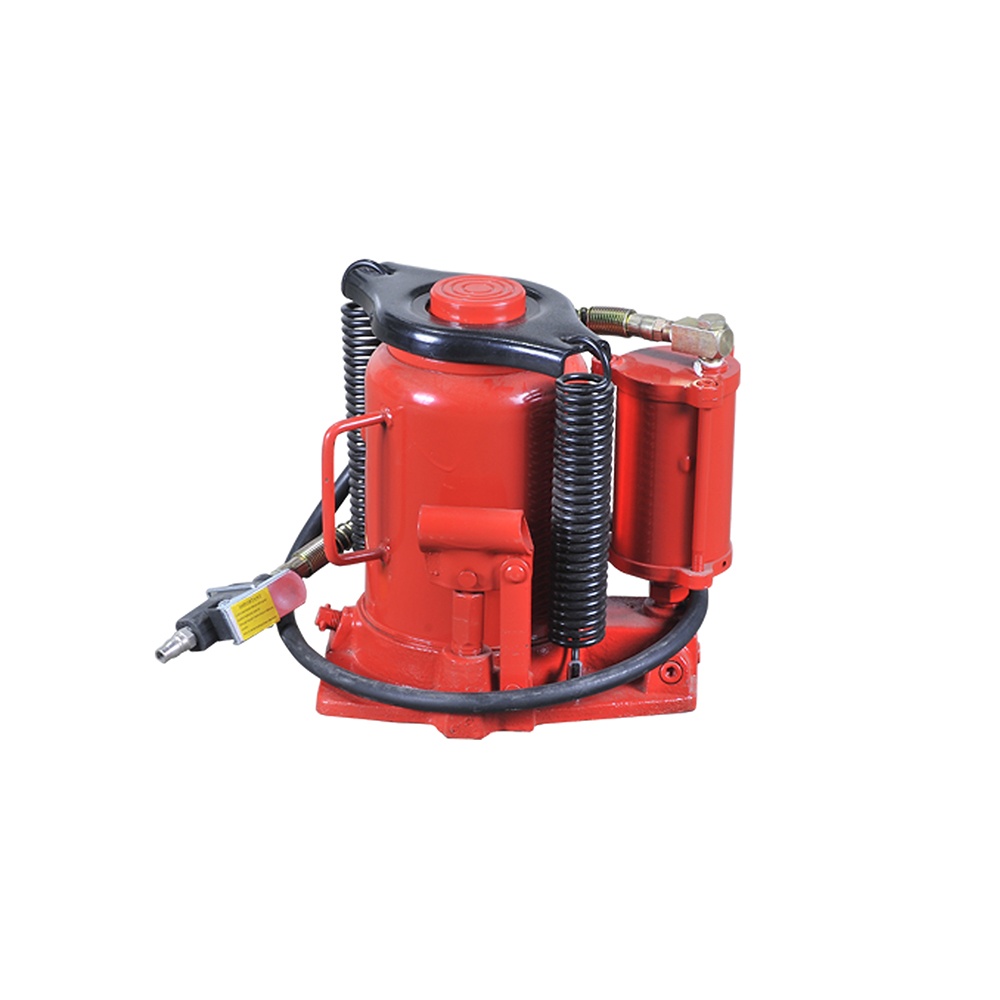

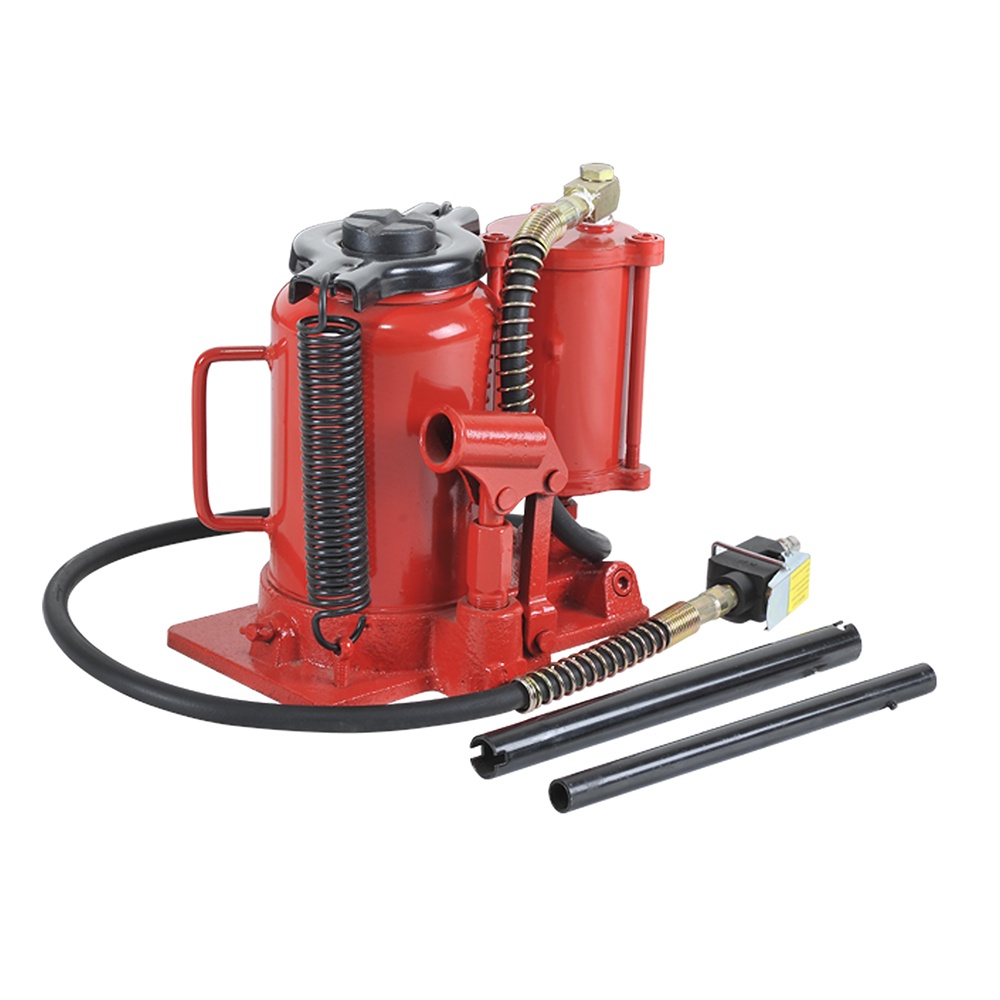

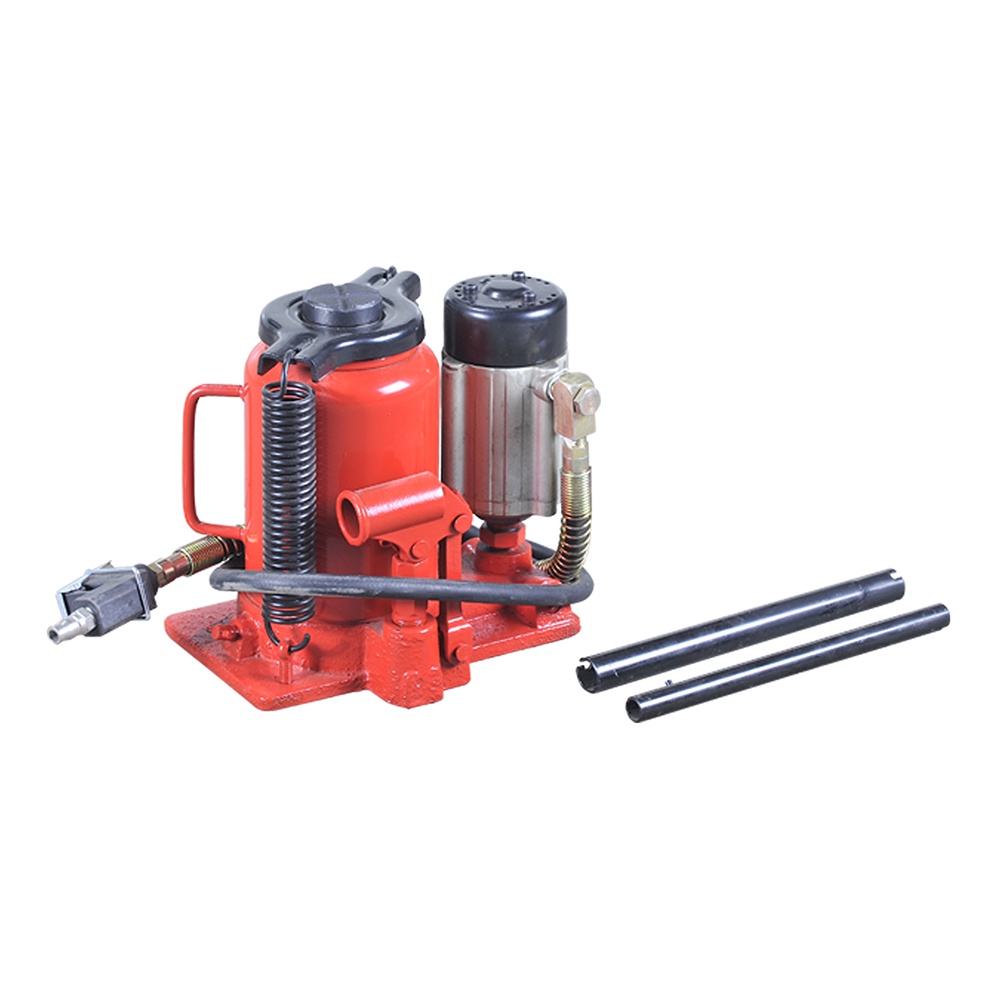

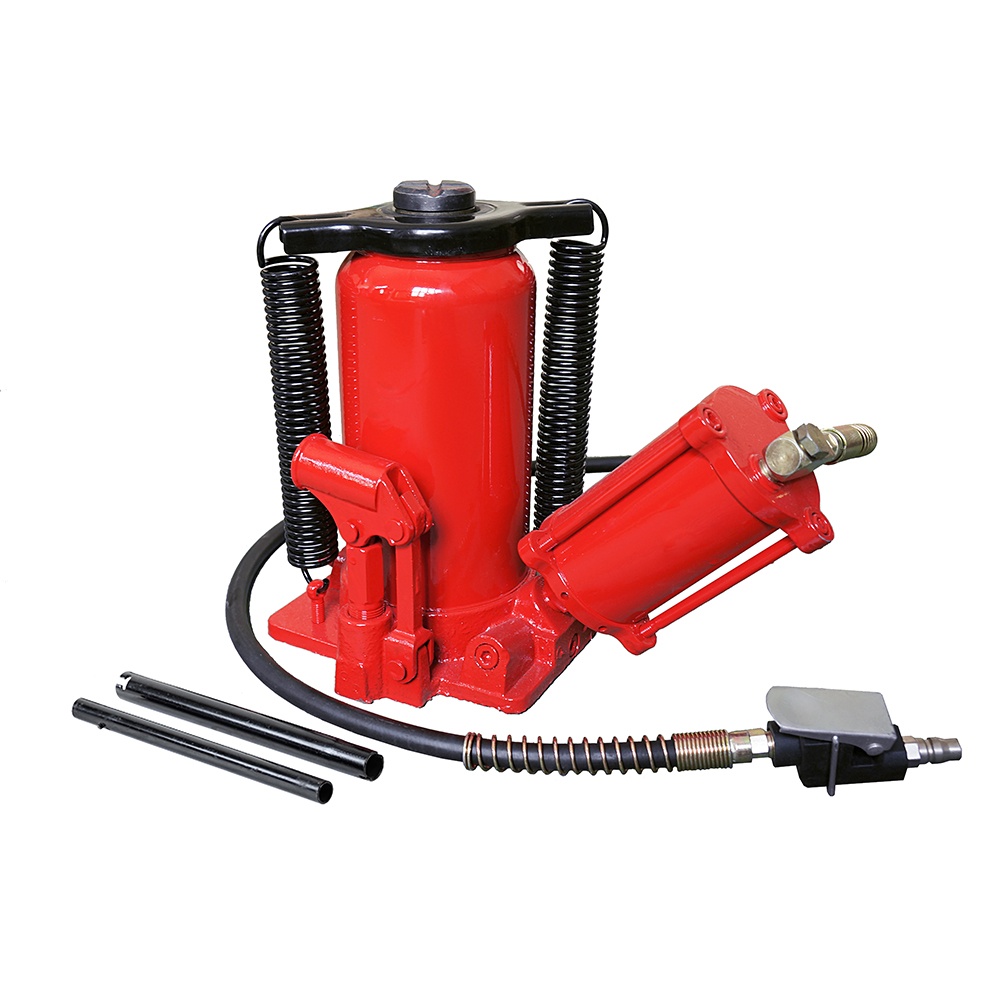

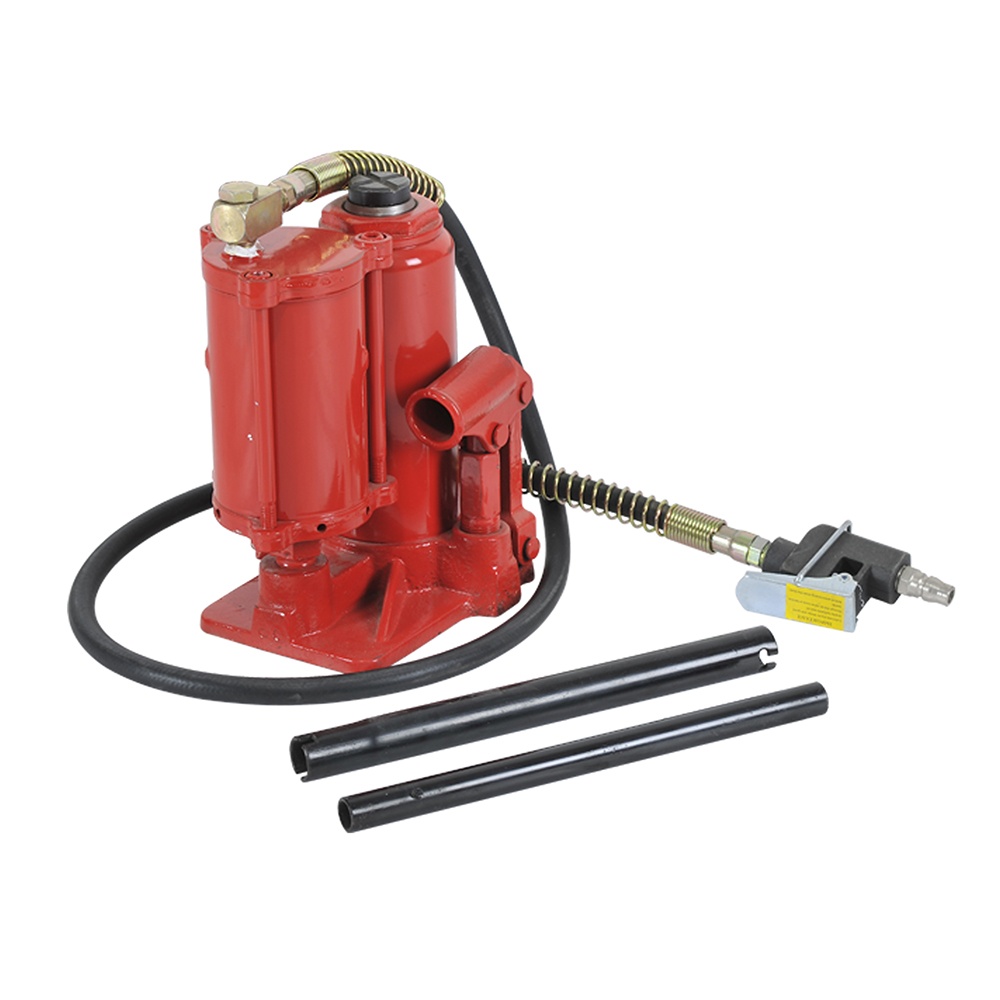

Hydraulic Air Bottle Jack
The jack can be used in two operations: air or hydraulic
Heat treated extension screw allows low pickup neigntadjustment and maximum lift height.
High quality air pump for longer lift.
The hardened,machined and polished ram and plungeralows for smooth opration.
A wide base provides stability and strength.
Quantity
Description
Features
The jack can be used in two operations: air or hydraulic
Heat treated extension screw allows low pickup neigntadjustment and maximum lift height.
High quality air pump for longer lift.
The hardened,machined and polished ram and plungeralows for smooth opration.
A wide base provides stability and strength.
Specification

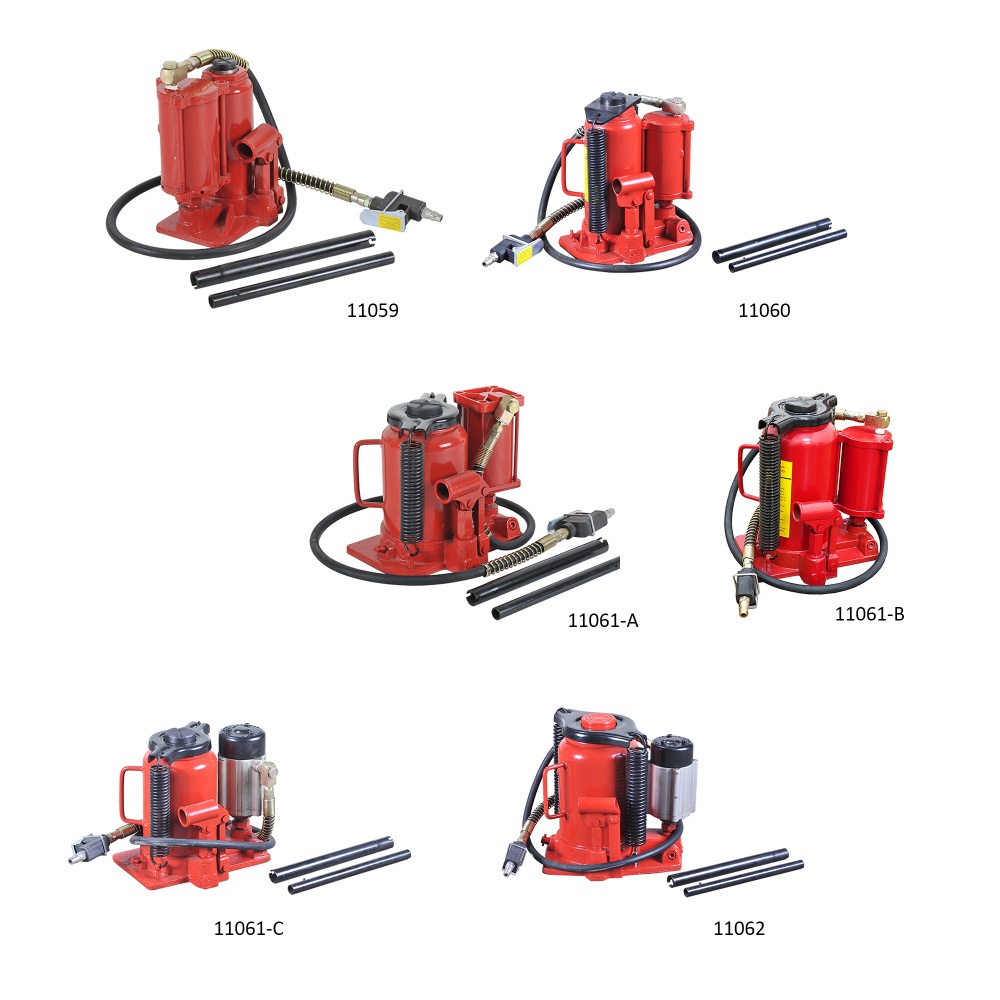

Item No. | Capacity (ton) | Min.H/Max.H (mm) | Adjust H (mm) | Lifting H (mm) | NW/GW (kg) | Measurement (mm) |
11059 | 5t | 210/430mm | 80mm | 140mm | 7/7.5kg | 200x170x240mm |
11060 | 12t | 250/495mm | 80mm | 165mm | 12/13kg | 240x180x280mm |
11061-20A | 20t | 210/390mm | 80mm | 100mm | 14/15kg | 260x210x230mm |
11061-20B | 20t | 260/510mm | 80mm | 170mm | 15/16kg | 280x200x280mm |
11061-20C | 20t | 220/430mm | 80mm | 130mm | 14/15kg | 260x210x240mm |
11062-30 | 30t | 250/400mm | / | 150mm | 21/22kg | 290x220x270mm |
11062-32 | 32t | 250/400mm | / | 150mm | 21/22kg | 290x220x270mm |
11062-35 | 35t | 250/400mm | / | 150mm | 21/22kg | 290x220x270mm |
