- Place of Origin:CN;ZHE
- Motor Power:2.4/3.0kw
- Operating Pressure:1.5kw
- Power Supply:110V/220V/380V
- Brand Name:WISN
- Model Number:14049
- Warranty:1 Year
Operating Pressure | 130-150bar |
Max.Wheel Diameter | 2300mm |
Max.Wheel Width | 1100mm |
Max.Wheel Weight | 1800kg |
Noise | <75dB |
Rim Diameter | 14"-46" |
With Extension Jaws | 46"-56" |
Hydraulic Pump Motor | 1.5kW 380V-3Ph50Hz |
Gearbox Motor | 2.4/3.0kW 380V-3Ph50Hz |
Net Weight | 987kg |
Gross Weight | 1248kg |
Packing dimension | 2280*2070*1071mm |
Volume | 5m³ |
Quatnity in 20"Container | 4 |
Quatnity in 40"Container | 10 |
Features:

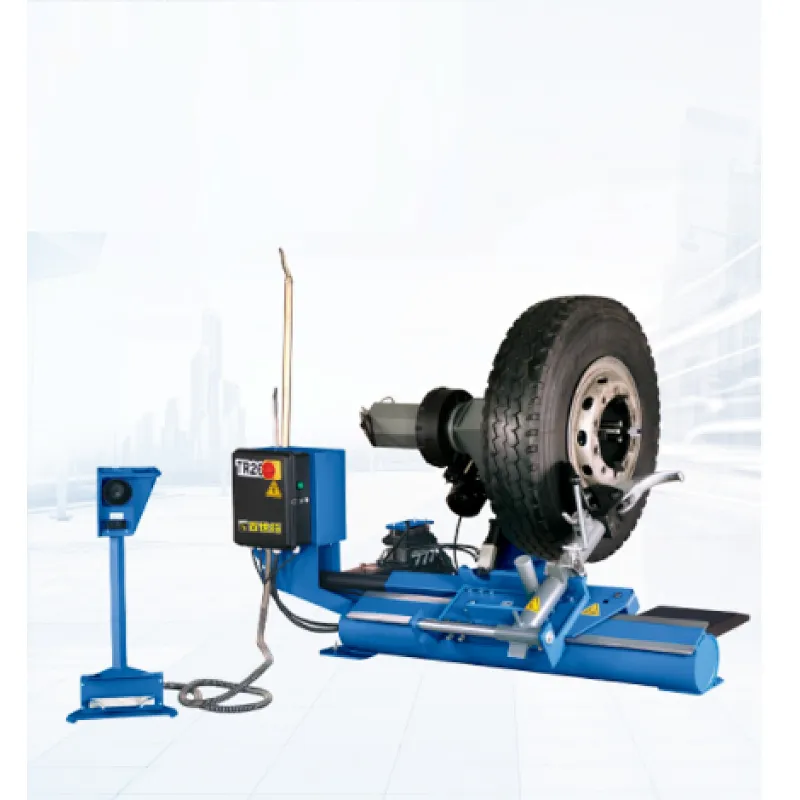

1. Automatic horizontal type truck tyre changer, used for buses, truck,agriculture vehicles, and engineering vehicles. It can operate on the tubeless tyre and the tyre with pressure ring.
2.Equipped the shifting plate with hydraulic drive which makes the tyre move auto.The oil cylinder of the lifting arm is center support, equipped with safety switch which can make the tyre lifting safer.
4.The tool arm and mounting head is made of special material which can avoid distortion when operating large tyre. The mounting head design wiht excellent angle. It can make the operation easier.
