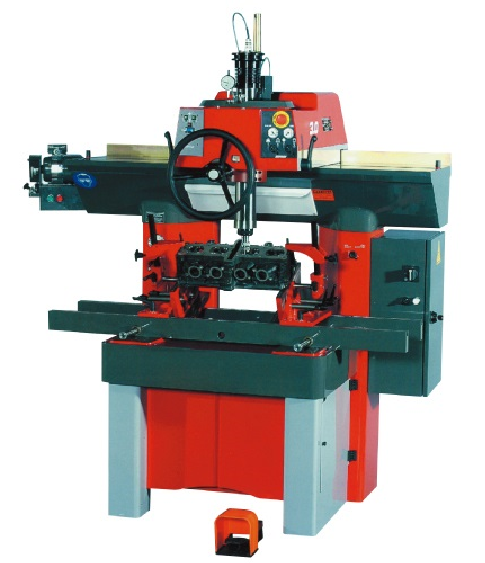

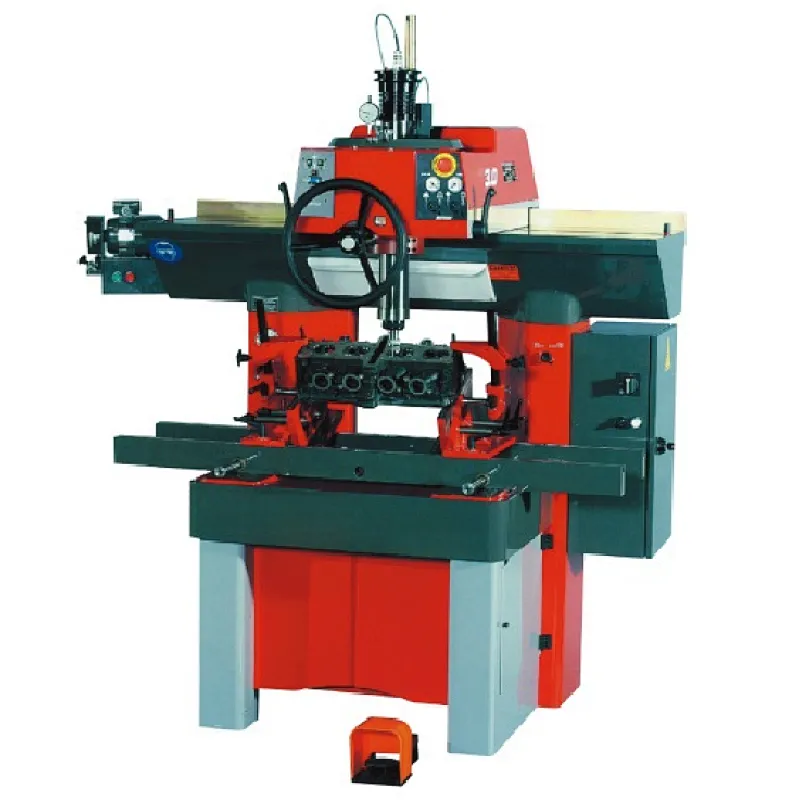

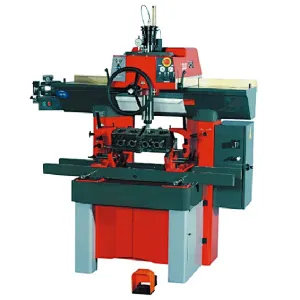

Valve Seat Boring Machine

Valve Seat Boring Machine

Model NO.:21001/2
  • DeliveryFOB
  • Minimum order quantity2 pieces
  • Supply Ability2000 pieces / Month
  • Country of OriginShanghai Or Ningbo
  • Stock Time30 Days (Details According To Customers Order.) Days
    • Place of Origin:CN;ZHE
    • Brand Name:WISN
    • Certification:CE
    • Condition:New
    • Weight:1050kgs
    • Model Number:21001/2
    • CNC or Not:CNC
    Product Name : Valve Seat Boring Machine

    Features :

    Item No.2100121002
    Boring Diameter14-90MM10-120MM
    Max. size for cylinder head (LXWXH)1200*500*450MM1200*4500*450MM
    Motor Power 1800W/380V1800W/380V
    Spindle speeds100-1200RPM0-100RPM
    Spindle travel 200MM200MM
    Plate longitudinal travel 40MM40MM
    Clamper swing angle +42'--15'+42'--15'
    Air Supply press6bar6bar
    Net Weight 1050kgs1500kg
    Overall size (LXWXH)1440*1050*21701750*1150*2200

    ®High precision valve seat and valve guide cutting machine especially designed for multi-valve cylinder heads .

    ®Patented workhead with triple air-float patented centering system and built -in spindle motor.

    Related Products:

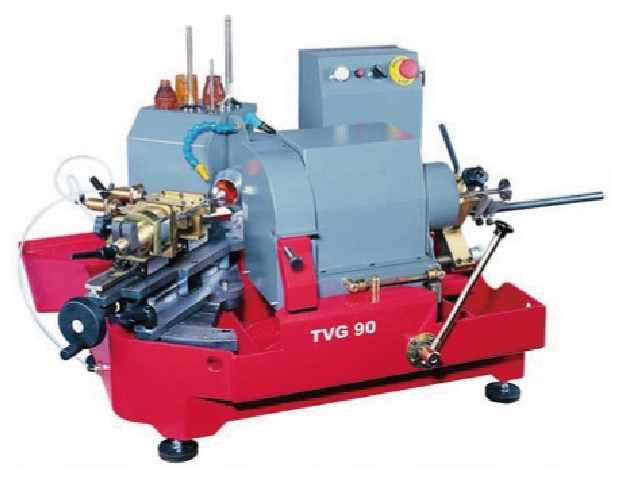

    Valve Grinder:21003


    Universal Workstation:21004
