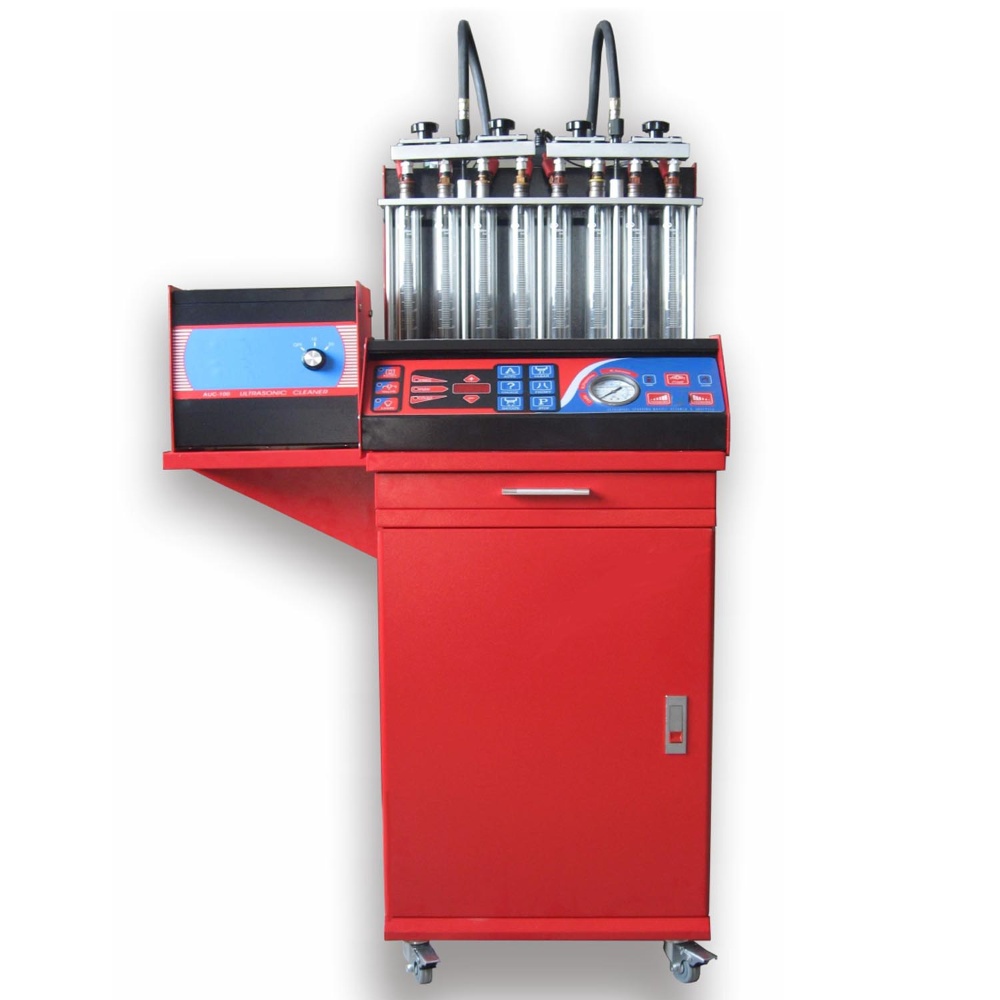

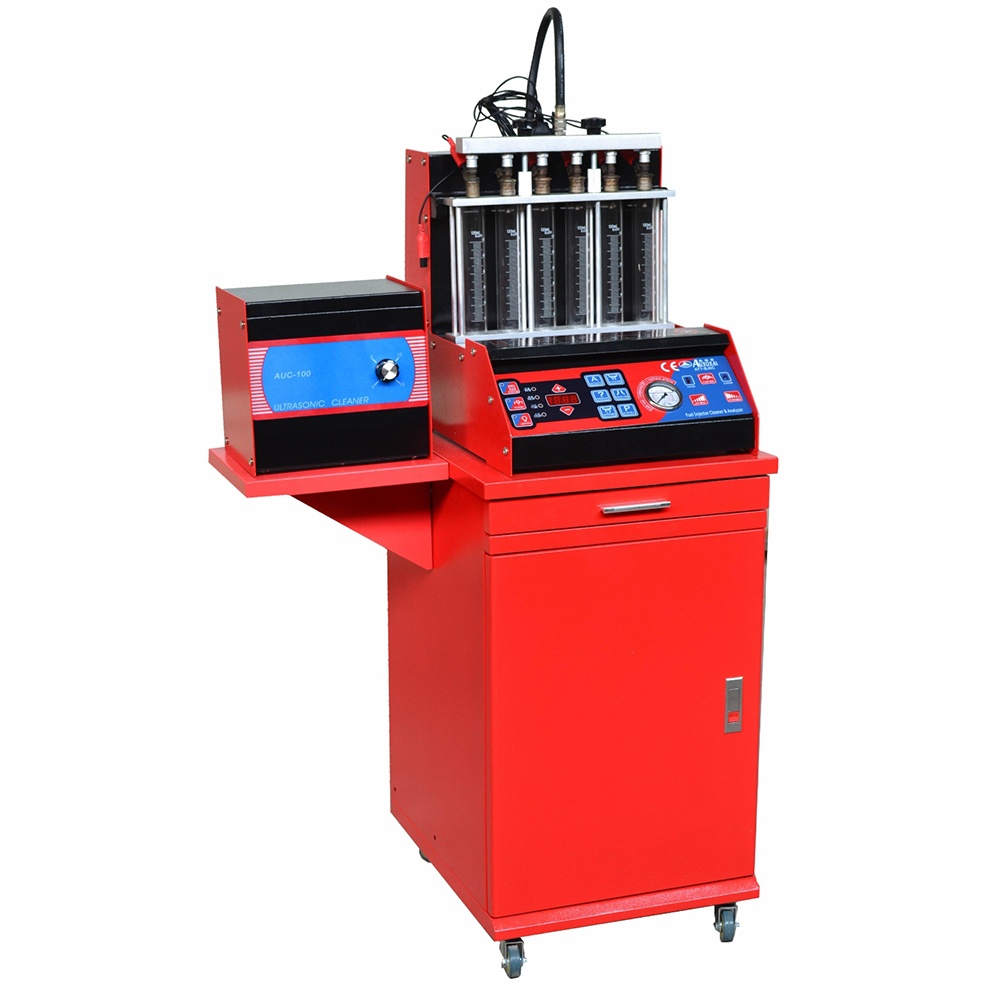

Fuel Injector Analyzer & Cleaner for 4/6/8 Cylinder
Simulate the running state of fuel injector to diagnostic fault
Test the injector seal ,angel, atomization, volume and uniformity
Suit to test the high/low resistance, voltage/current injectors
RPM varies inversely to pulse width, Dynamic observation of the injector condition
Infinitely variable regulation of pressure insure the stability and accuracy
Automatic oil return device, easy to operate
Automatic protection pump function in case of lacking fluid or on standby

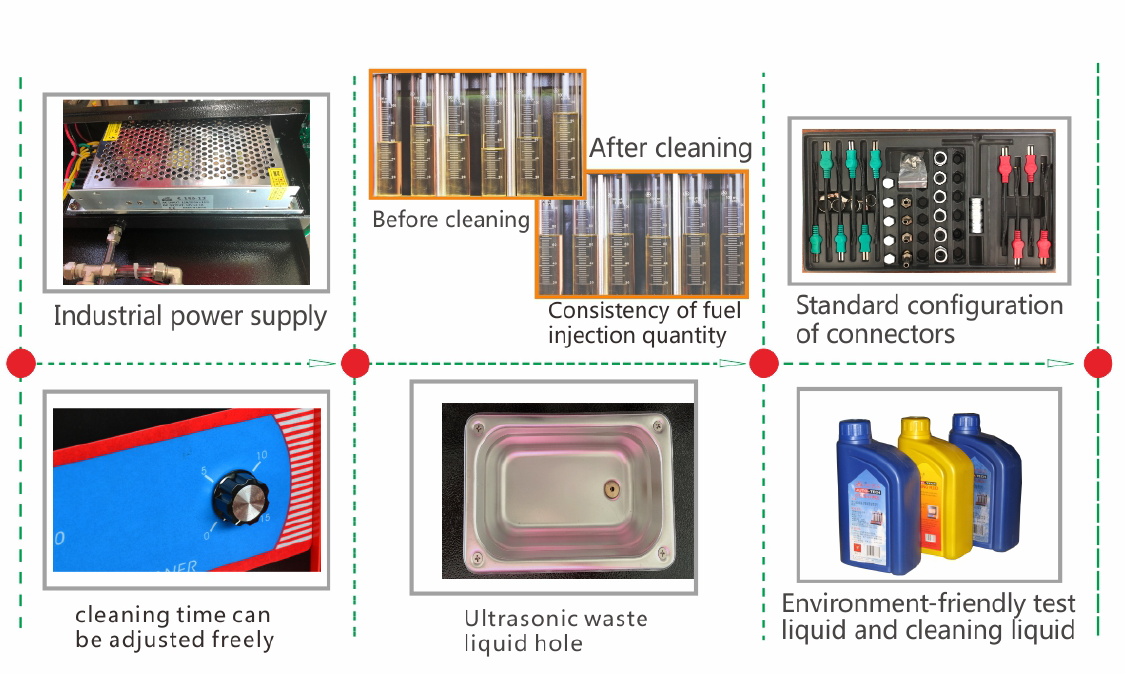

Adopt environment-friendly high-frequency ultrasonic for strong cleaning
The cleaning time can be adjusted freely to prevent the vibrator from being damaged
Fit the discharge tap of ultrasonic cleaner
Quantity
ltem No.
Description
Fuel Injector Analyzer & Cleaner for 4/6/8 Cylinder offers precise testing of injector seals, spray angle, atomization, flow volume, and uniformity. Compatible with high/low resistance and voltage/current injectors, it dynamically adjusts RPM inversely to pulse width for real-time diagnostics. Features infinitely variable pressure control, automatic oil return, and pump protection for stability.
Features
Power supply: AC220V+10% 50Hz, 500W
Fuel tank capacity:3.8L
Test tube capacity: 120ml
System pressure: 0-6kg/cm'(variable regulated)
Rotate speed: 0-9950r/min step: 50 r/min
Pulse width: 0-20ms step: 0.1 ms
time: 0-9950 step: 5 s
Count(time) : 0-9950 step: 50
Working temperature: -5°C~40°C
Ultrasonic Cleaner Frequency: 25/40 kc, 80W
Specification
