Home > Products > Pneumatic Tools > Air Compressor Machine
Belt Driven Air Compressor V-Head
Belt Driven Air Compressor V-Head
Belt Driven Air Compressor V-Head
Belt Driven Air Compressor V-Head
Belt Driven Air Compressor V-Head
Belt Driven Air Compressor V-Head
Belt Driven Air Compressor V-Head
Belt Driven Air Compressor V-Head
Belt Driven Air Compressor V-Head
Belt Driven Air Compressor V-Head
Belt Driven Air Compressor V-Head

Belt Driven Air Compressor V-Head

PTC-180|PTC-181|PTC-182|PTC-183|PTC-190|PTC-191|PTC-192|PTC-200|PTC-201|PTC-202|PTC-203|PTC-210|PTC-211|PTC-212|PTC-213|PTC-214

Quantity

ltem No.

Inquiry Basket Consult

Description

Belt Driven Air Compressor V-Head

Features

Belt Driven Air Compressor V-Head


ModelPowerSpeedMax.DeliveryMax.PressureTank VolumeWeight N.W.Dimension
L*W*H
PTC-1802hp/1.5kw910/1050rpm170/200L/min116psi(8bar)100L/25Gallon66kg106*38*78cm

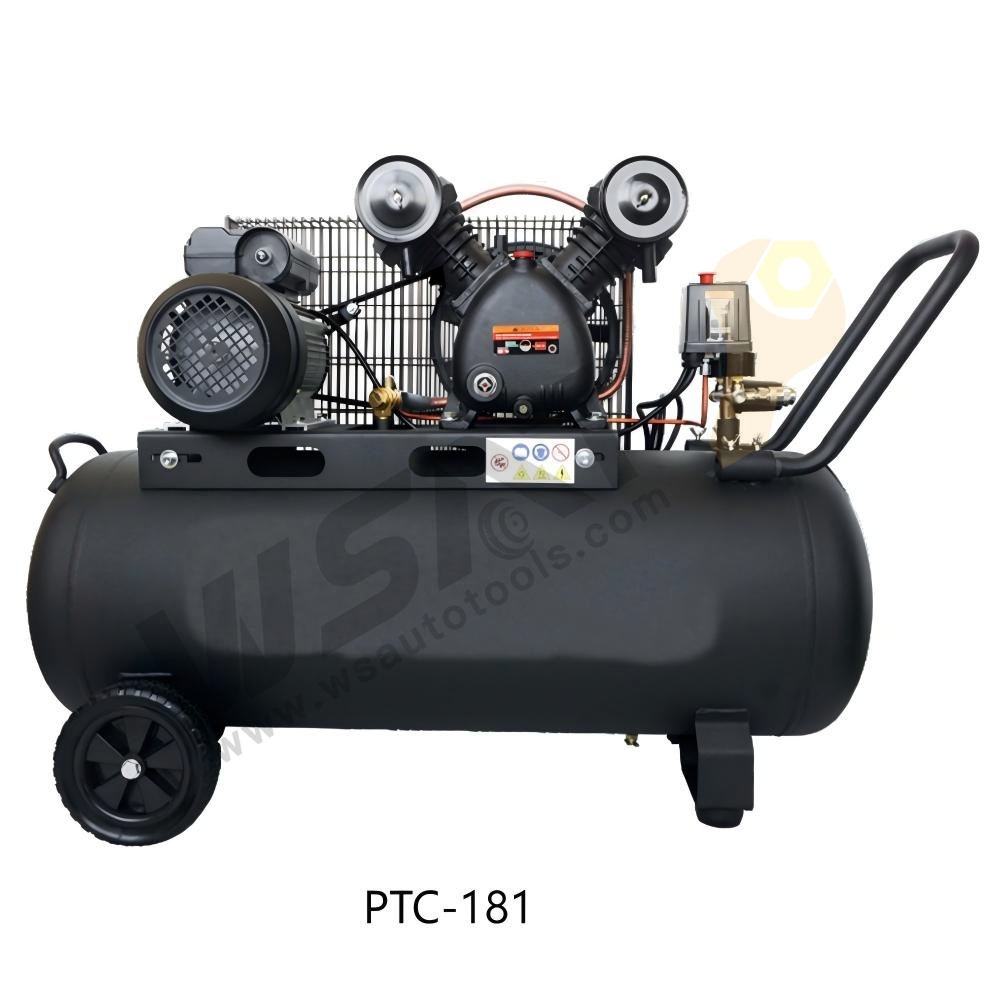

PTC-1813hp/2.2kw820/1050rpm250/320L/min116psi(8bar)100L/25Gallon68kg106*38*78cm

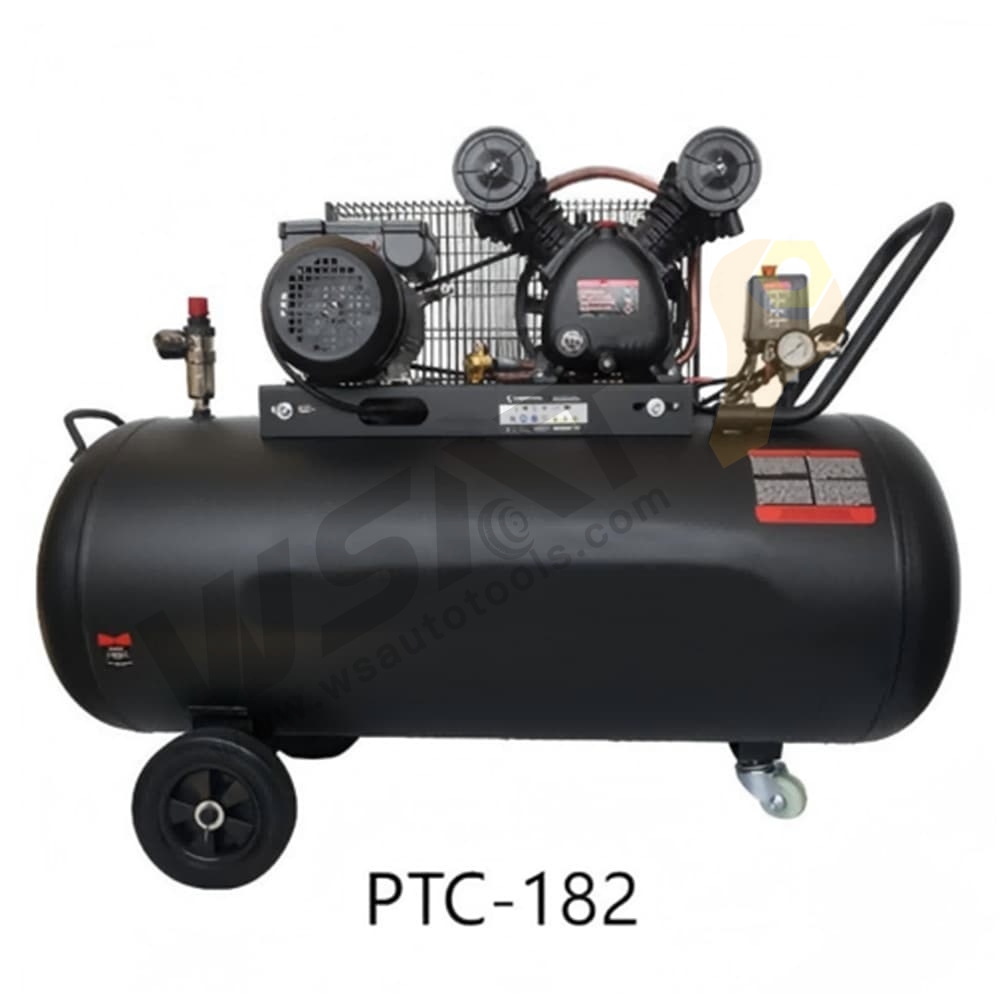

PTC-1823hp/2.2kw820/1050rpm250/320L/min116psi(8bar)200L/50Gallon100kg128*48*90cm
PTC-1833hp/2.2kw820/1050rpm250/320L/min116psi(8bar)300L/75Gallon125kg152*52*95cm

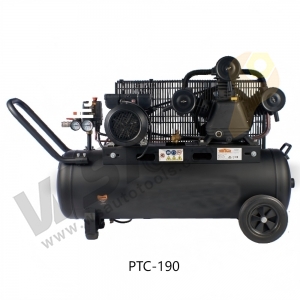

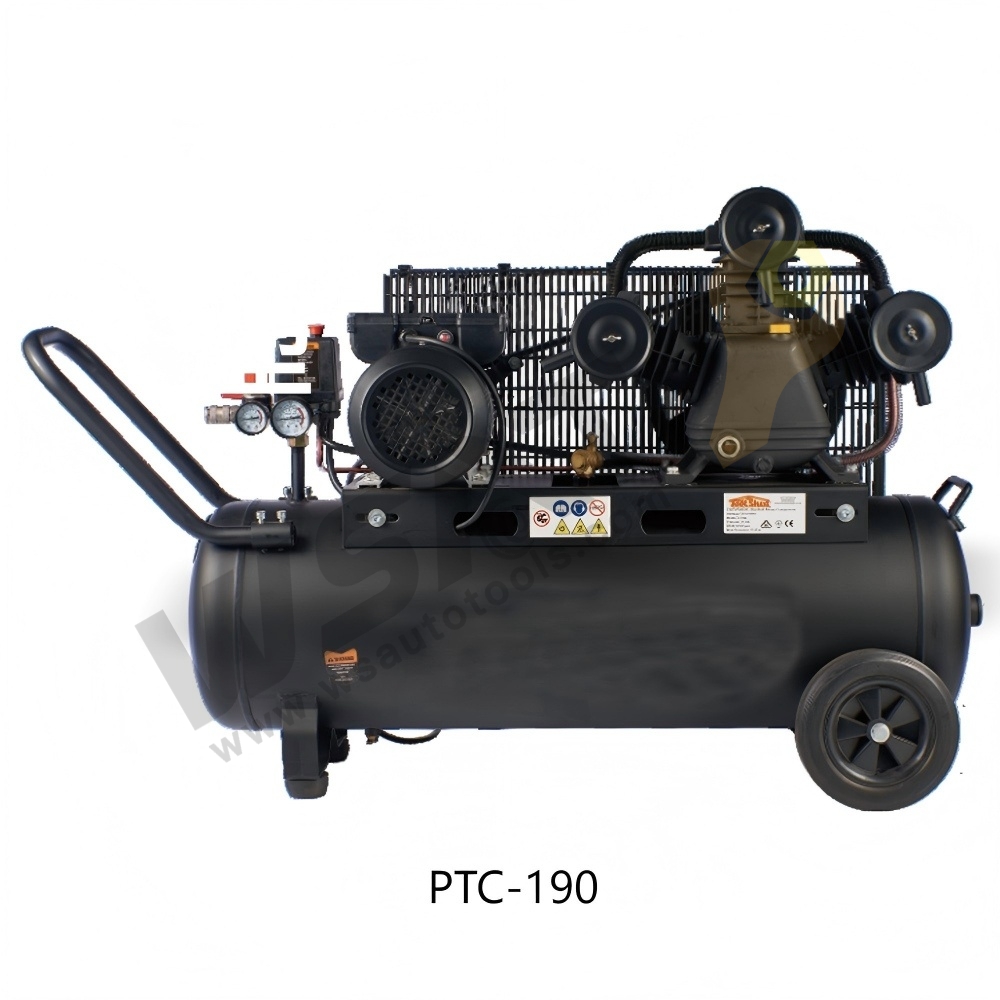

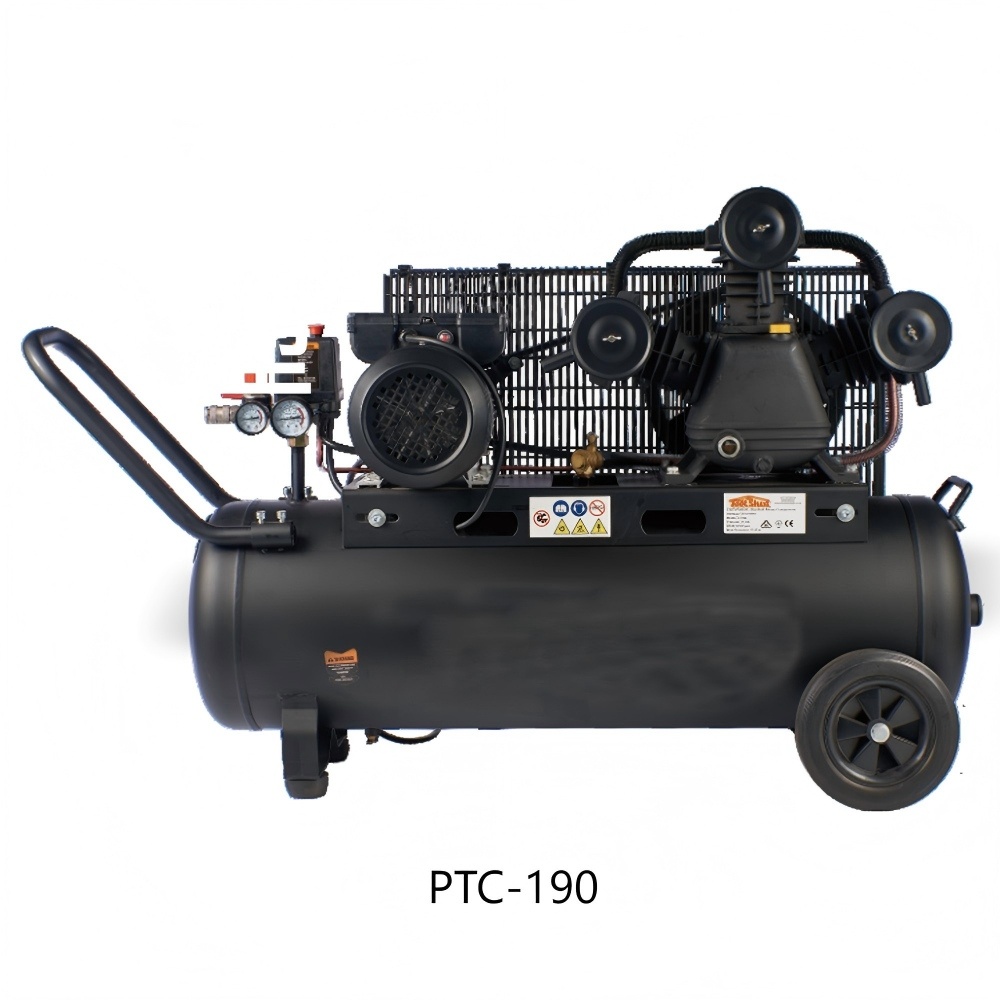

PTC-1904hp/3kw755/980rpm360/468L/min116psi(8bar)100L/25Gallon85kg106*42*78cm

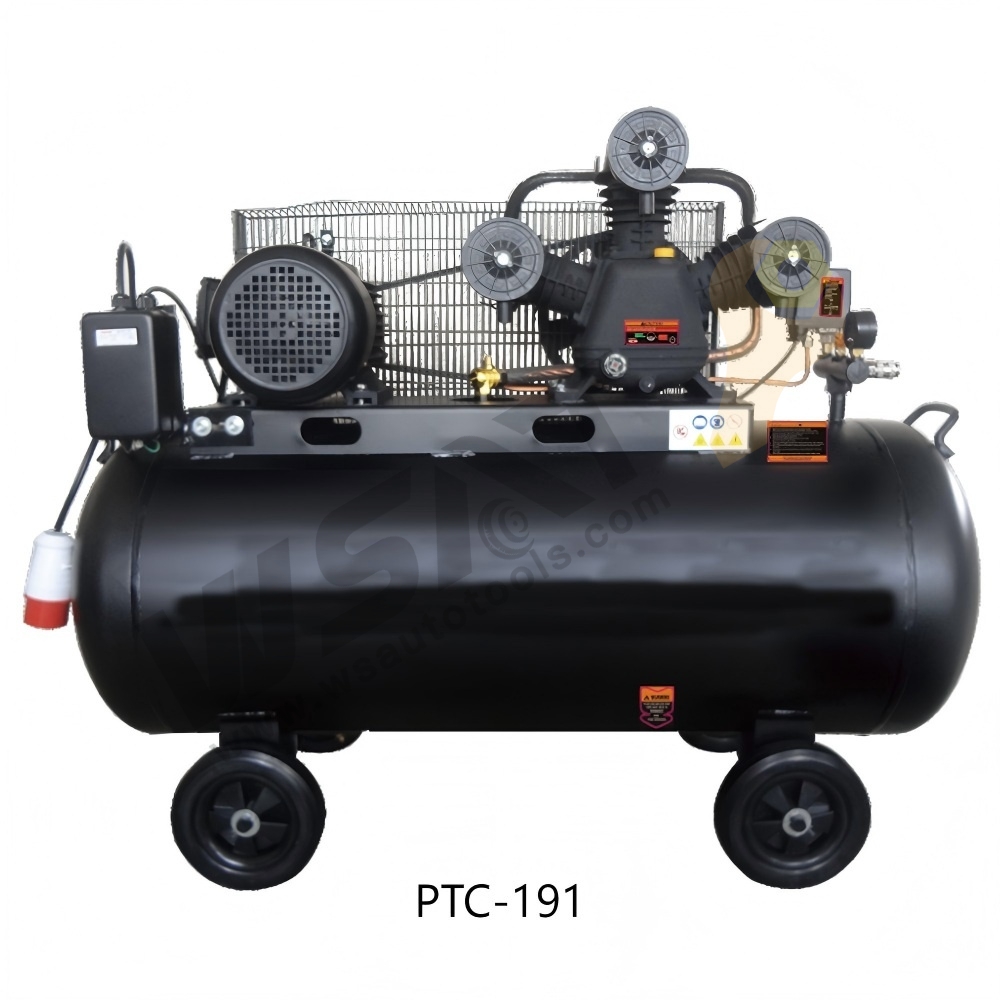

PTC-1914hp/3kw755/980rpm360/468L/min116psi(8bar)200L/50Gallon125kg128*48*90cm
PTC-1924hp/3kw755/980rpm360/468L/min116psi(8bar)300L/75Gallon141kg152*52*95cm

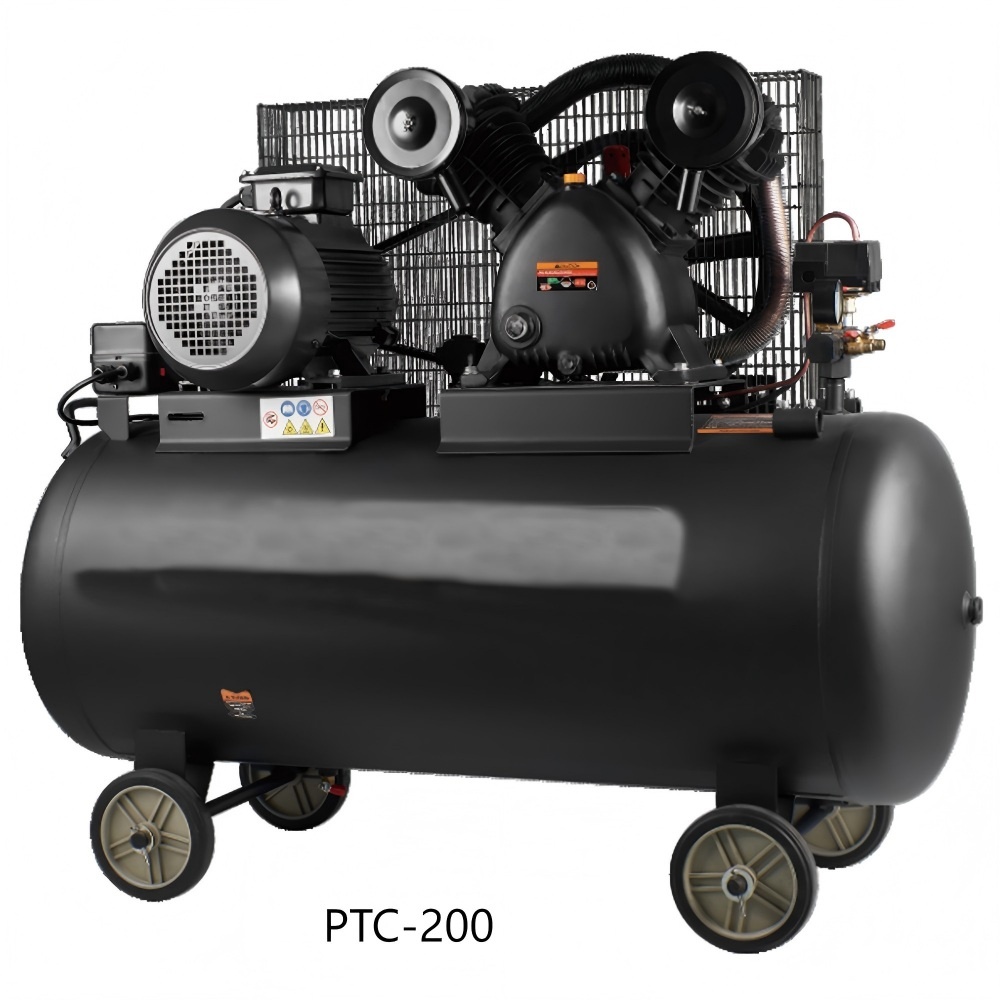

PTC-2005hp/3.75kw790/870rpm480/525L/min116psi(8bar)200L/50Gallon143kg128*48*98cm
PTC-2015hp/3.75kw790/870rpm480/525L/min116psi(8bar)300L/75Gallon163kg152*52*104cm

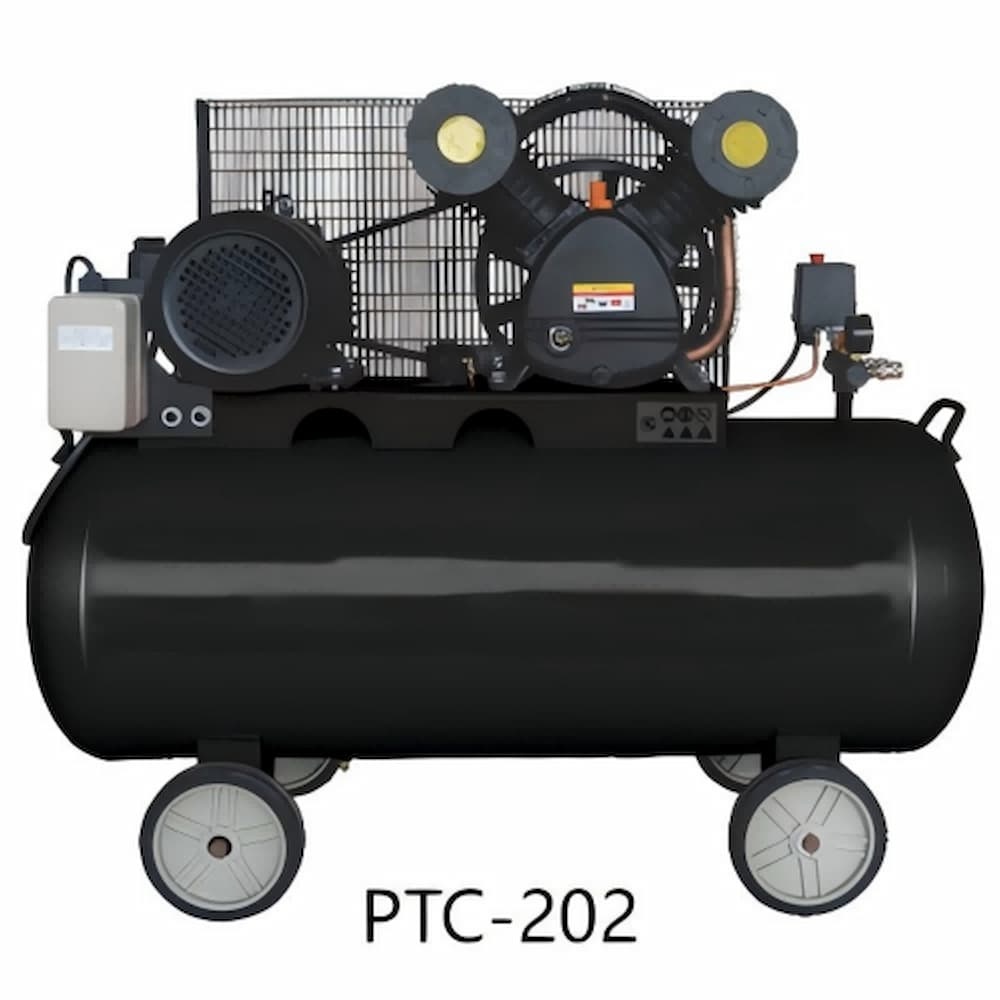

PTC-2025.5hp/4kw790/870rpm600/665L/min116psi(8bar)200L/50Gallon149kg128*48*98cm

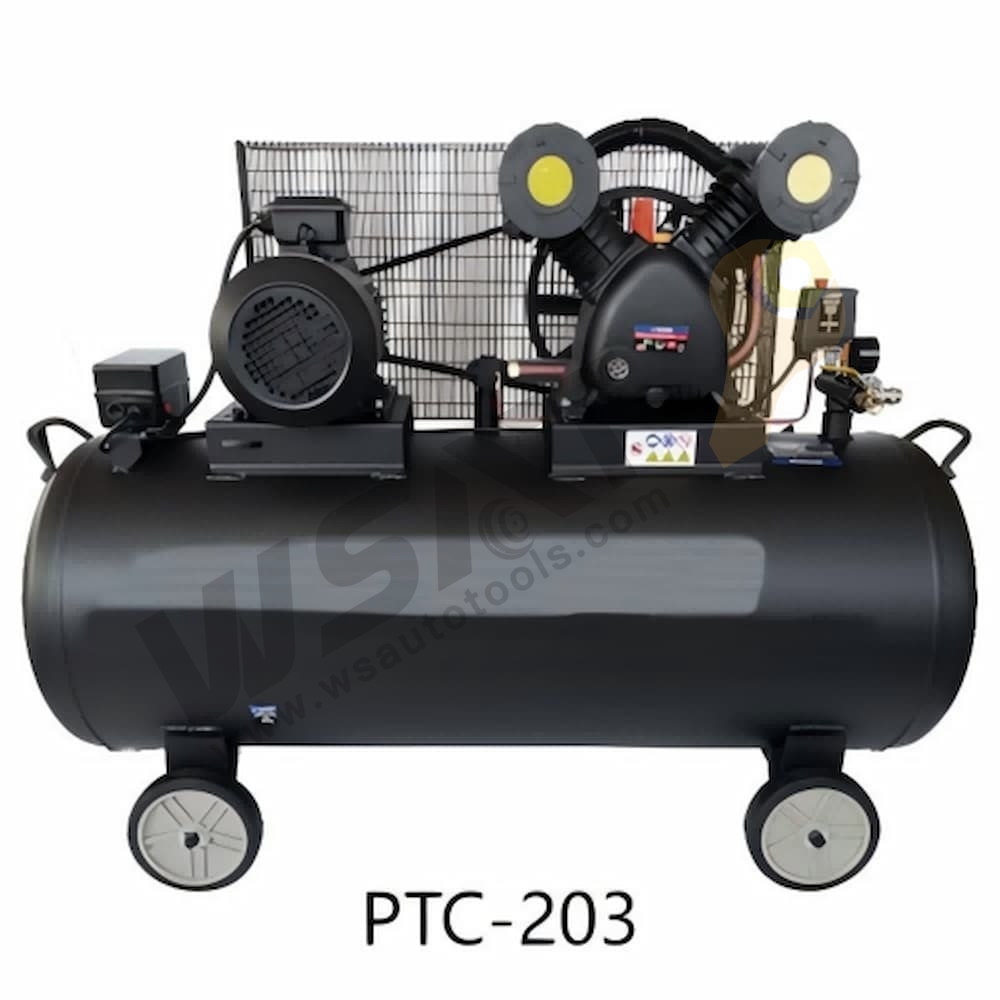

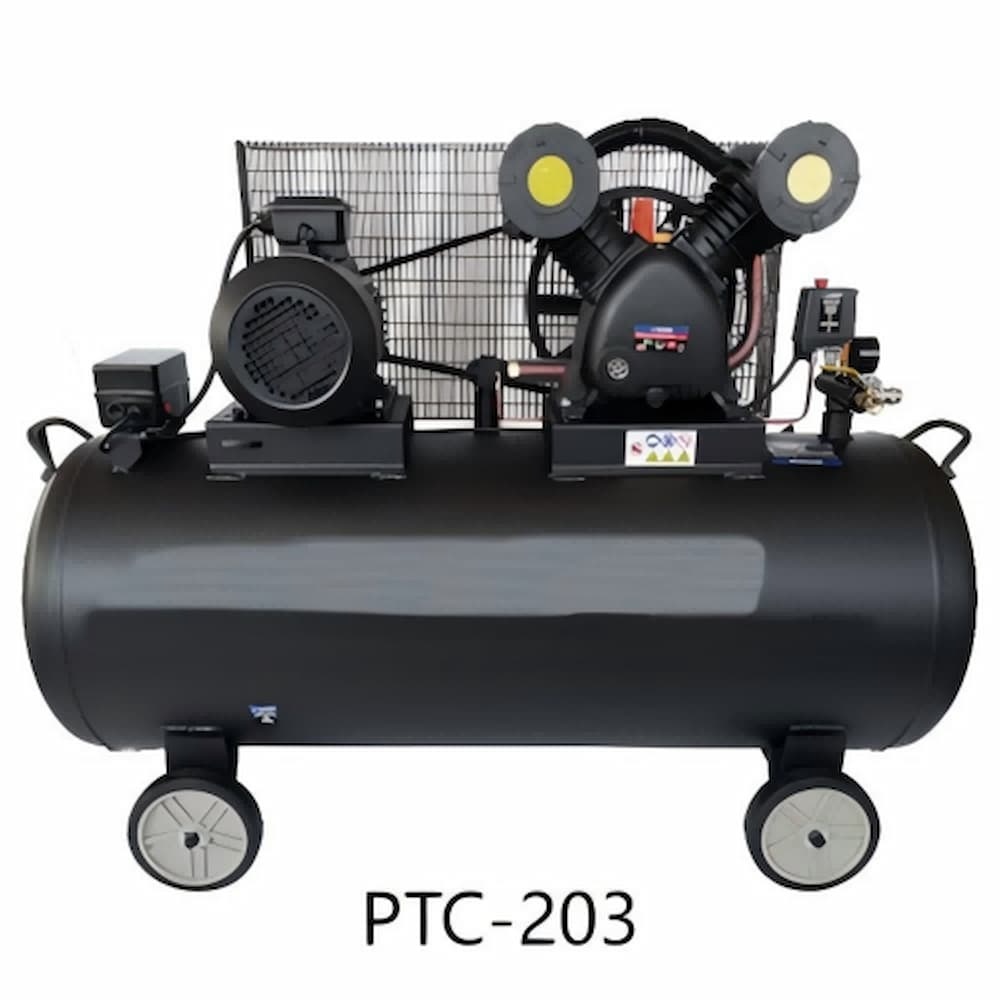

PTC-2035.5hp/4kw790/870rpm600/665L/min116psi(8bar)300L/75Gallon169kg152*52*104cm

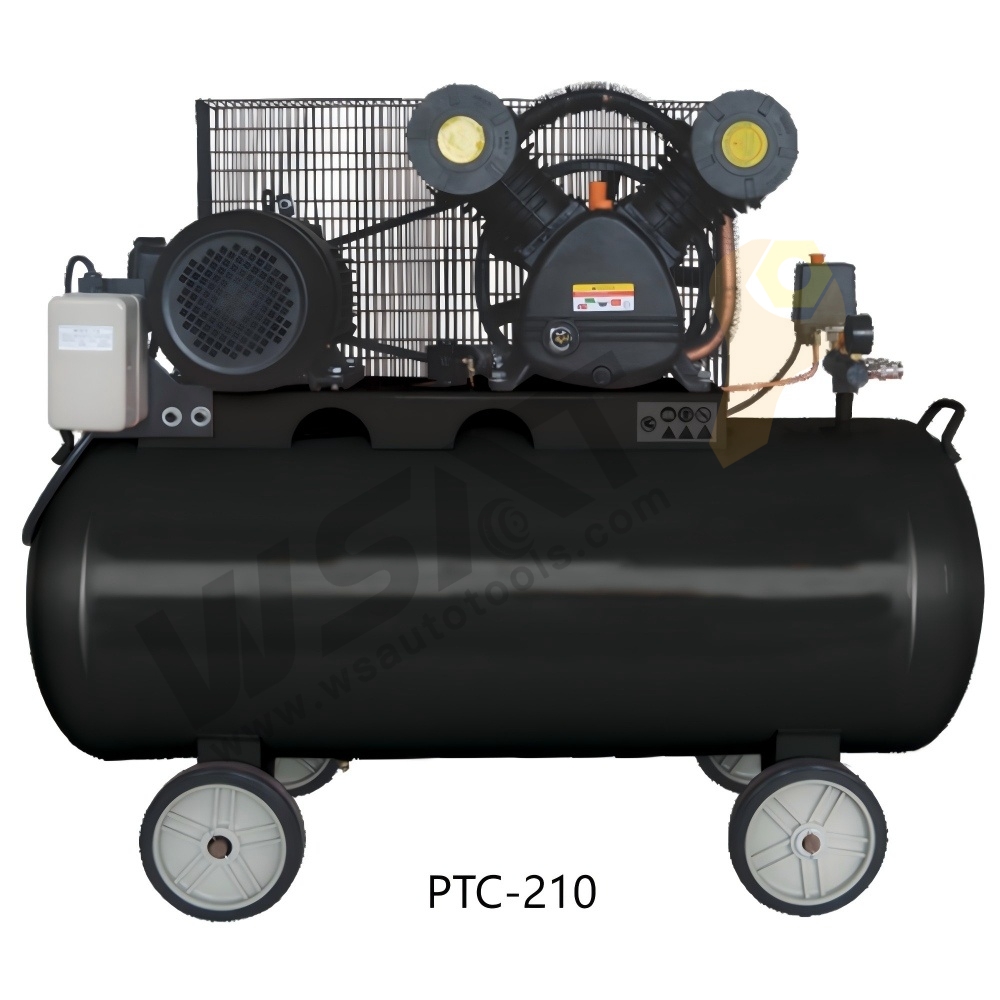

PTC-2107.5hp/5.5kw750/870rpm670/790L/min116psi(8bar)200L/50Gallon165kg128*48*98cm

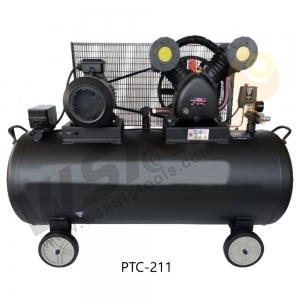

PTC-2117.5hp/5.5kw790/870rpm670/790L/min116psi(8bar)300L/75Gallon198kg152*52*104cm

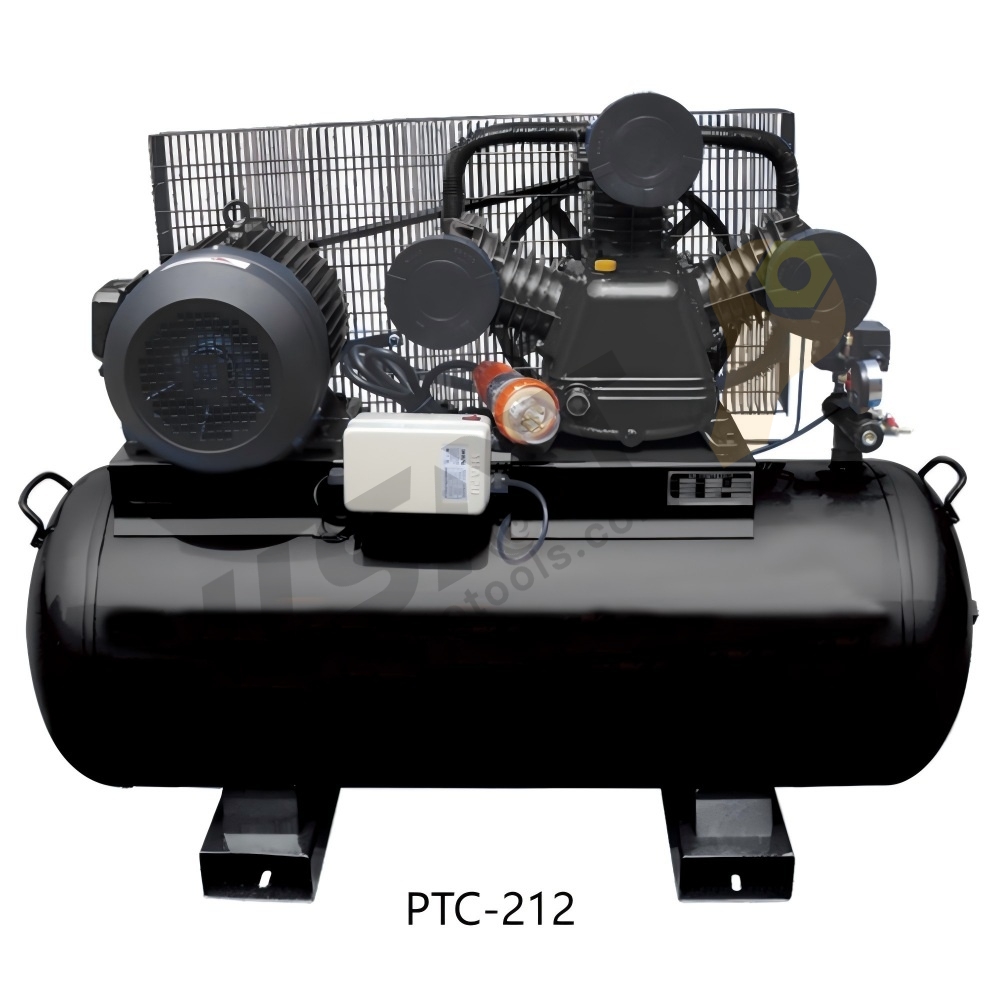

PTC-21210hp/7.5kw790/870rpm900/1000L/min116psi(8bar)200L/50Gallon172kg128*48*98cm

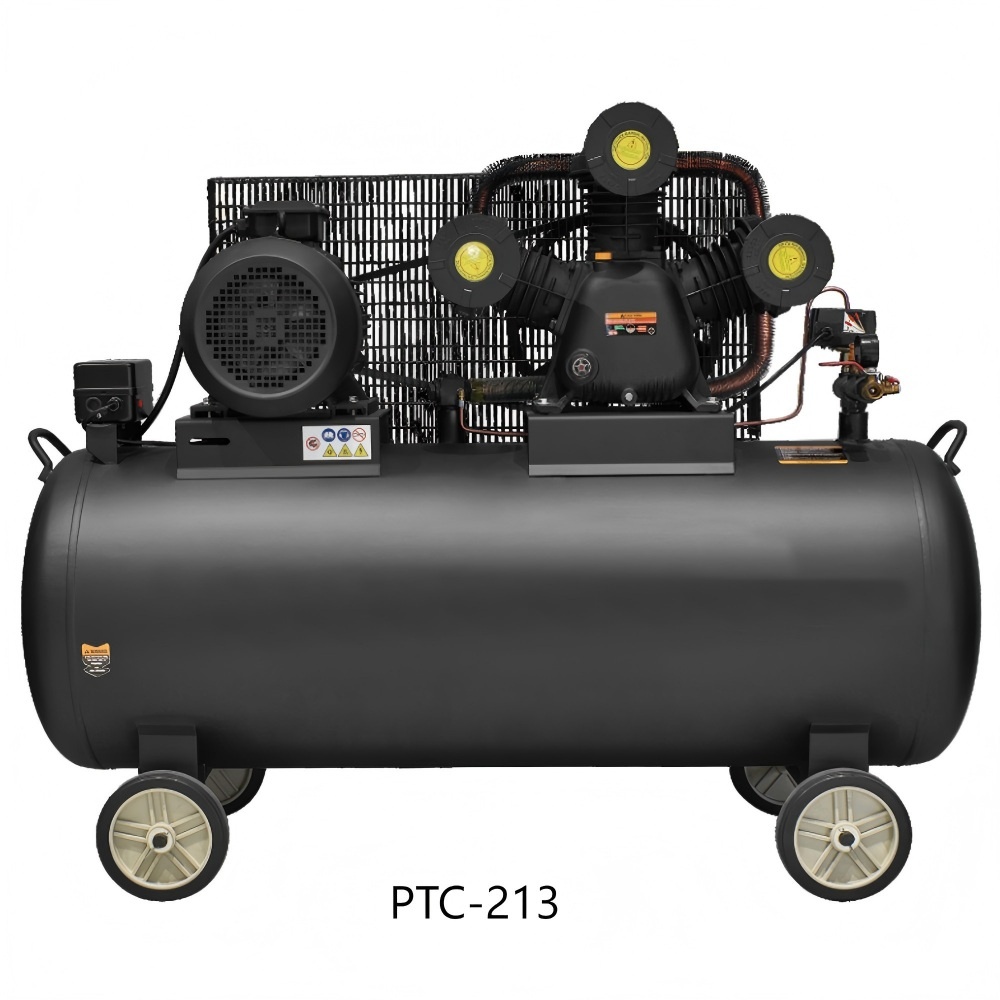

PTC-21310hp/7.5kw790/870rpm900/1000L/min116psi(8bar)300L/75Gallon195kg152*52*104cm
PTC-21410hp/7.5kw790/870rpm900/1000L/min116psi(8bar)500L/125Gallon235kg162*62*114cm

Specification
