Every car enthusiast and professional mechanic knows that the foundation of reliable vehicle maintenance is precise diagnostics. A Digital Automotive Multimeter (DAM) offers specialized functions tailored to modern automotive systems, far surpassing the capabilities of a generic multimeter. Understanding the advantages of a DAM will help you save time, avoid misdiagnoses, and safeguard your vehicle's complex electronics.
A Digital Automotive Multimeter is an instrument crafted specifically for automotive electrical systems. Unlike household meters, it measures parameters such as voltage, current, resistance, frequency and even cranking amps, all with scales optimized for 12 V and 24 V systems. It integrates battery‑health assessments via cold cranking amp readouts and uses inductive pickups for RPM measurements. Diode and continuity tests are likewise calibrated for automotive wire gauges, enabling you to pinpoint faults in circuits, sensors and control modules more efficiently than with a standard meter.
Advantages over Generic Multimeters
Automotive‑grade accuracy is one of the hallmarks of a DAM. Its calibration minimizes errors when you test alternator outputs or diagnose battery drain. Another key benefit is robust protection against the harsh conditions under a vehicle's hood. Built‑in safeguards warn you of reverse‑polarity connections and voltage spikes before damage occurs. Integration of specialized features—such as inductive RPM clamps and temperature probes—means you won't need to purchase and switch out multiple accessories, streamlining your workflow and reducing setup time.
Features to Look For
When choosing a DAM, be sure it offers a voltage range up to at least 20 V DC with millivolt resolution, allowing you to detect subtle variances in charging and resting voltages. The current measurement capability should extend to 200 A DC so you can accurately assess starter cranking performance. A high input impedance—ten megaohms or greater—prevents your meter from loading sensitive circuits, while CAT III or CAT IV safety ratings ensure protection against unexpected surges. Additional conveniences, such as an audible continuity beeper and a built‑in temperature probe, will further enhance your diagnostic toolkit.
Common Automotive Uses
Technicians rely on DAMs for a wide spectrum of tasks. Battery health checks begin with measuring the resting voltage and performing cold cranking amp tests to determine whether a battery can deliver sufficient power in cold conditions. Alternator testing involves verifying the charging voltage under load and inspecting ripple voltage to catch early signs of diode or regulator failure. When troubleshooting sensor signals—whether for throttle position, coolant temperature or mass airflow—a DAM reveals whether a sensor's output matches manufacturer specifications. In cases of parasitic drains or intermittent shorts, measuring current draw with a clamped meter allows you to isolate circuits without removing fuses one by one.
Best Practices for Reliable Results
For the most accurate readings, allow the engine to reach operating temperature; many electrical characteristics shift when components warm up. Always ensure firm connections by using high‑quality test leads and clean contact points, as poor connections can introduce misleading resistance. Observe polarity carefully, connecting the positive lead to the circuit's positive terminal and the negative lead to chassis ground. When using a clamp meter for current measurements, encircle a single conductor and, if your device permits, zero out any residual reading before capturing the actual current flow.
When You Need More Than a Multimeter

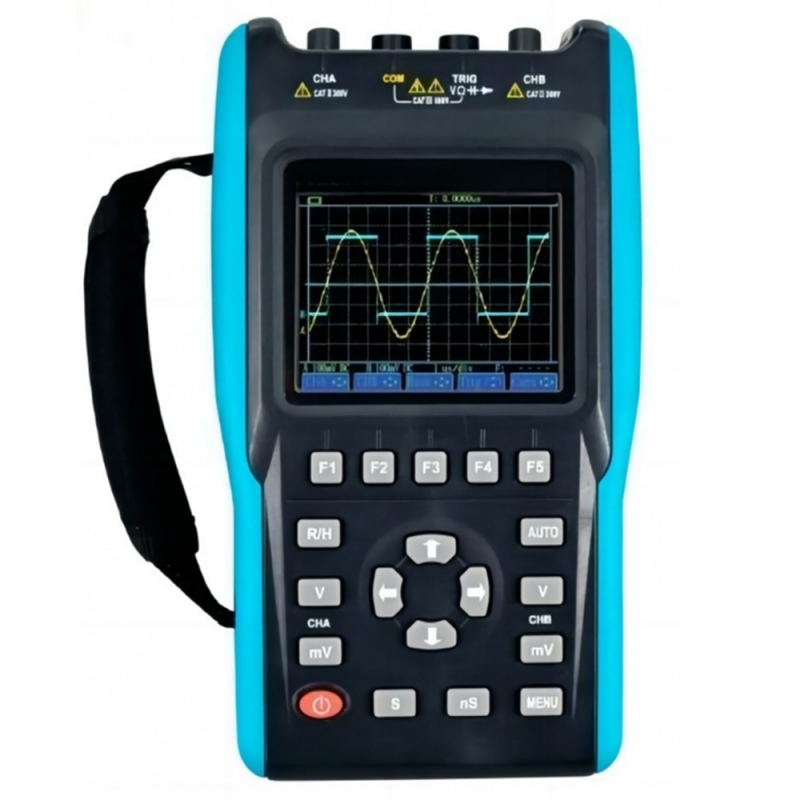

Even the most advanced DAM cannot display complex waveforms or interpret manufacturer‑specific fault codes. For waveform analysis on fuel injectors or ignition coils, an oscilloscope is indispensable. To retrieve and clear OBD‑II trouble codes, monitor live data streams and access proprietary parameters, an OBD‑II scanner is your go‑to tool. Simple circuit testers can complement your DAM by quickly confirming power presence without risking damage to sensitive electronics.
A Digital Automotive Multimeter is far more than a mere gadget; it is an essential precision instrument that elevates the accuracy and efficiency of modern vehicle diagnostics. Whether you are a dedicated DIYer tackling weekend repairs or a seasoned technician in a busy shop, investing in the right DAM will instill confidence and speed in every electrical test you perform.
