How Bottle Jack Works and Why Choose it

2025-05-09 10:01:39 Jiaxing Winsen Imp. & Exp. Co., Ltd. Viewd 24

What Is a Bottle Jack?

Low-Profile Hydraulic Bottle Jack

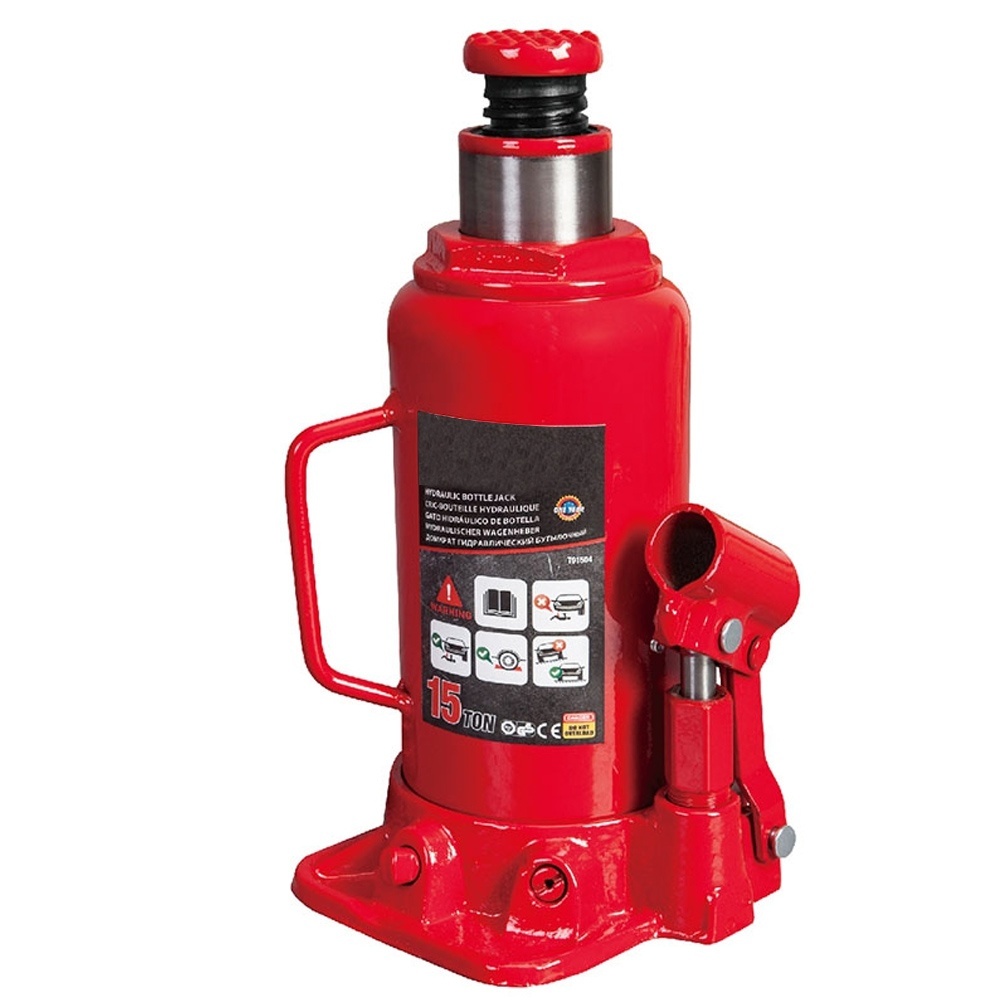

Hydraulic Bottle Jack

A bottle jack, also known as a hydraulic jack, is a mechanical lifting device used to raise heavy loads such as vehicles or industrial equipment. Named for its cylindrical, bottle-like shape, this tool relies on hydraulic pressure to lift loads vertically. Compact, powerful, and relatively simple in design, bottle jacks are commonly used in automotive repair, construction, and other heavy-duty applications.

Unlike screw jacks or scissor jacks, bottle jacks use fluid pressure to provide consistent and high lifting power with minimal manual effort. Their vertical structure allows them to offer higher lift capacity in a smaller footprint, making them ideal for vehicles with higher ground clearance like trucks and SUVs.


How Does a Bottle Jack Work?

Bottle jacks operate based on the principle of hydraulics—specifically Pascal's Law, which states that pressure applied to a fluid in a closed system is transmitted equally in all directions.

Here's how the mechanism works:

Step 1: Pumping the Handle

When you pump the jack handle, it pushes a small piston inside a cylinder. This creates pressure in the hydraulic fluid (usually oil).

Step 2: Hydraulic Pressure Builds

The fluid is forced through a one-way valve into a larger cylinder where a main piston sits.

Step 3: Piston Rises

The pressure forces the main piston upward, lifting the load placed on top of it.

Step 4: Controlled Lowering

To lower the load, a release valve is turned, allowing the hydraulic fluid to return to the reservoir, slowly bringing the piston down.

This system enables the jack to lift several tons with relatively little manual effort, offering precise and stable control during lifting.

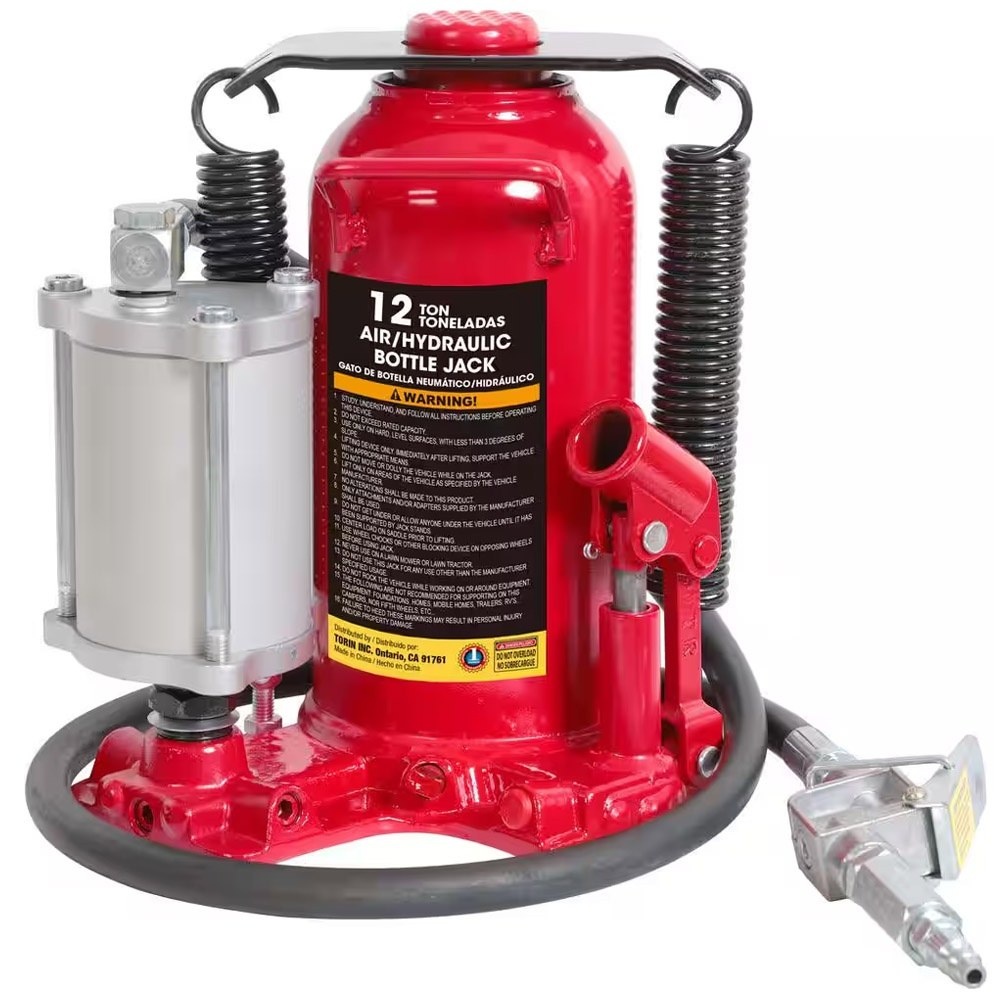

Air Bottle Jack with Welded Base

Air Bottle Jack with Welded Base

Key Features of a Bottle Jack

High Lifting Capacity
Bottle jacks are available in a range of capacities, typically from 2 tons to over 50 tons.

Compact Design
Despite their power, they are compact and easy to store or carry in a vehicle trunk.

Simple Operation
Minimal moving parts make them easy to use and maintain.

Durable Construction
Made from high-strength steel, most bottle jacks are built to withstand tough environments and heavy use.

Vertical Lifting
The upright design is perfect for high-clearance vehicles or equipment with enough space underneath.


Pros and Cons of Bottle Jacks

Pros

  • Powerful lifting capacity relative to size

  • Affordable and widely available

  • Durable and long-lasting

  • Simple to operate and maintain

Cons

  • Not suitable for vehicles with low ground clearance

  • Must be placed on a flat, stable surface to avoid tipping

  • Slower than some air-powered or electric lifting alternatives

  • Requires manual pumping


Why Choose the Bottle Jack?

A bottle jack is the go-to solution for users who need a compact, powerful, and affordable lifting tool. Whether you're a professional mechanic or a weekend DIYer, a bottle jack offers exceptional value for lifting heavier vehicles like trucks or for performing underbody repairs.

Compared to other types of jacks, it offers a better strength-to-size ratio, is easy to store, and requires minimal upkeep. If you prioritize lifting power, reliability, and simplicity over speed or low-clearance access, the bottle jack is an excellent investment. Feel free to contact us!
