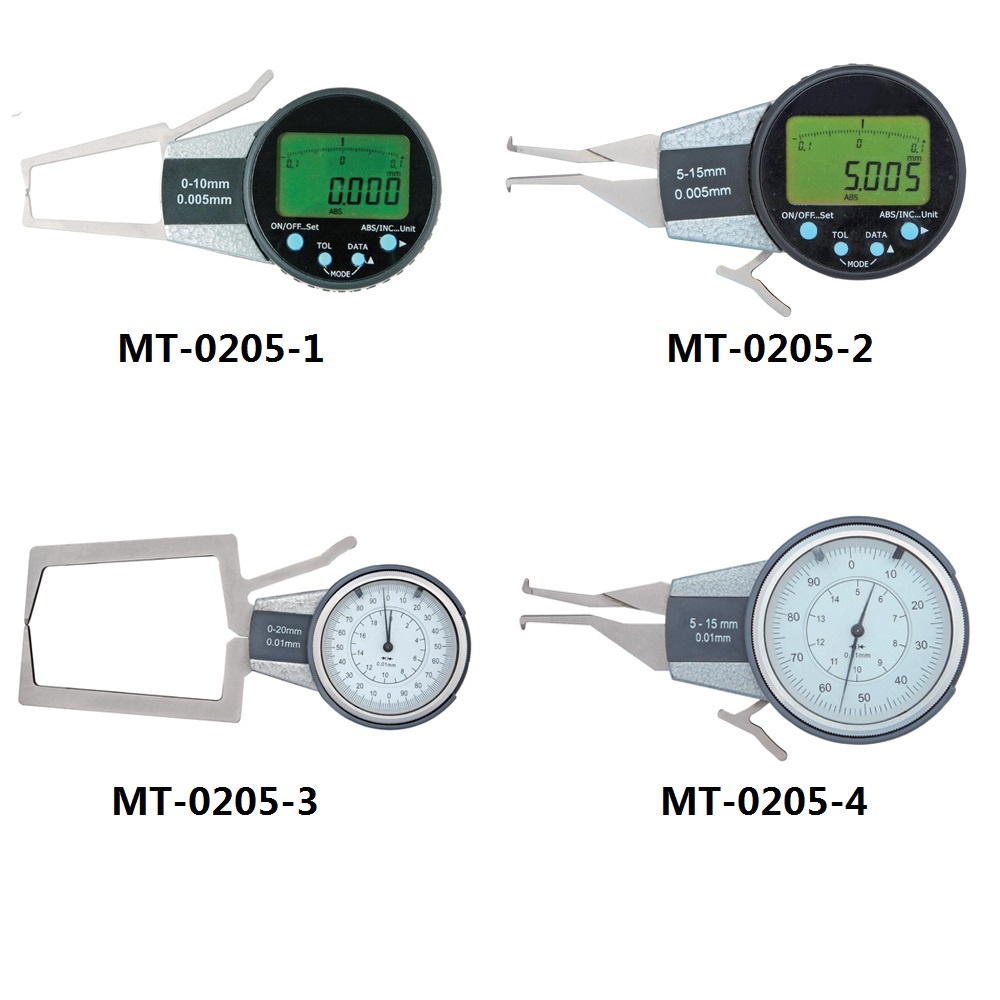

MT-0205-1

Feature:

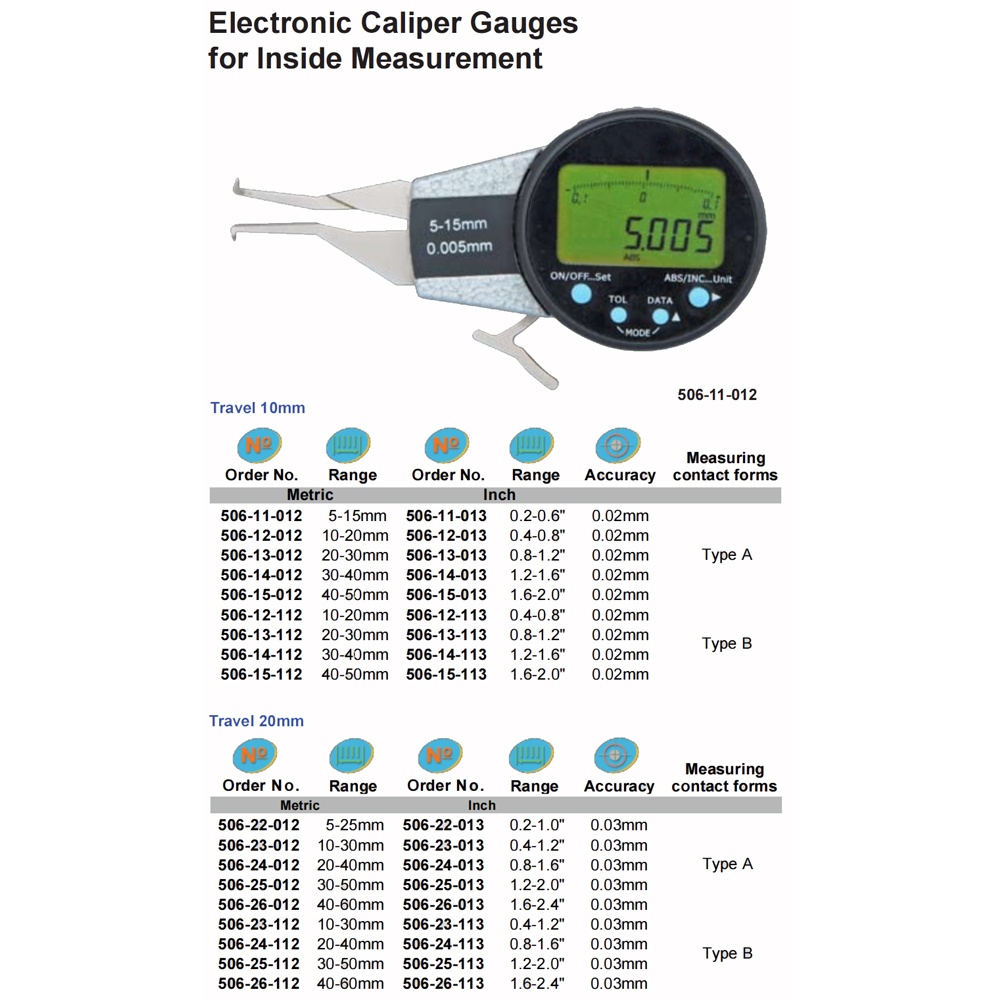

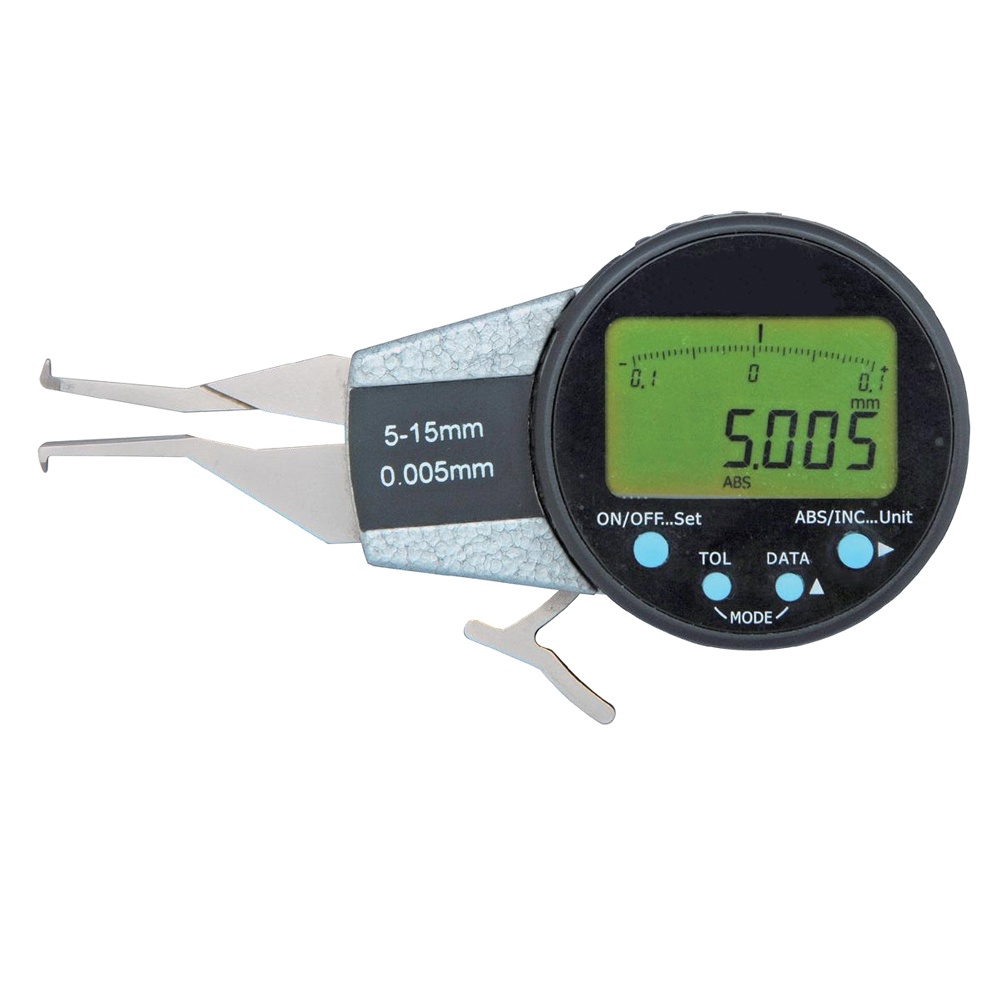

Electronic inside caliper gauges are suited for measuring bores, internal groove, and other hard-to-reach inside dimension.

Dial rotates±170°for use at versions angles.

Display data is origin data of absolute measurement after changing battery.

Digital display and analog display on LCD, automatic switch over.

Analog display range: ±20graduation.

Function: Power on/off,Absolute and incremental measurement conversion,Metric-inch conversion, Tolerance set,Origin data set,Data output,Remember data of max. and min. or hold display data,Power off automatically.

Protecton level: IP54.

Battery: One CR2032 battery

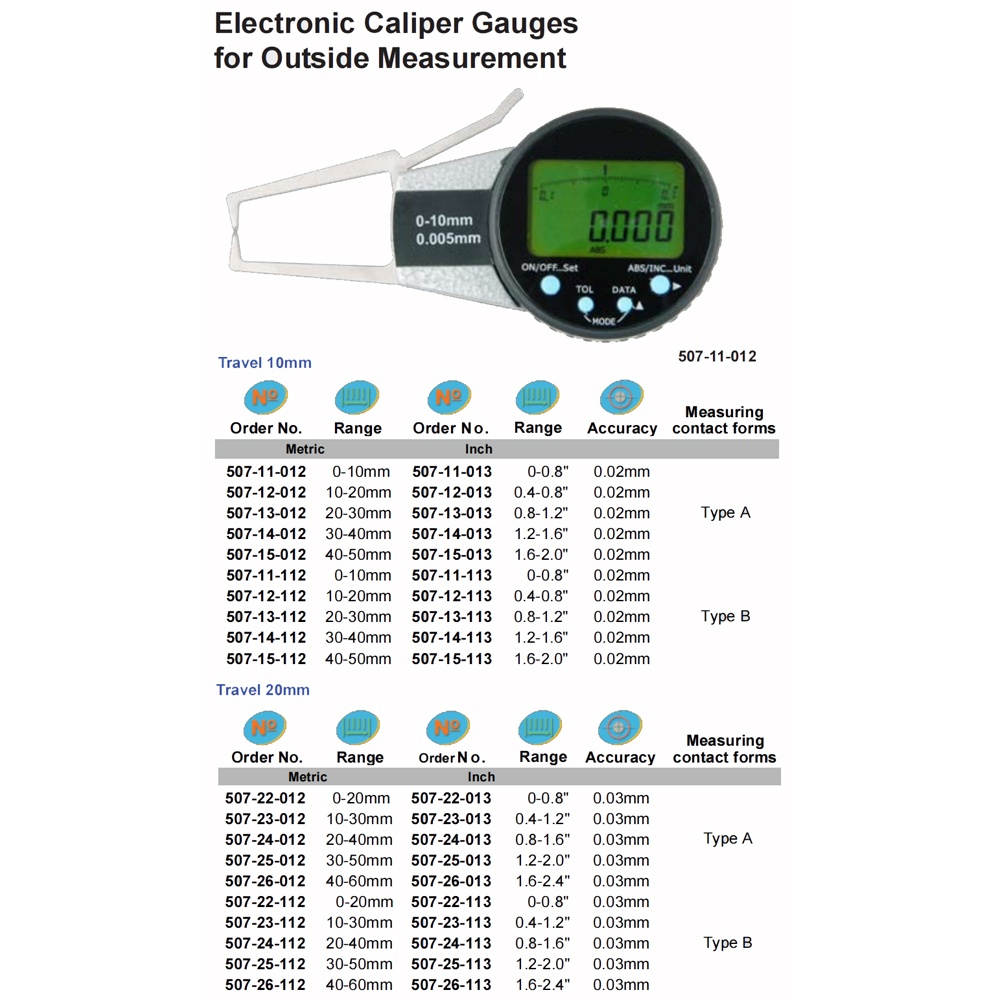

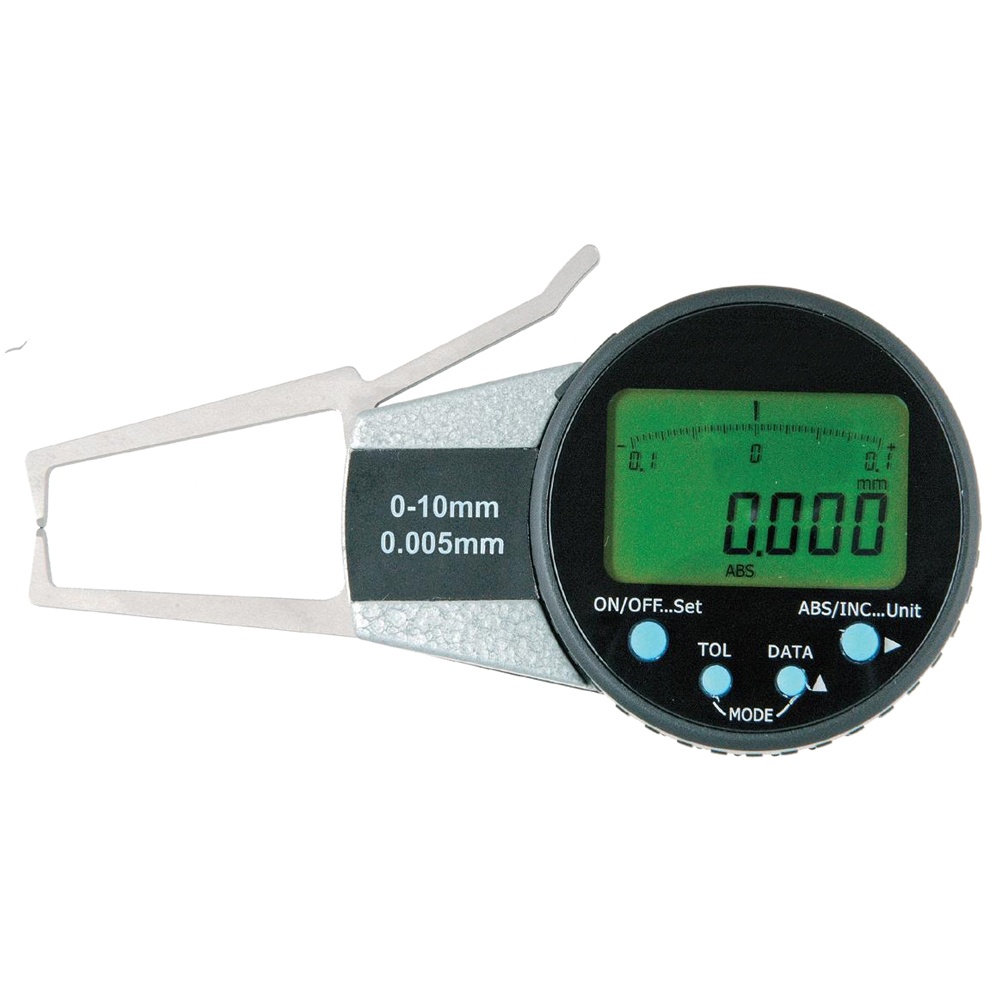

MT-0205-2

Feature:

Electronic outside caliper gauges are suited for measuring grooves and other hard-to-read outside dimension.

Dial rotates±170°for use at versions angles.

Display data is origin data of absolute measurement after changing battery.

Digital display and analog display on LCD, automatic switch over.

Analog display range: ±20graduation.

Function: Power on/off,Absolute and incremental measurement conversion,Metric-inch conversion, Tolerance set,Measuring direction conversion,Origin data set,SPC data output,Power off automatically.

Protecton level: IP54.

Battery: One CR2032 battery

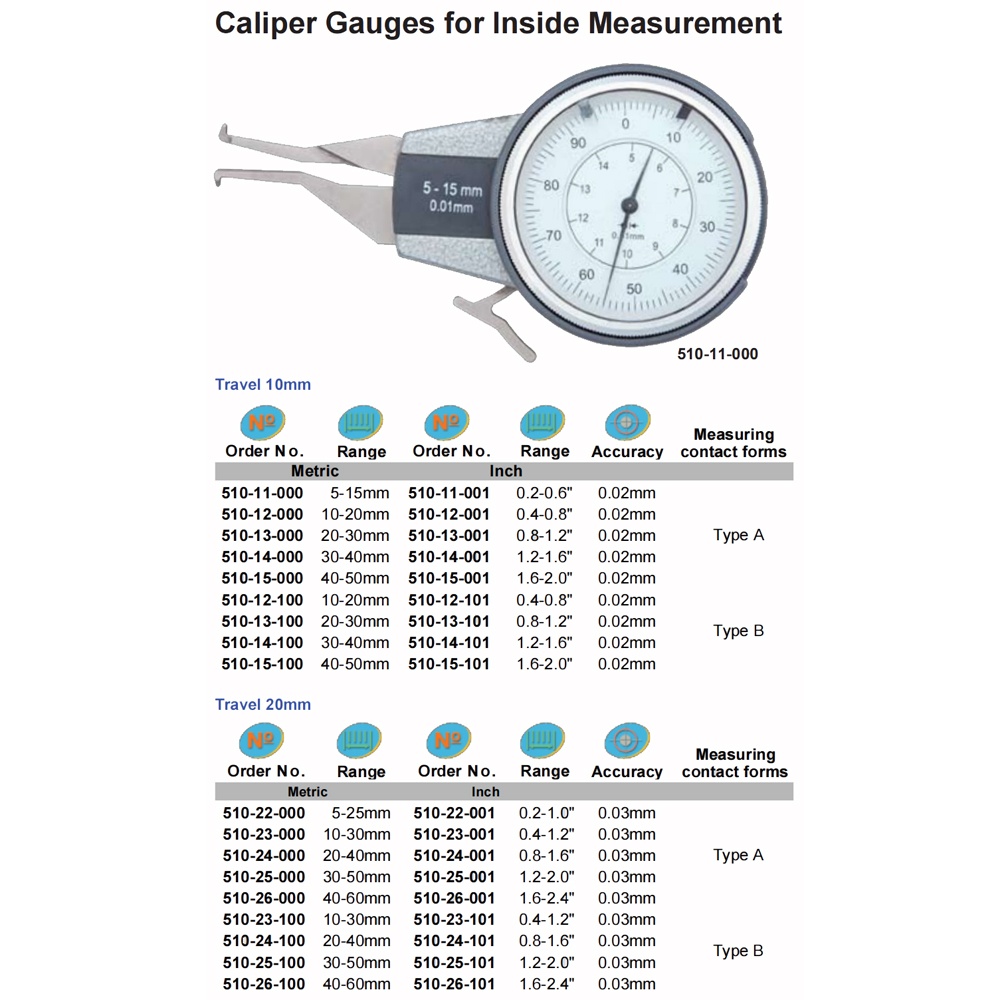

MT-0205-3

Feature:

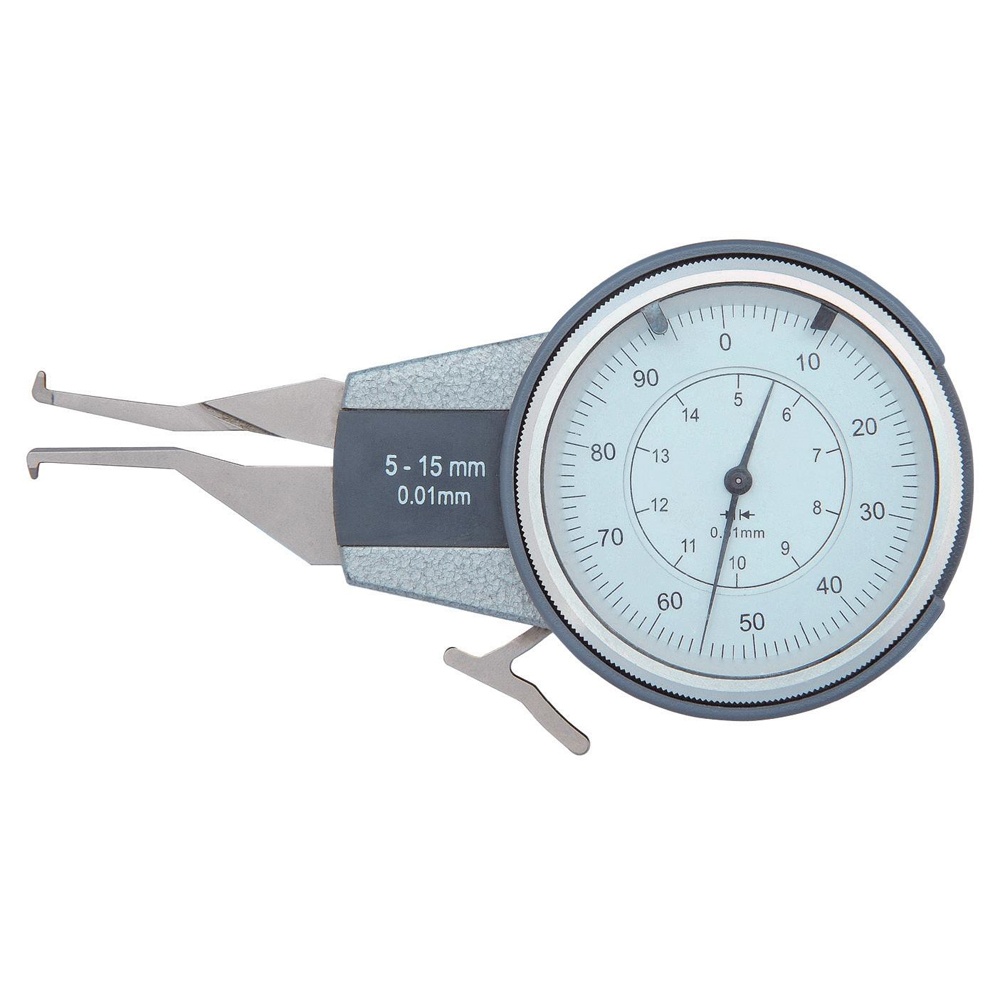

Inside caliper gauges are suited for measuring bores, internal groove, and other hard-to-reach inside dimension.

MT-0205-4

Feature:

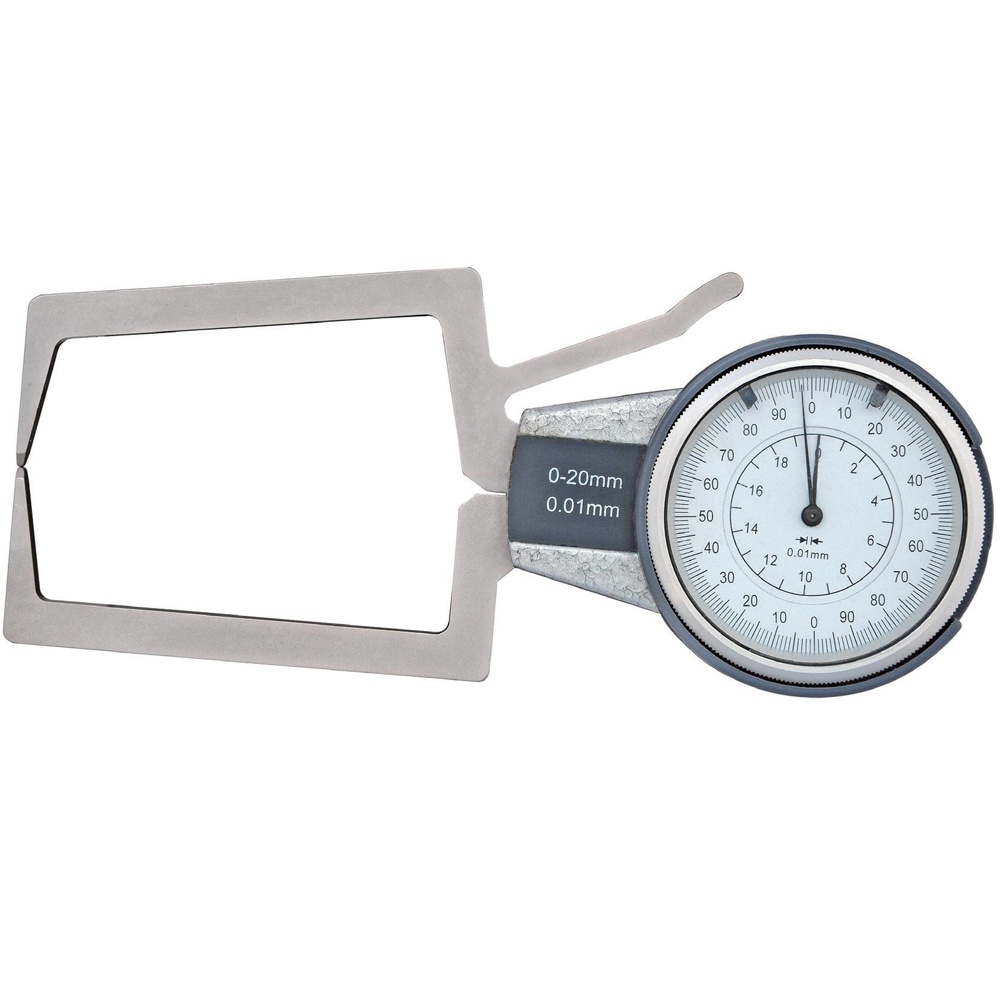

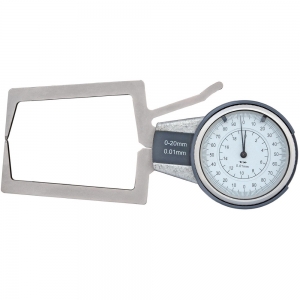

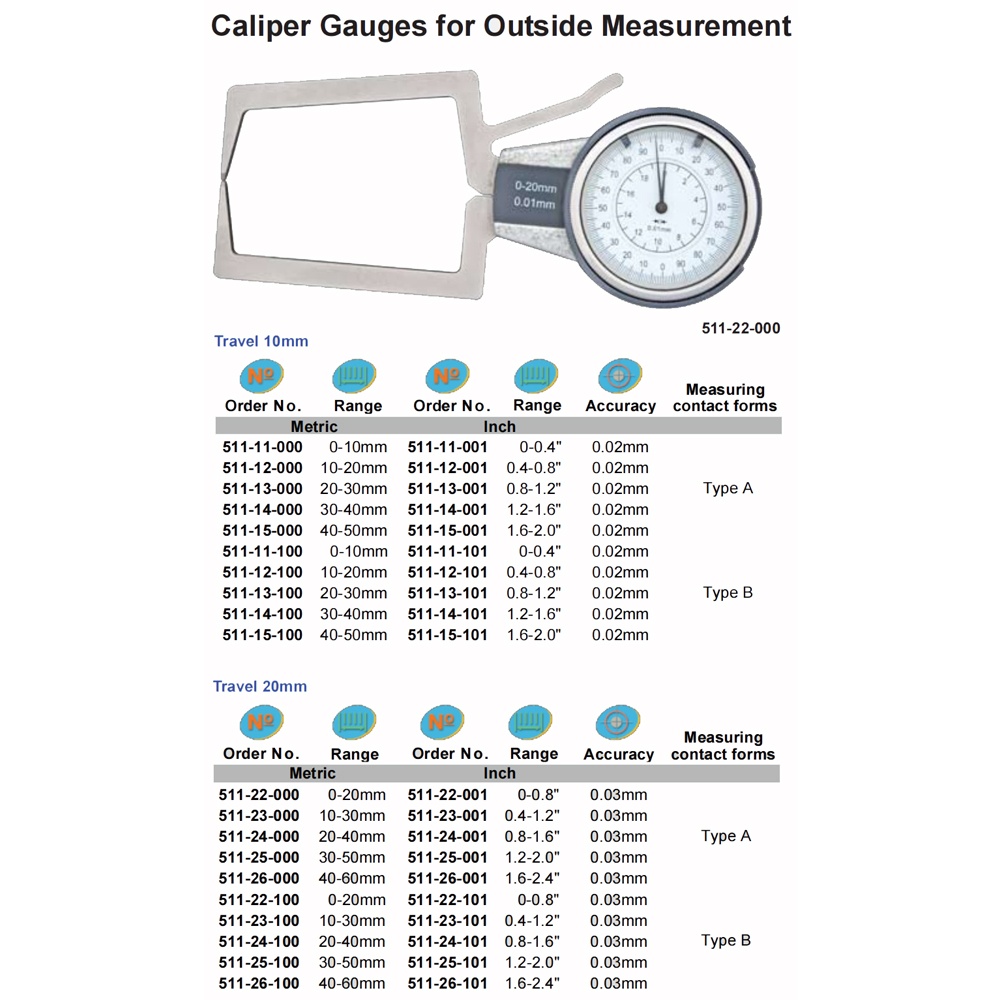

Outside caliper gauges are suited for measuring grooves  and other hard-to-read outside dimension.
