1. Platform monitoring

2. Drainage angles and run-off slopes

3. Grader and tractor work alignment

4. Setting blade angle of Circular Saws

5. Tool setting on Lathes

6. Setting work piece angle for milling

7. Setting blade angle of Miter Saws

8. Check drill press table setting, table saw, jointer table, band saw, jointer fence or band saw table

Digital Bevel Box / Inclinometer / Protractor

With Built-in Magnetic Base & Always Upright LCD

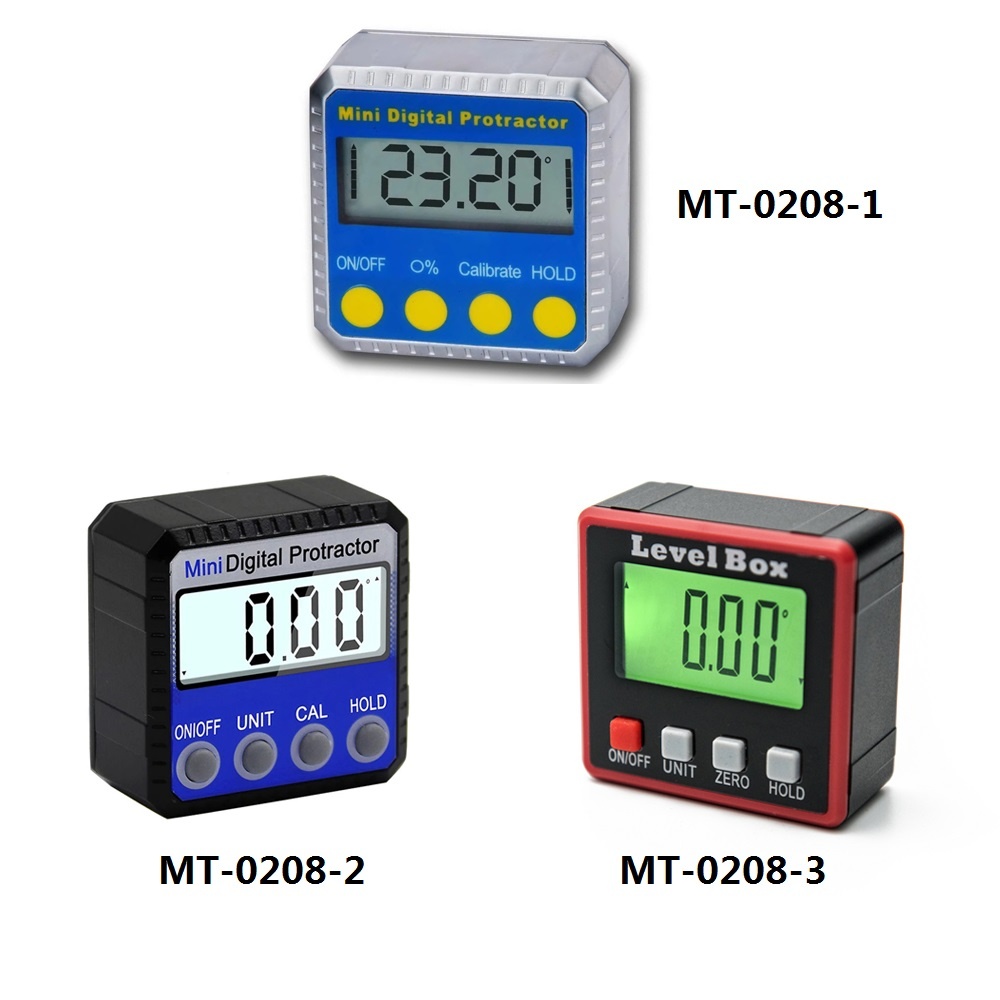

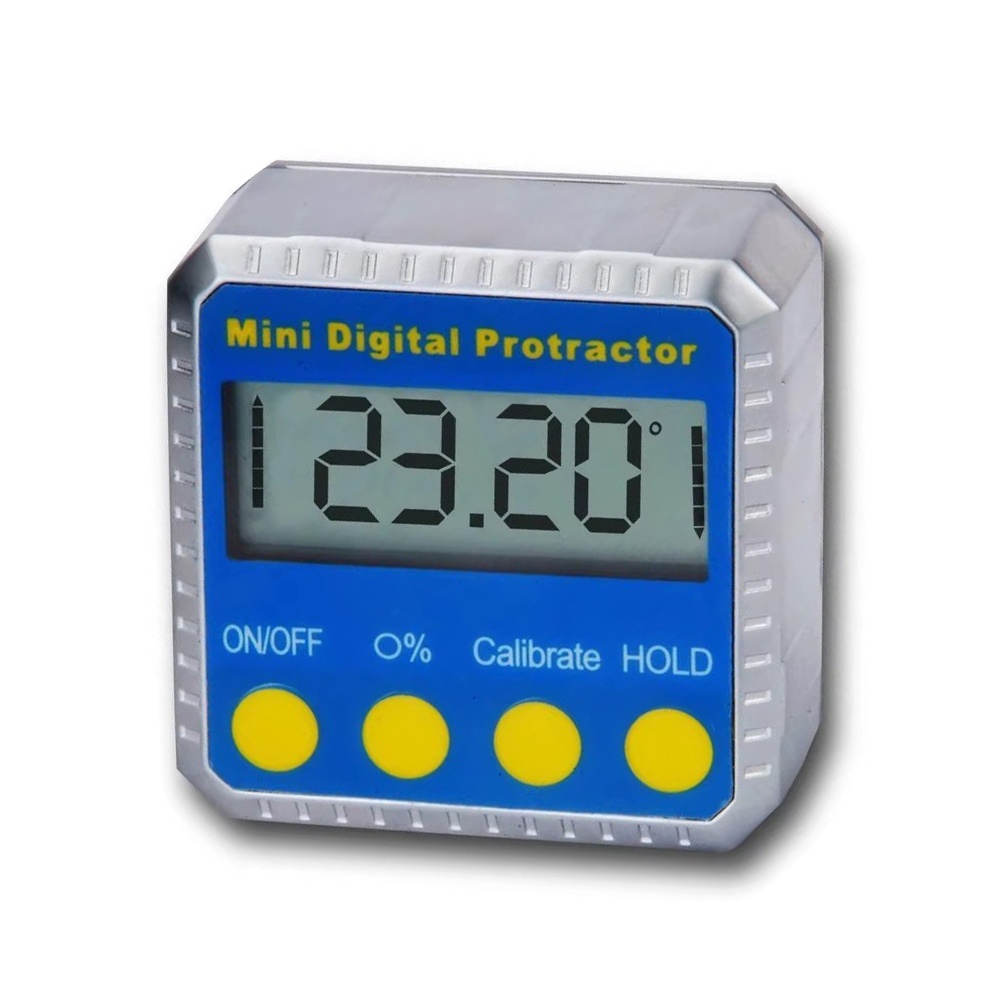

MT-0208-1

Measuring Range: 4 x 90°

Resolution: 0.1°/ 0.01%

Repeatability: ±0.1°

Operating Temperature: 0 - 40°C

Operating Humidity: 40 - 80%

Power Supply: 3 x 3V CR2032 Batteries

Size: 52x52x26mm

Zinc alloy housing

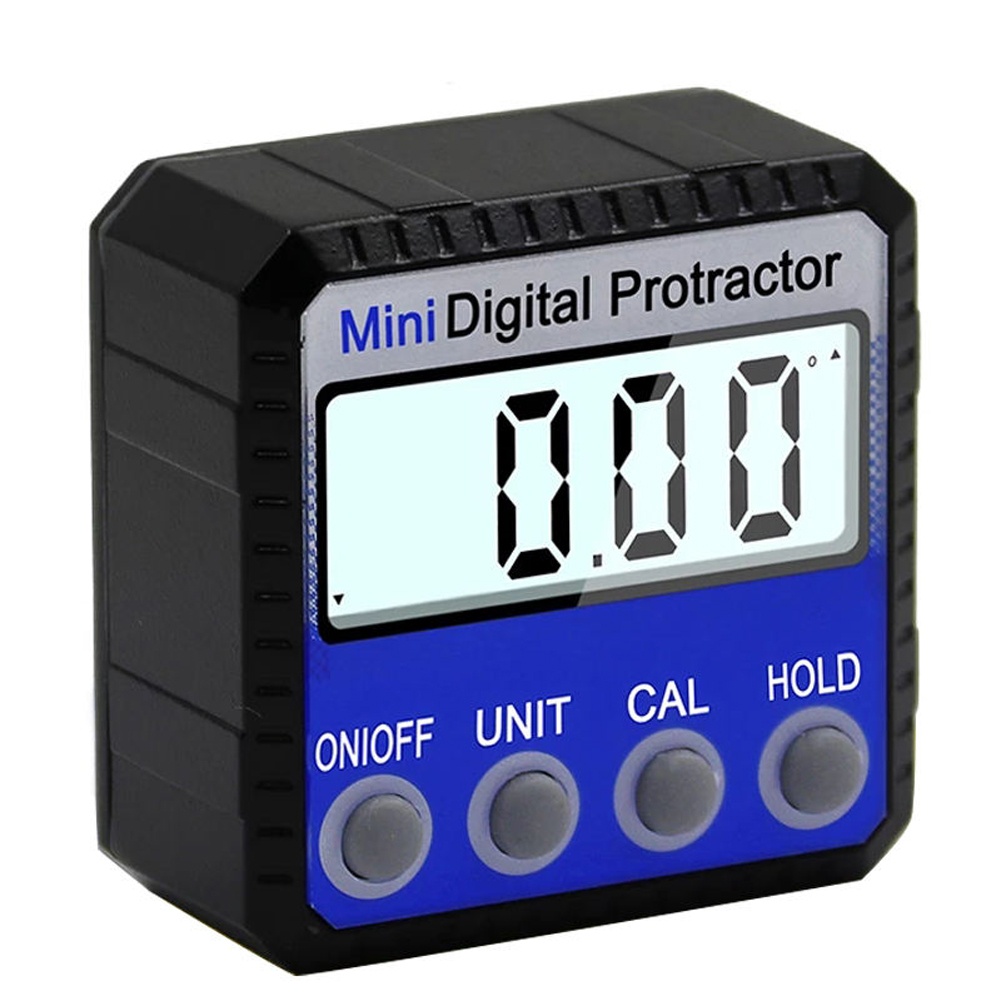

MT-0208-2

Measuring Range: 4 x 90°

Material:Metal framework+ with Electrically Conductive Silicone button

It features the large and clear LCD with reading results always in upright position at any given angle.

The built-in strong magnets on the bottom.

Unit: °(degree); %(slope) ; mm/m; in/ft

Power Supply: 3 x 3V CR2032 Batteries

Size: 52x52x26mm

Zinc alloy housing

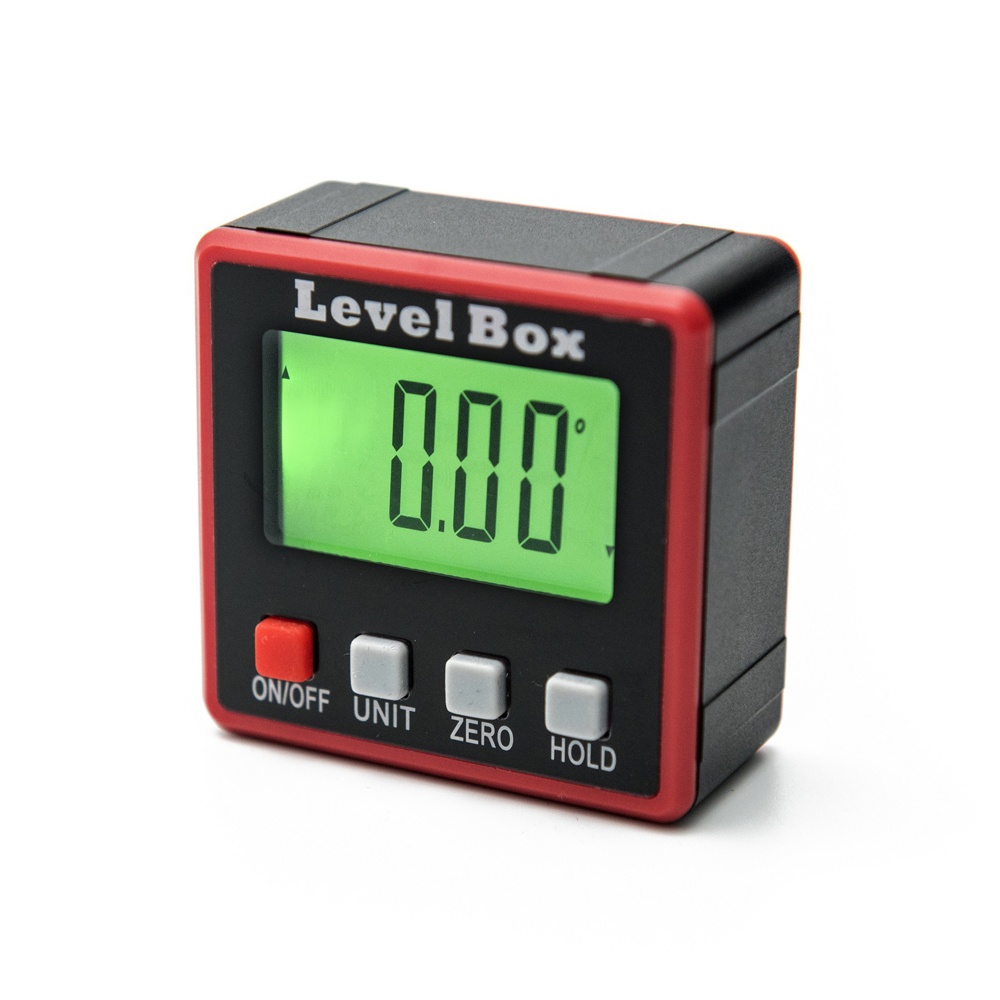

MT-0208-3

Measuring Range: 4 x 90°

Material:Aluminum framework

It features the large and clear LCD with reading results always in upright position at any given angle.

The built-in strong magnets on the bottom and two sides.

Unit: °(degree); %(slope) ; mm/m; in/ft

Backlight Function

Power Supply:1 x 1.5V AAA Battery

Size:55x57x30mm
