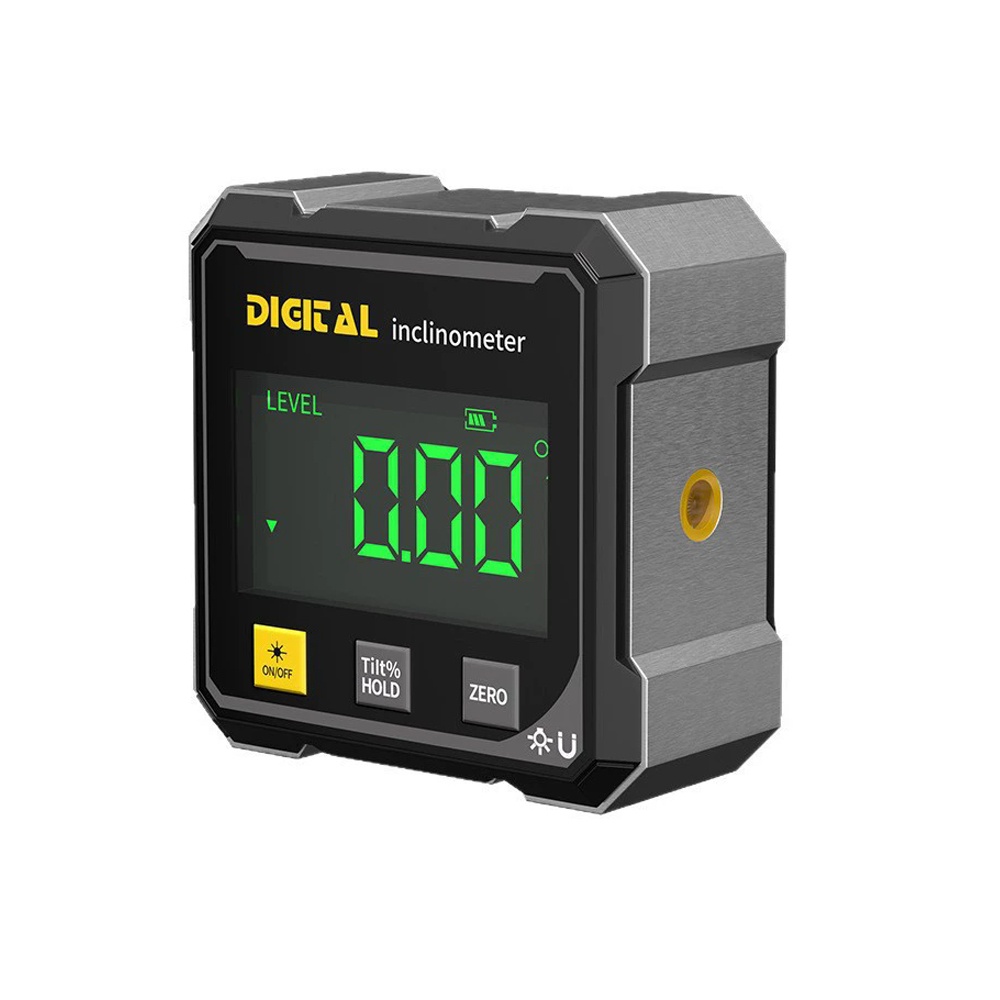

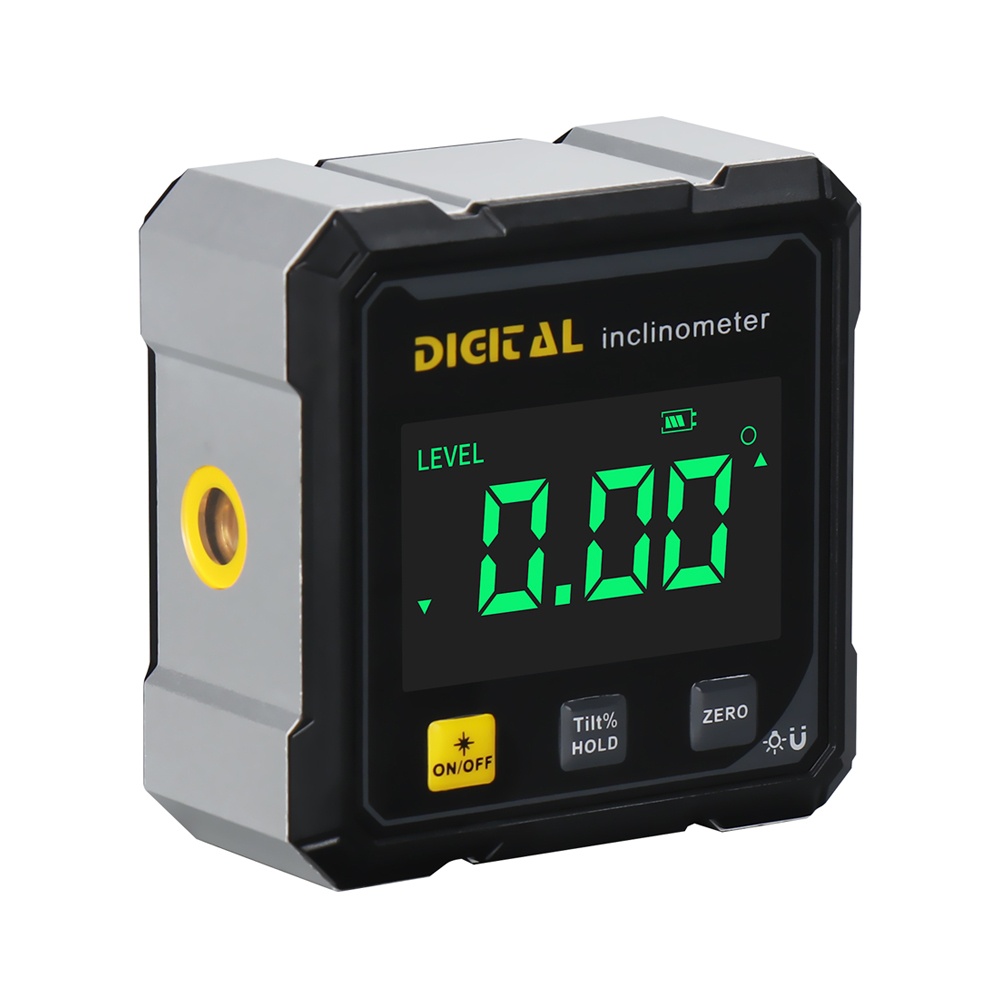

Economical Two-sided Laser Digital Inclinometer

MT-0209

Quantity

ltem No.

Description

·Buttons: On/off, zero, dala hold,laser switch

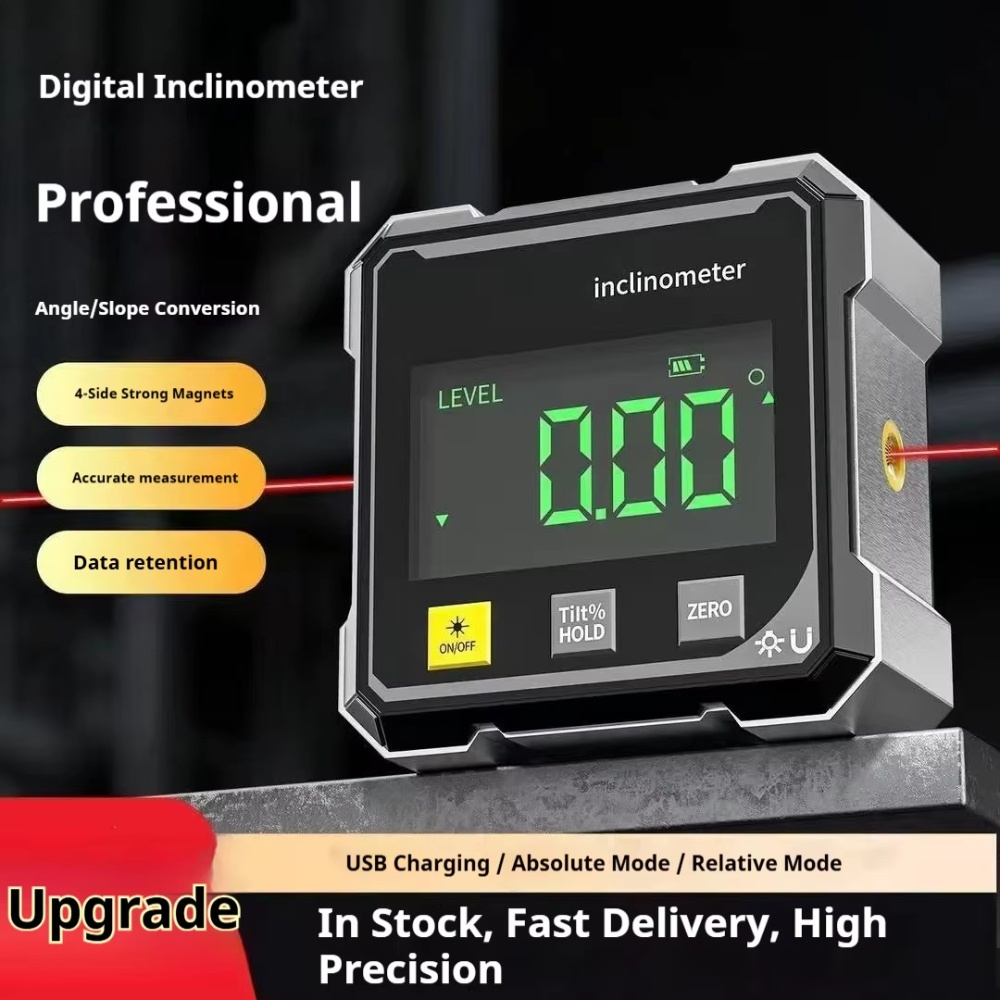

·Angle and slope conversion

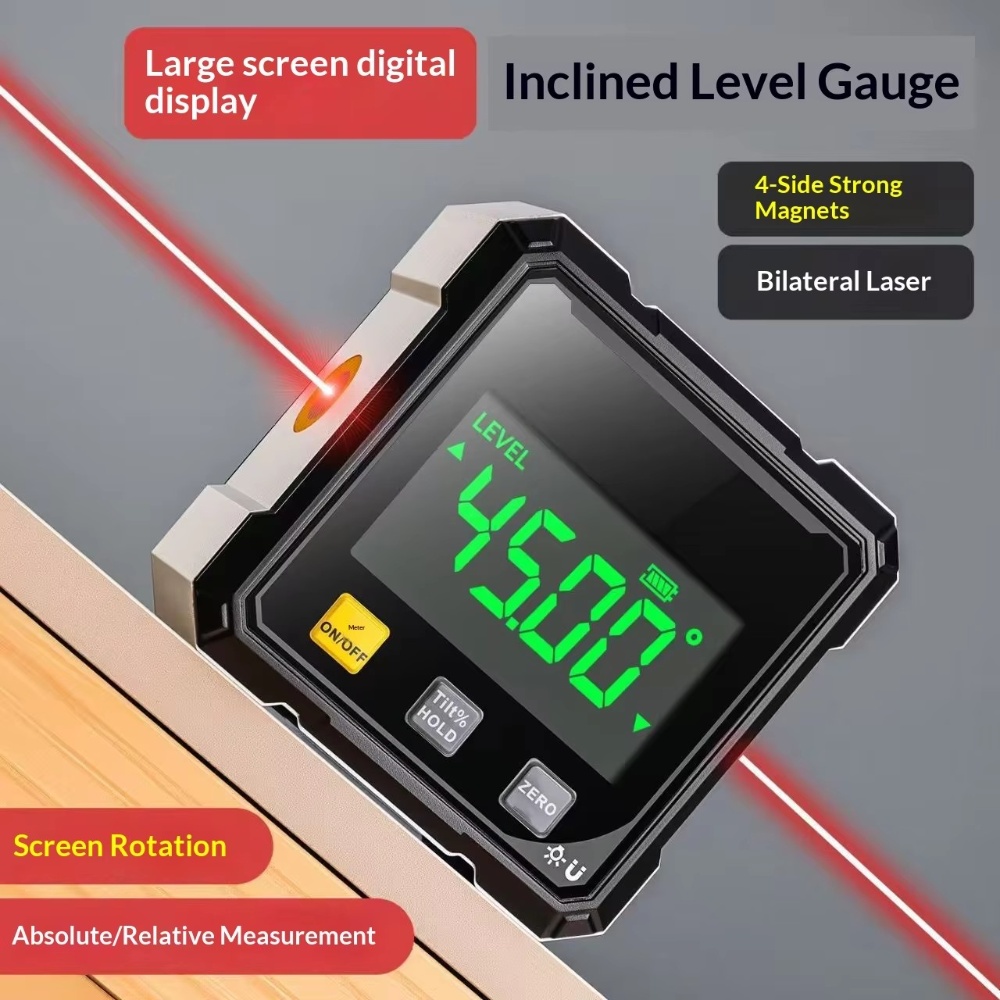

·Absolute and relative measurements are available

·Automatic power off in 3 minutes

·4-side strong magnetic adsorption, rechargeable unit.

·Operating Temperature:-10~50℃

·Battery 3.7V lithium battery

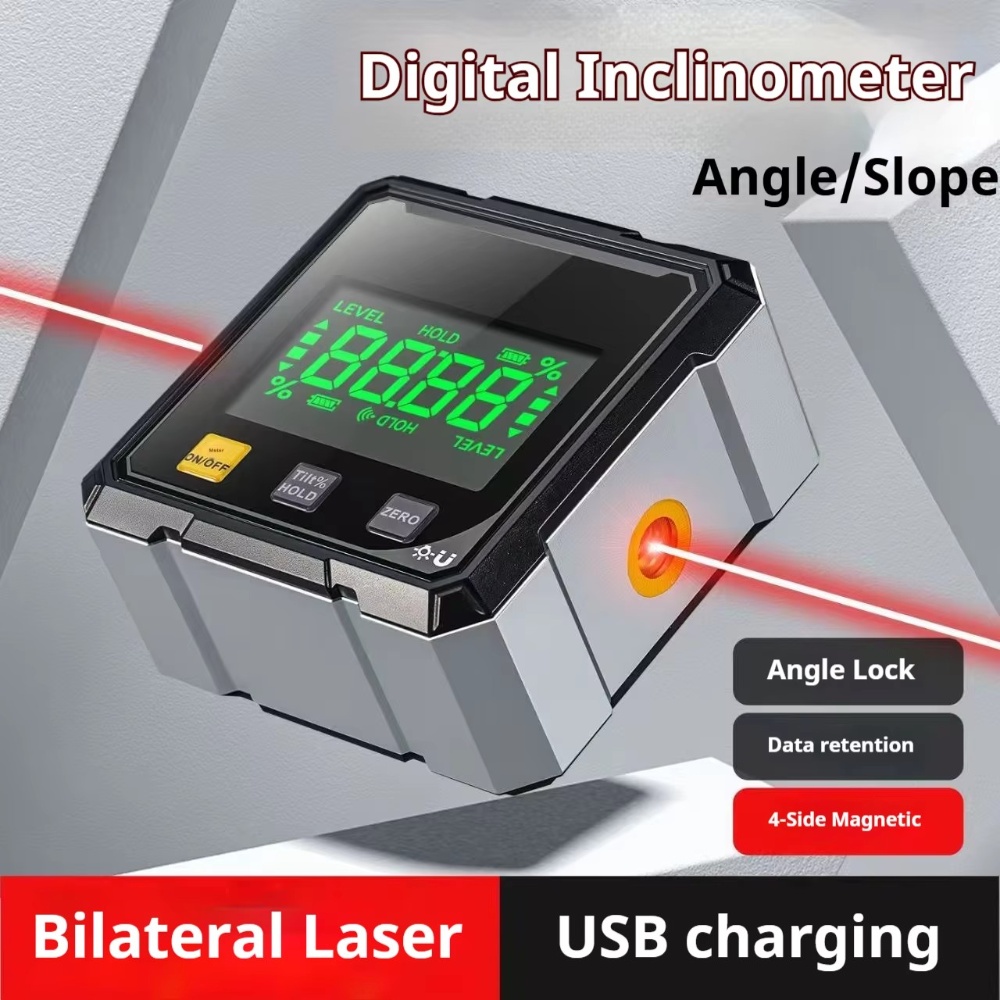

·Laser Configuration: Civil CLASS 3R grade, red line laser

·Custom Laser Options: Red/Green light, line/crosshair beam, civil grade /industrial grade.

Features

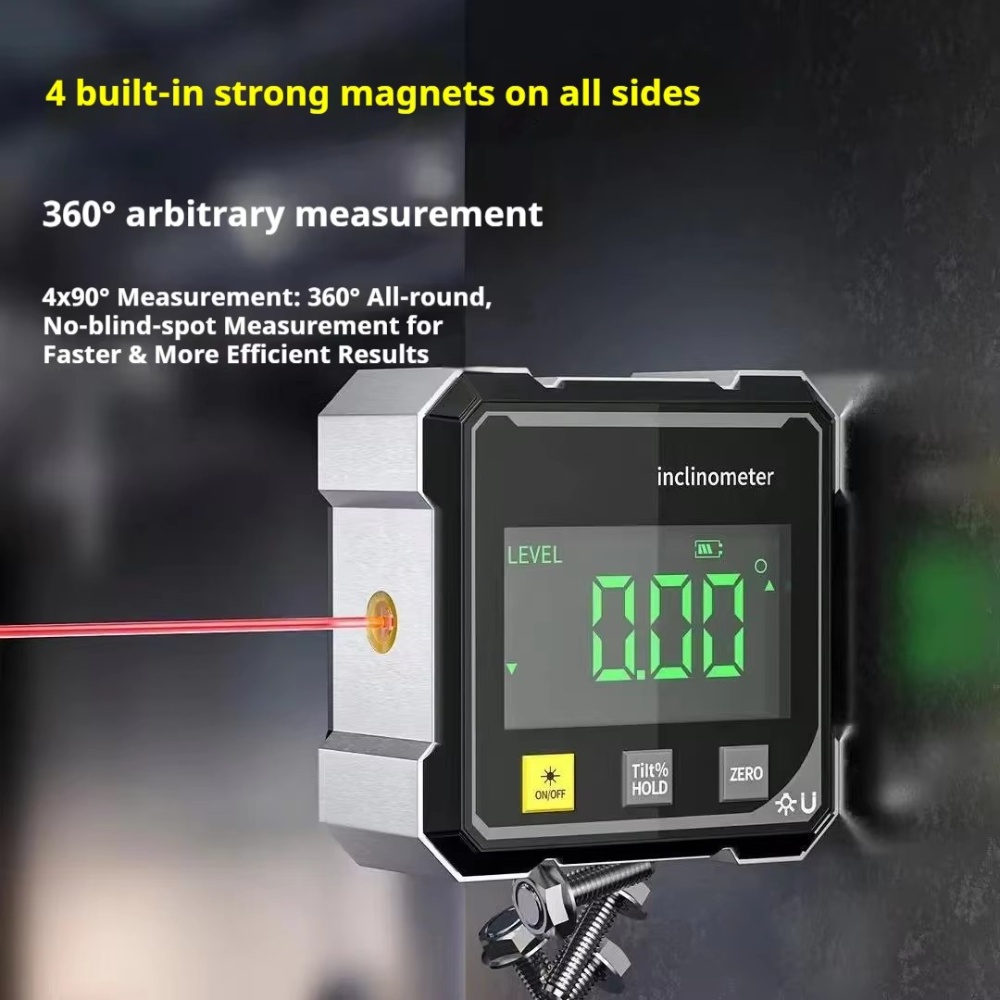

Measuring Range: 4 x 90°

Accuracy: ±0.2°

Resolution: 0.05°

Repeatability: ±0.1°

Operating Temperature: -10~50℃

Magnets on 4 surfaces.

Power Supply: 3.7V lithium Battery 400mAh

Size: 61x31x61mm

Aluminum Alloy Housing

Magnetized bottom makes various stick-on measurements simple and accurate.

Absolute zero measurement based onthe level surface.

Specification
