Drill Press

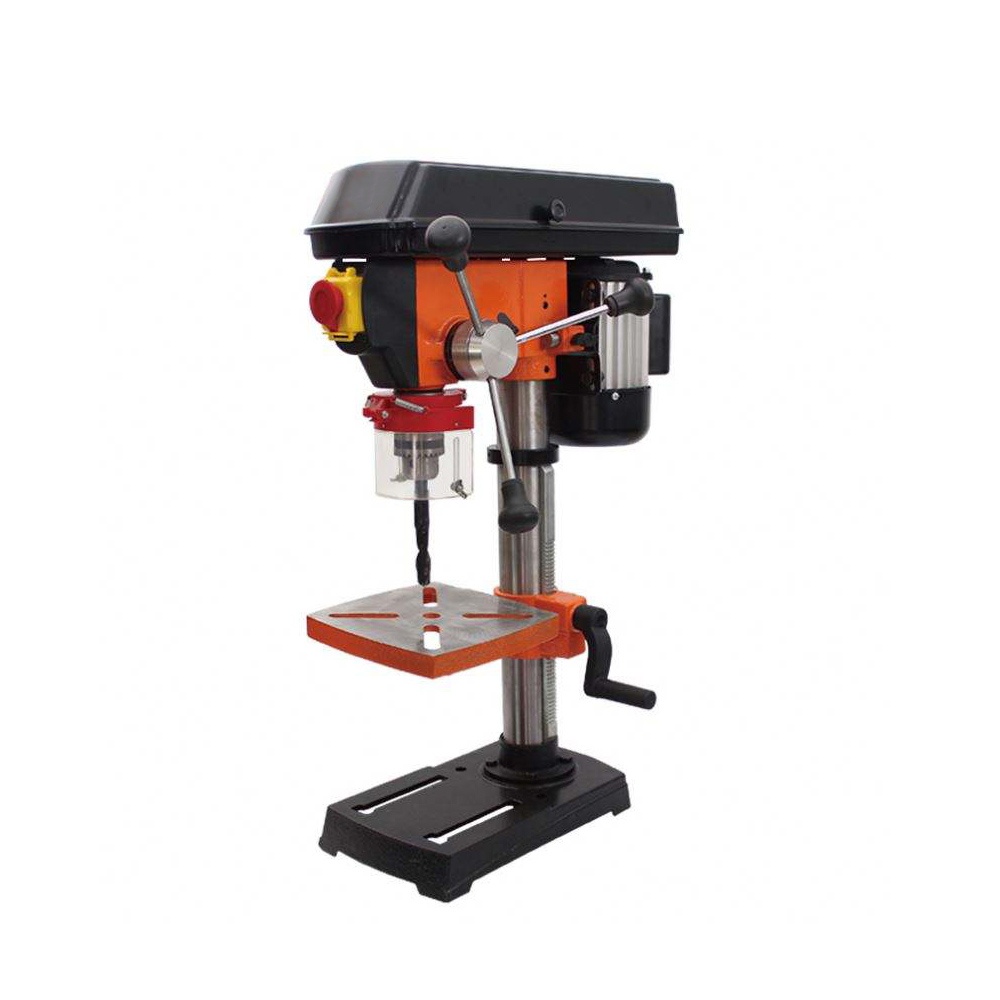

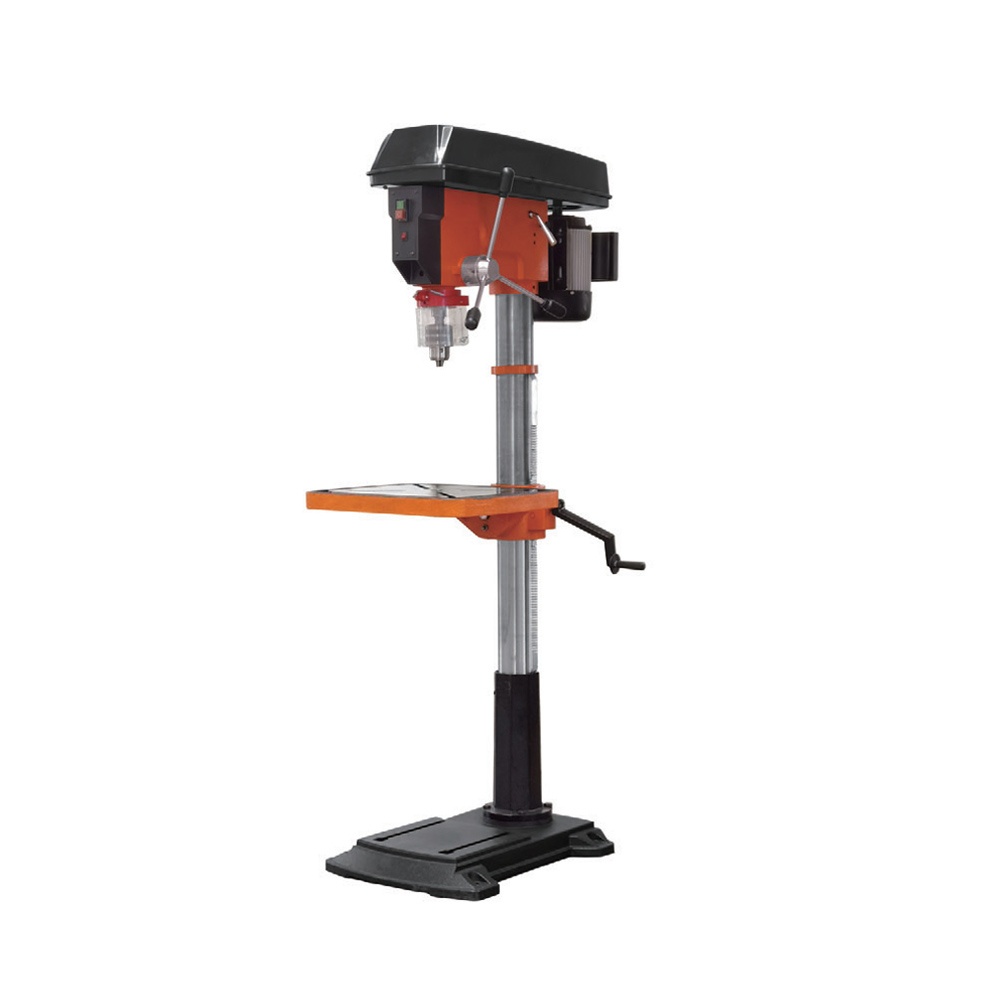

12 Speed Power Tool Electric Bench Drill Press Machine for Woodworking
Quantity
ltem No.
Description
12 Speed for different application
Rack&pinion for accurate table height adjustments
Adjustable drill depth for accurate measurements and repetitive drilling
Cast iron main head,work table and base
Optional precision laser
Features

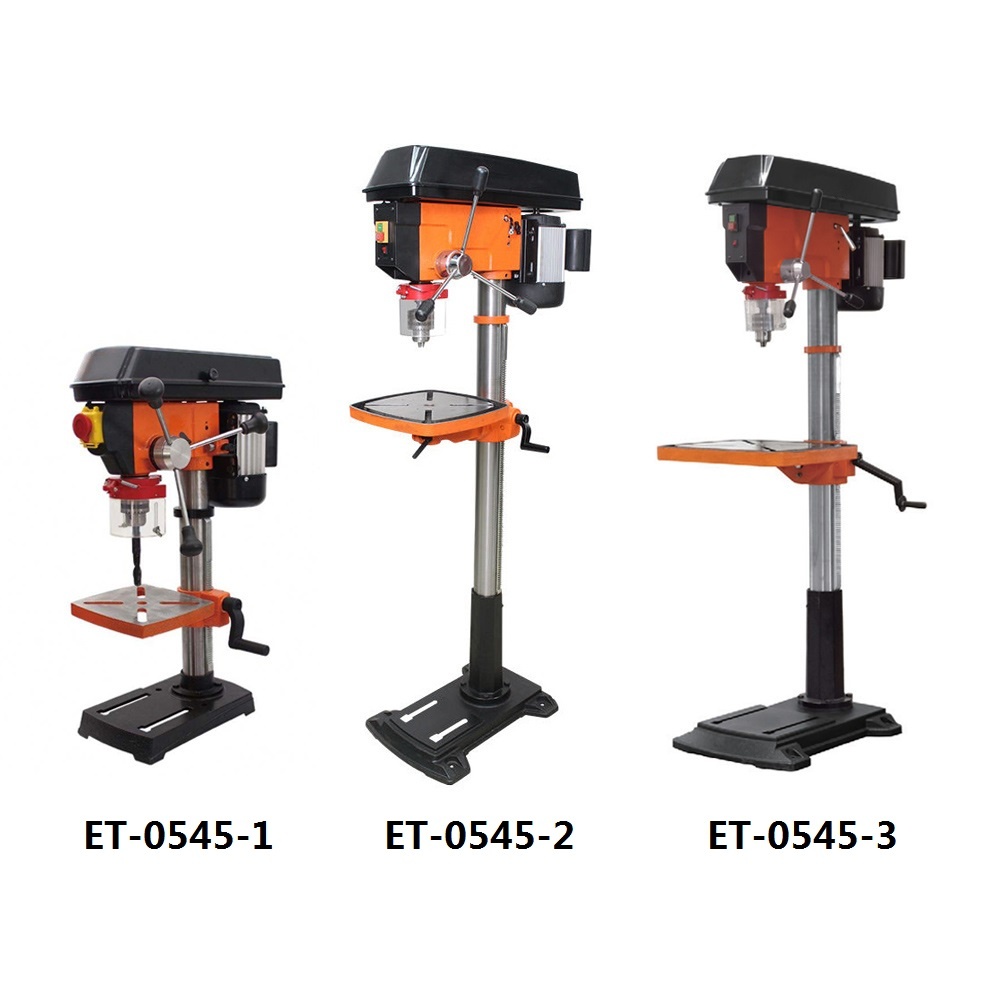

Model | ET-0545-1 | ET-0545-2 | ET-0545-3 |
Rated Input Power | S1/550W | S1/750W | S1/1100W |
Motor Speed(50Hz) | 1490rpm | 1490rpm | 1490rpm |
Max. Chuck Capacity | 16mm | 20mm | 32mm |
Spindle Travel | 60mm | 100mm | 120mm |
Taper | JT33/B16 | JT33/B16 | MT3/B22 |
No. of Speed | 12 | 12 | 12 |
Speed Range | 50Hz/230-2470rpm | 50Hz/260-3000rpm | 50Hz/200-2000rpm |
Swing | 250mm | 380mm | 515mm |
Table Size | 190*190mm | 293*293mm | 425*475mm |
Column Dia. | 59.5mm | 70mm | 92mm |
Base Size | 341*208mm | 535*380mm | 610*460mm |
Machine Height | 870mm | 1630mm | 1700mm |
Carton Size | 710*480*280mm | 1440*570*320mm | 1150*643*310mm,650*520*320mm |
N.W./G.W. | 27/29kg | 69/73kg | 75/79kg,53/56kg |
Specification
