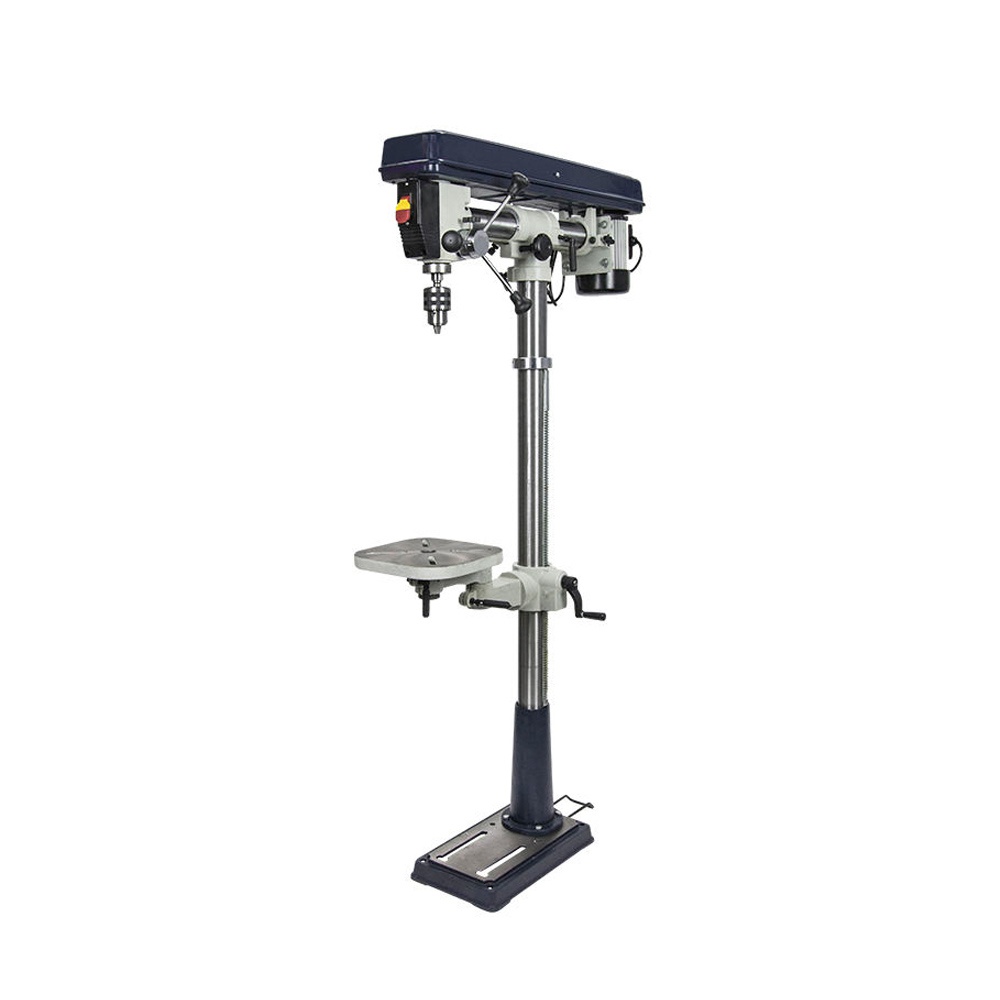

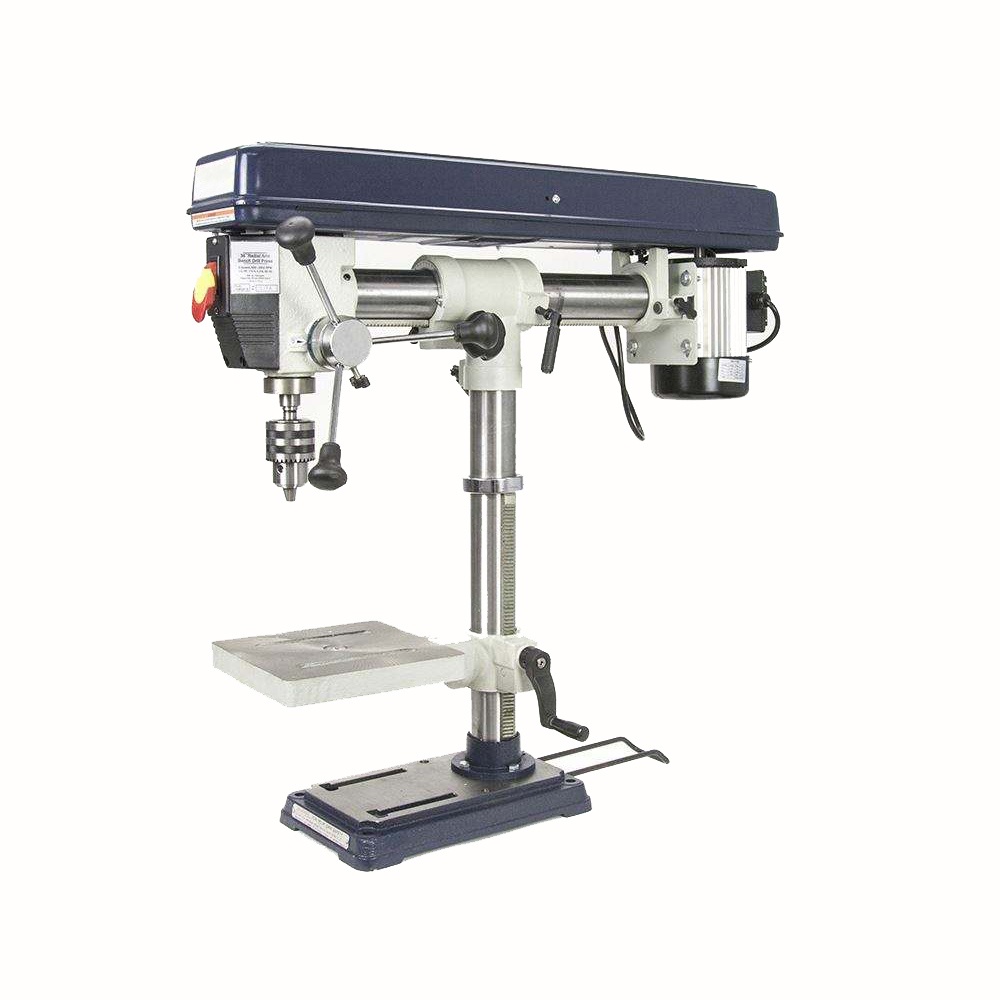

5 Speed Radial Drill Press
230V-240V 550W Benchtop 5-speed Radial Drill Press
Quantity
ltem No.
Description
This 5-speed radial drill press features variable swing up to 420mm and pivoting heads for drilling at just about any angle.
Cast iron Base with extension support
5 Speeds for different application
Adjustable swing up to 420mm.
Features

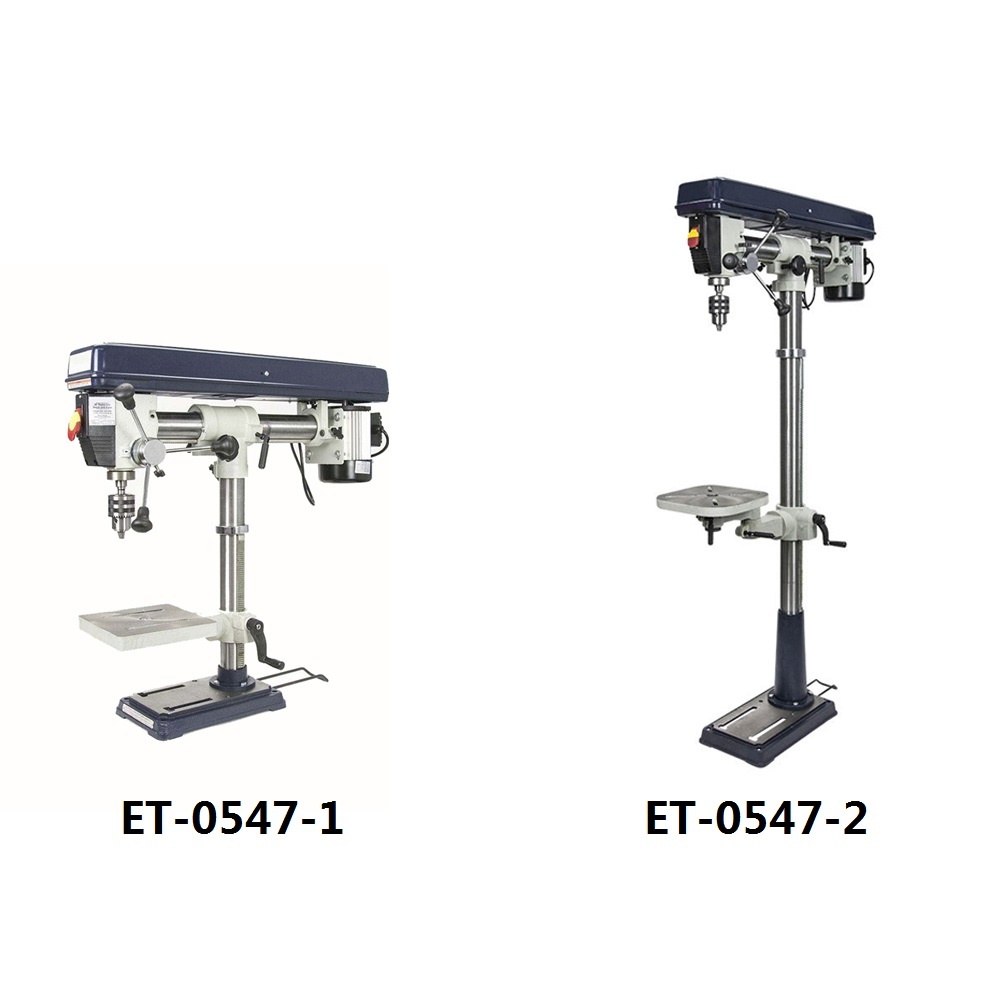

Model | ET-0547-1 | ET-0547-2 |
Rated Input Power | S1/550W | S1/550W |
Motor Speed(50Hz) | 1490rpm | 1490rpm |
Max. Chuck Capacity | 16mm | 16mm |
Spindle Travel | 80mm | 80mm |
Taper | JT33/MT2 | JT33/MT2 |
No. of Speed | 5 | 5 |
Speed Range | 50Hz/416-2400rpm | 50Hz/416-2400rpm |
Swing | 280-840mm | 280-840mm |
Table Size | 220*230mm | Φ290mm |
Column Dia. | 60mm | 60mm |
Base Size | 340*215mm | 420*246mm |
Machine Height | 800mm | 1638mm |
Carton Size | 900*460*320mm | 1420*500*260mm |
N.W./G.W. | 37/40kg | 55/58kg |
Specification
