Magnetic Drill
Magnetic Drill Press Drilling Stand Machine
Quantity
ltem No.
Description
Compact design with heavy duty magnet
Sturdy feed handles
More powerful Magnetic
NOTE: HSS jobber drills with optional drill chuck can only be used in manual feed
Standard Accessories:
1.Coolant tank kit
2.Safety chain
3.Blow mould plastic case
Features

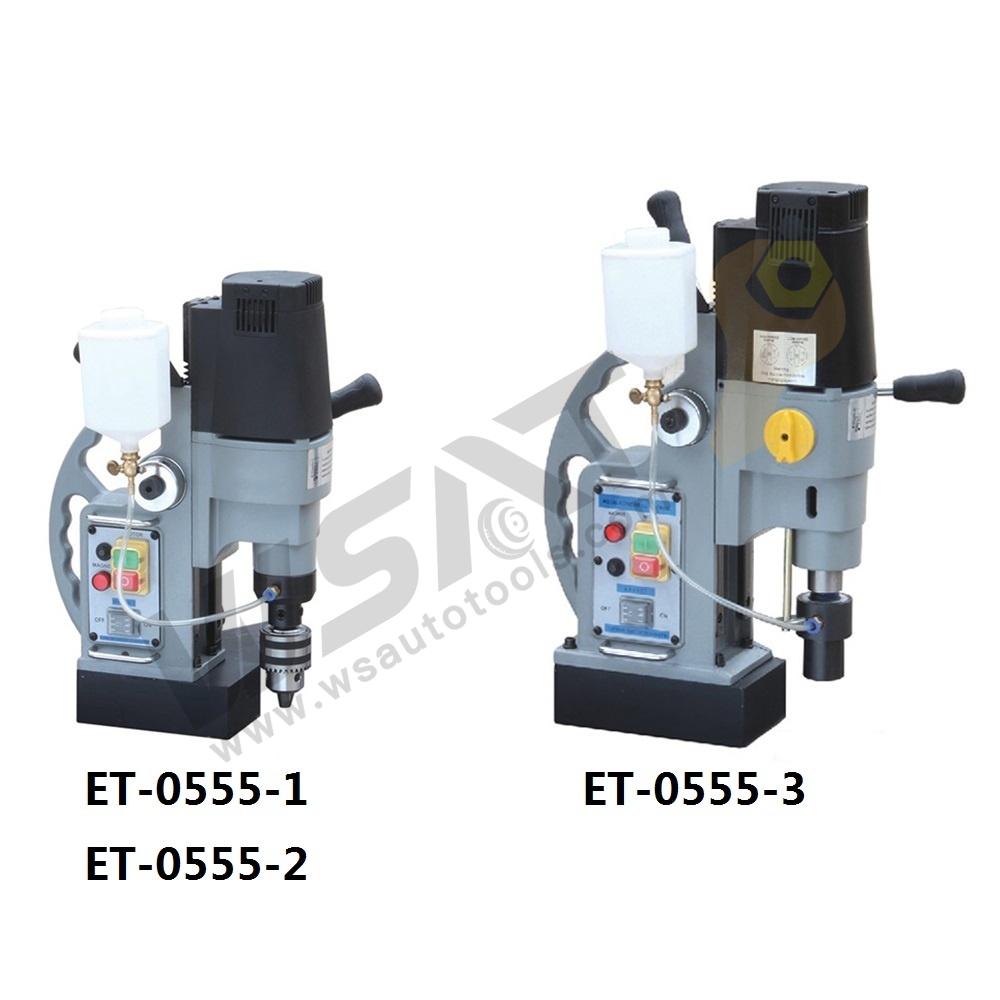

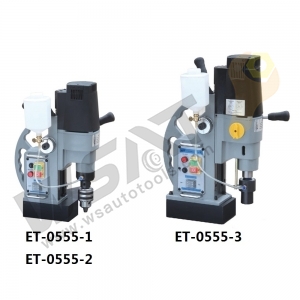

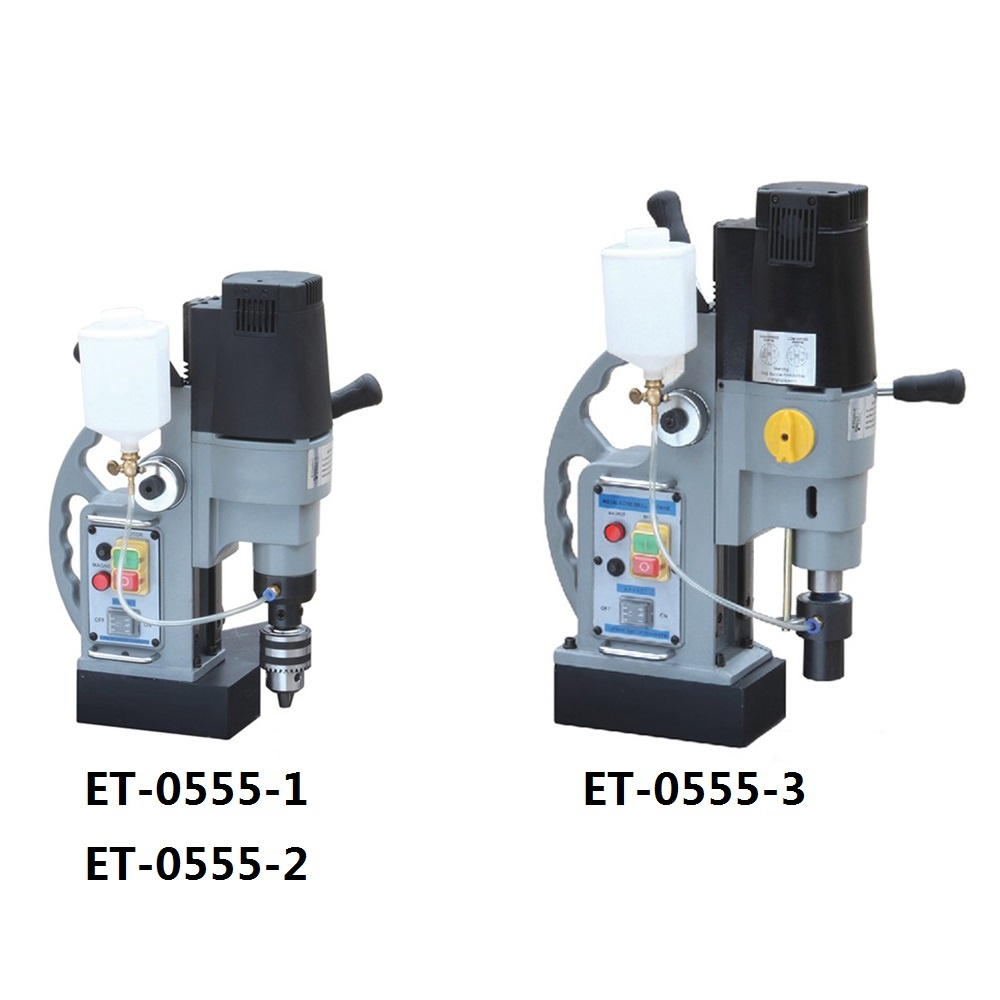

Model | ET-0555-1 | ET-0555-2 | ET-0555-3 |
Motor Power | 900W | 1100W | 1500W |
Magnet Adhesion | 8500N | 11000N | 15000N |
Core Drill | Φ12-20mm | Φ12-30mm | Φ12-50mm |
Weldon Shank | Φ19.05mm | Φ19.05mm | Φ19.05mm |
Twist Drill | Φ13mm | Φ16mm | Φ31mm |
Travel | 160mm | 175mm | 160mm |
Spindle Taper | / | / | MT3 |
Speed | 650rpm | 450rpm | 400/600rpm |
Carton Size | 445*390*180mm | 530*460*250mm | 595*485*275mm |
N.W./G.W. | 15/19kg | 19/26kg | 28/37kg |
Specification
