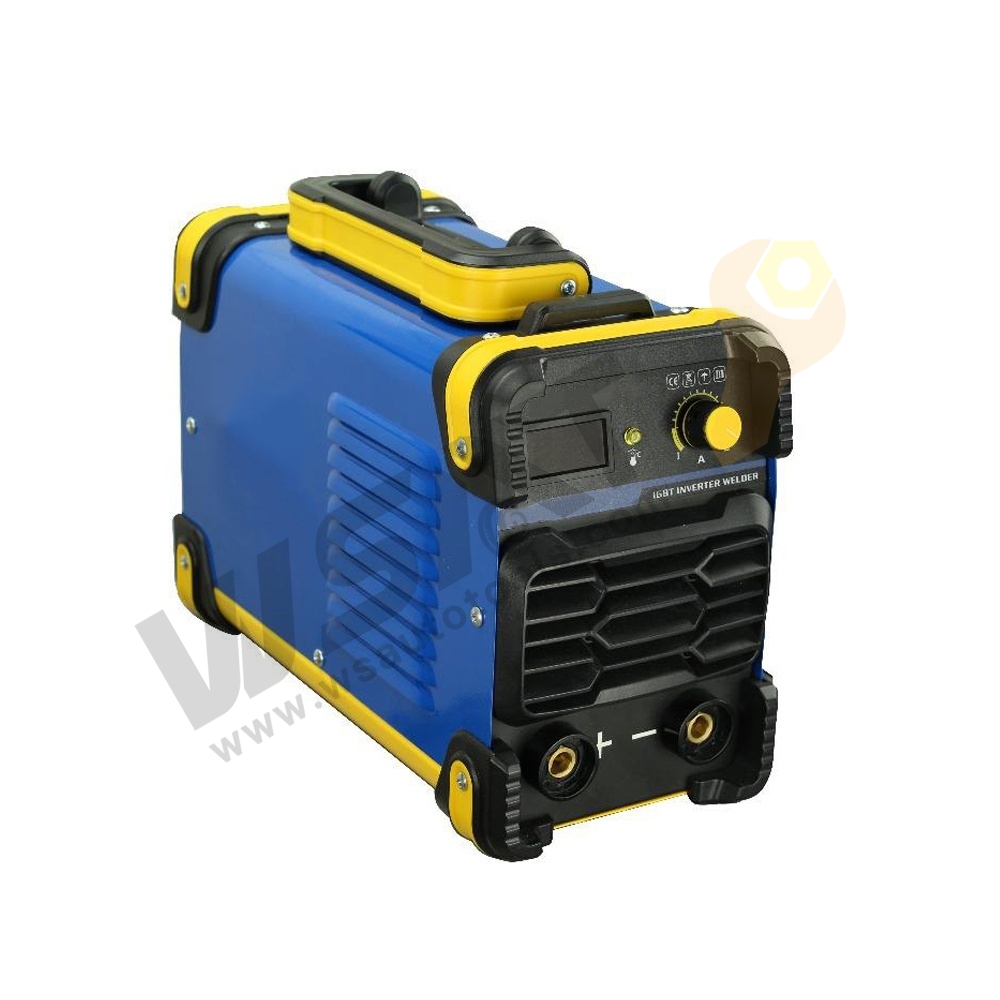

MMA Welder
Single Board IGBT Inverter DC ARC Welding Machine
Quantity
ltem No.
Description
MMA welding (metal arc) does not require shielding gas;protection for weld pool comes from the electrode cover which melts during welding,and forms a protective layer of slag on the weld pool/When the welding is completed and the layer of slag is removed,the finished weld will be discovered underneath.
MMA welding is the oldest and till the most commonly used arc welding process,although the proportion of MMA use is decreasing as gas-shielded welding processes are becoming more popular.
MMA welding is,however,an irreplaceable method for instance when welding outside in windy conditions where using shielding gas would be diffcult.Another important benefit is that electrodes can be bought everywhere,also in small package.
Features
Model No. | 120 | 140 | 160 | 180 | 200 | 220 |
Power Voltage(V) | AC220V±15% 50Hz | AC220V±15% 50Hz | AC220V±15% 50Hz | AC220V±15% 50Hz | AC220V±15% 50Hz | AC220V±15% 50Hz |
Rated Input Capacity(KVA) | 5.1 | 6.1 | 7.2 | 8.3 | 9.6 | 10.8 |
Rated Input Current(A) | 24 | 27.8 | 32.8 | 38.1 | 43.5 | 49.3 |
Rated Output(A) | 120A/24.8V | 140A/25.6V | 160A/26.4V | 180A/27.2V | 200A/28V | 220A/28.8V |
Output Current Range(A) | 30-120 | 30-140 | 30-160 | 30-180 | 30-200 | 30-220 |
No-load Voltage(V) | 56 | 56 | 56 | 56 | 56 | 56 |

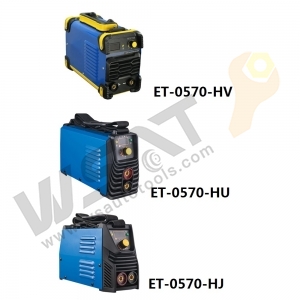

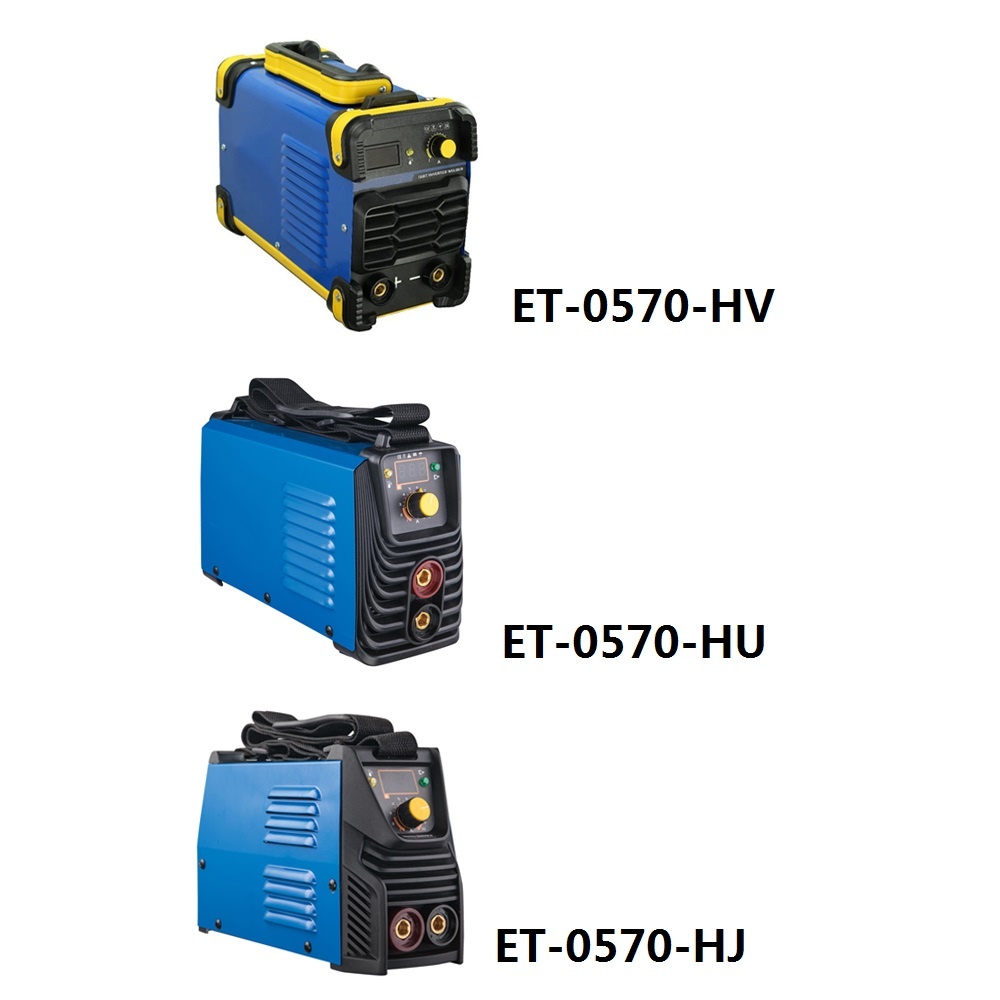

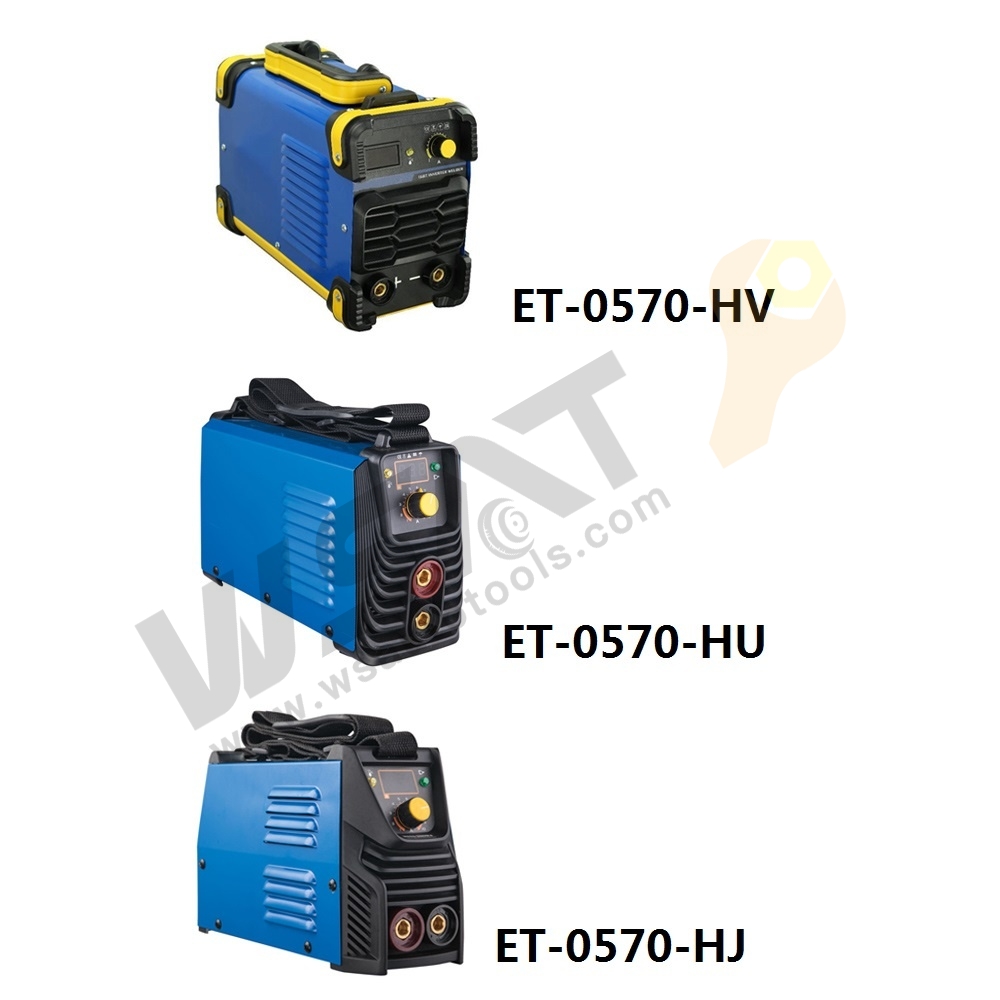

HV Series/Dimension(mm) | 395*260*300 | 395*260*300 | 395*260*300 | 395*260*300 | 395*260*300 | 395*260*300 |
HV Series/Weight(kg) | 5.3 | 5.4 | 5.6 | 5.7 | 5.8 | 6.0 |
HJ Series/Dimension(mm) | 310*195*230 | 310*195*230 | 310*195*230 | 310*195*230 | 310*195*230 | 310*195*230 |
HJ Series/Weight(kg) | 4.3 | 4.4 | 4.6 | 4.7 | 4.8 | 5.0 |
HU Series/Dimension(mm) | 310*195*230 | 310*195*230 | 310*195*230 | 310*195*230 | 310*195*230 | 310*195*230 |
HU Series/Weight(kg) | 4.3 | 4.4 | 4.6 | 4.7 | 4.8 | 5.0 |
Specification
