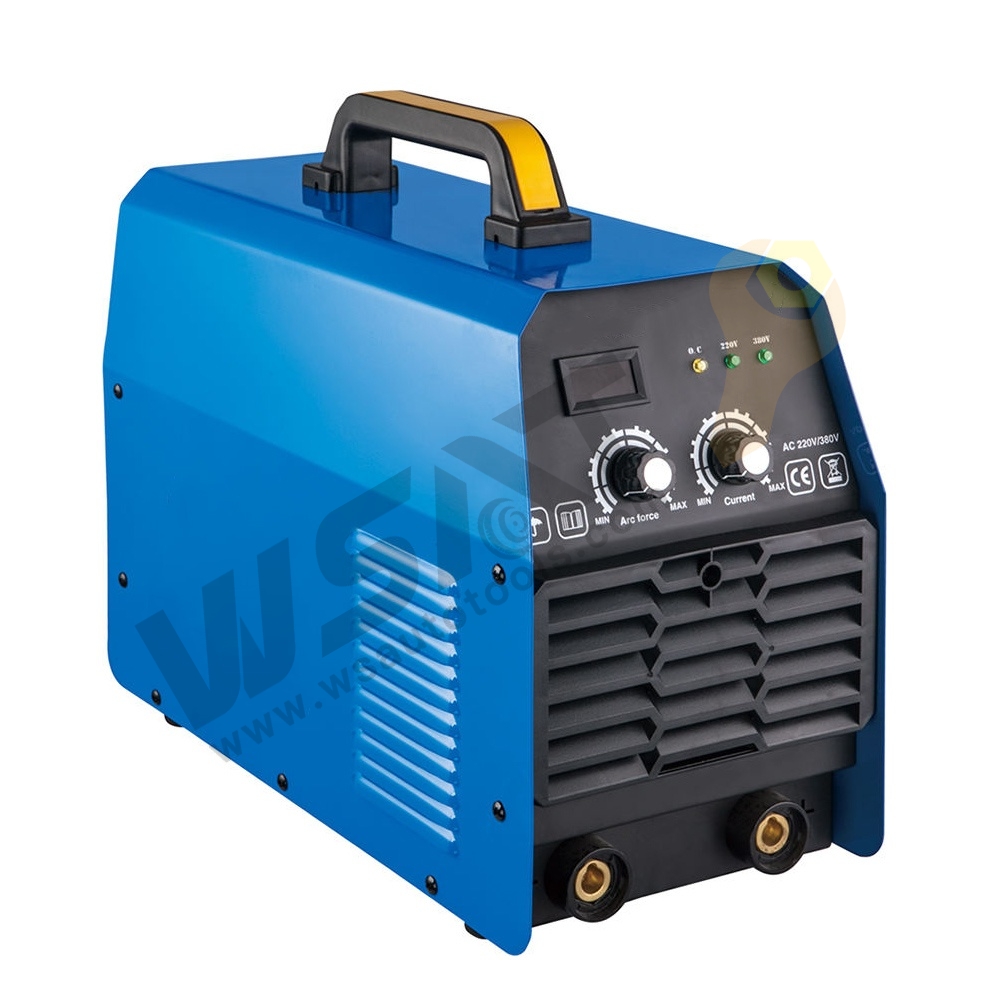

MMA Welder

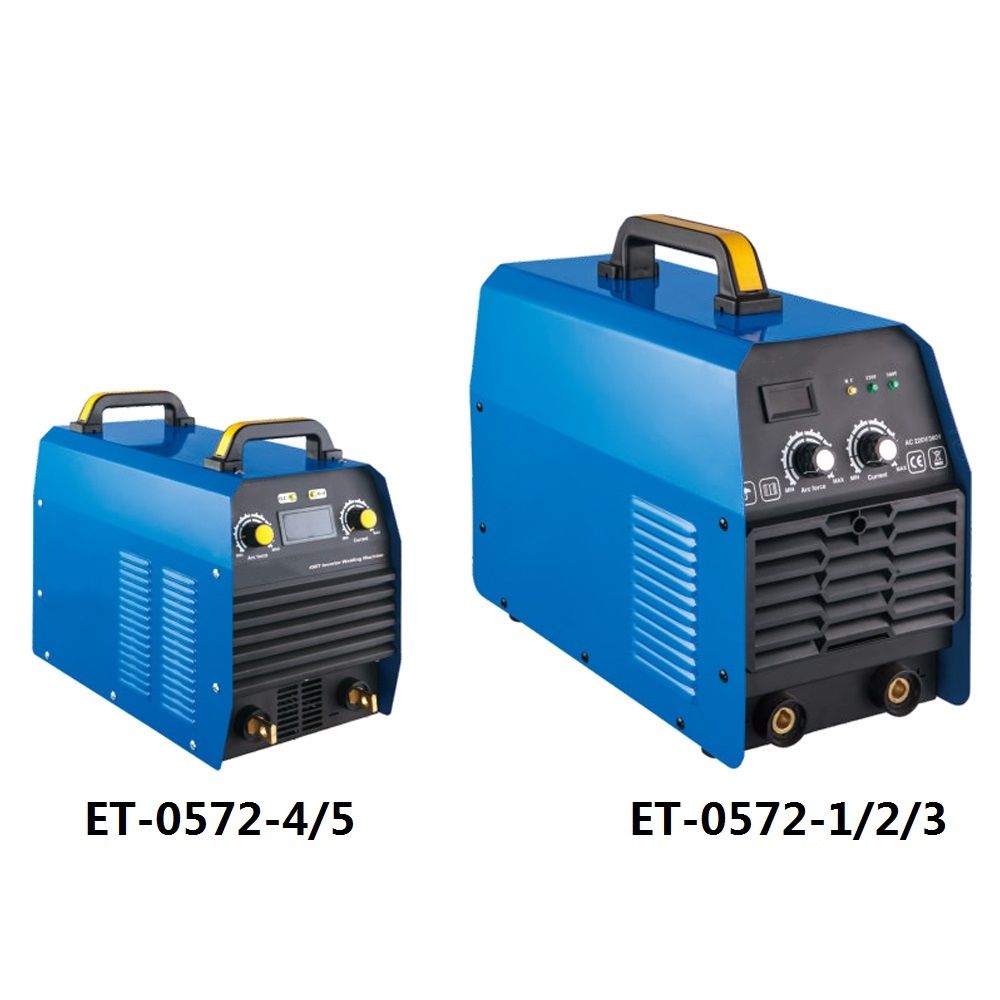

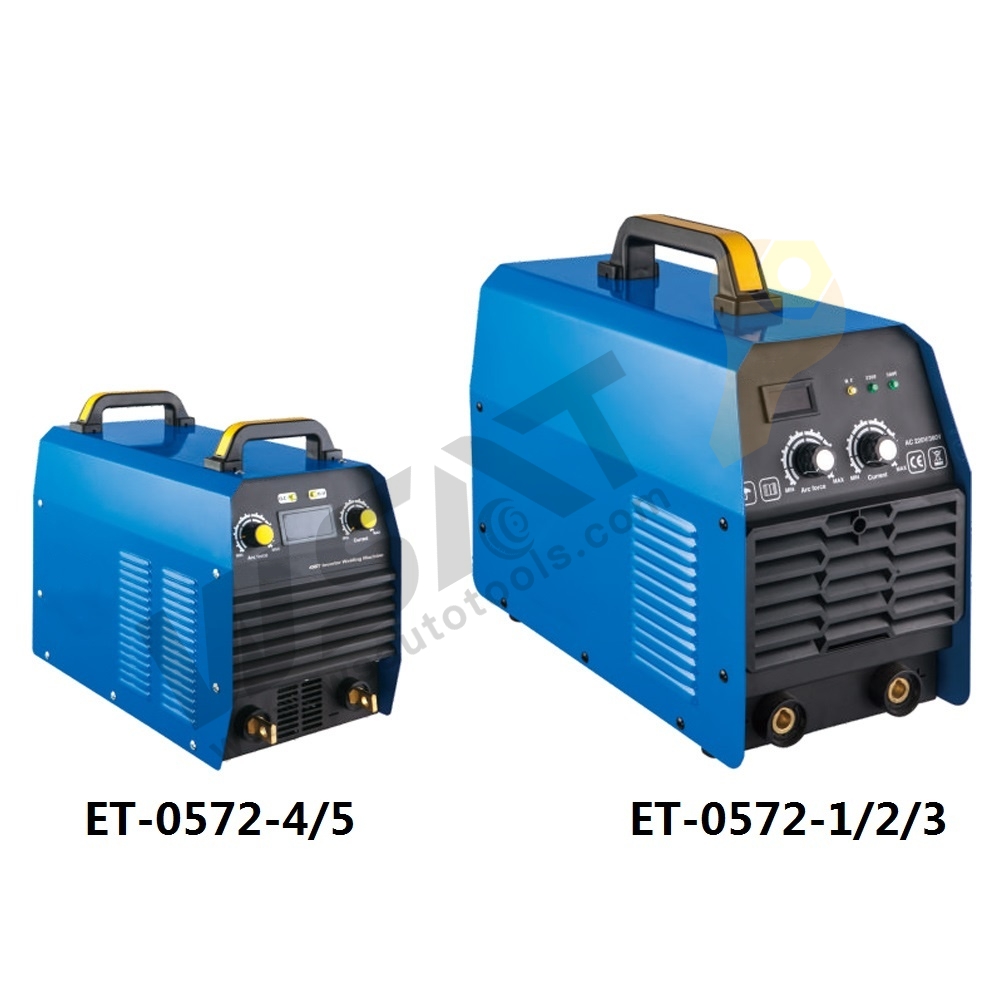

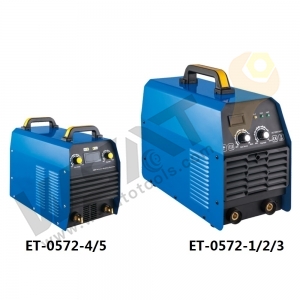

ET-0572-1/ET-0572-2/ET-0572-3/ET-0572-4/ET-0572-5

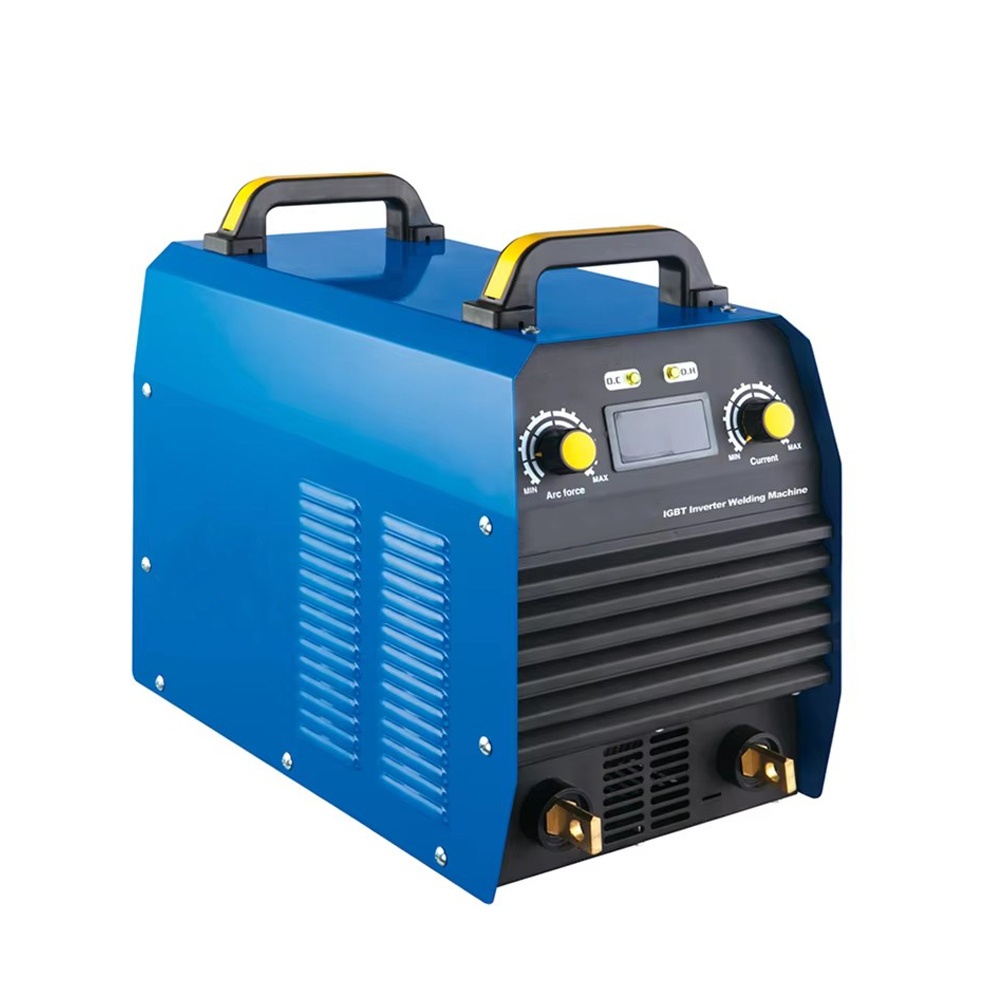

IGBT Inverter DC ARC Welding Machine

Quantity

ltem No.

Description

·Use powerful IGBT switches and advanced inverter control technology.

·Excellent arc characteristics and good welding performance.

·With anti-stick,hot start,arc force,strong compensation capability.

·With Auto protection functions of over-current and over-heating.

·Single phase portable fan-cooled MMA inverter welder,in this welding process,an electric arc is created between a coated consumable electrode and the work piece to be welded,causing the parent material to be fused together and the electrode to melt.

Features

Model No.

ET-0572-1

ET-0572-2

ET-0572-3

ET-0572-4

ET-0572-5

Power Voltage(V)

AC220V±15% 50Hz,AC380V±15% 50Hz

AC220V±15% 50Hz,AC380V±15% 50Hz

AC220V±15% 50Hz,AC380V±15% 50Hz

AC220V±15% 50Hz

AC220V±15% 50Hz

Rated Input Capacity(KVA)

7.3/7.8

7.3/8.5

7.3/10.5

10

20

Rated Input Current(A)

11.85

12.9

15.9

27.6

39.6

Rated Output(A/V)

200A/28V

230A/29.2V

270A/30.8V

400A/36V

500A/40V

Output Current Range(A)

30-143/30-200

30-165/30-230

30-165/30-270

40-400

40-500

No-load Voltage(V)

74/59

74/59

74/59

68

68


Dimension(mm)

455*200*330

555*290*410

555*290*410

640*340*525

640*340*525

Weight(kg)

8.5

10.3

11.6

25

30

Specification
