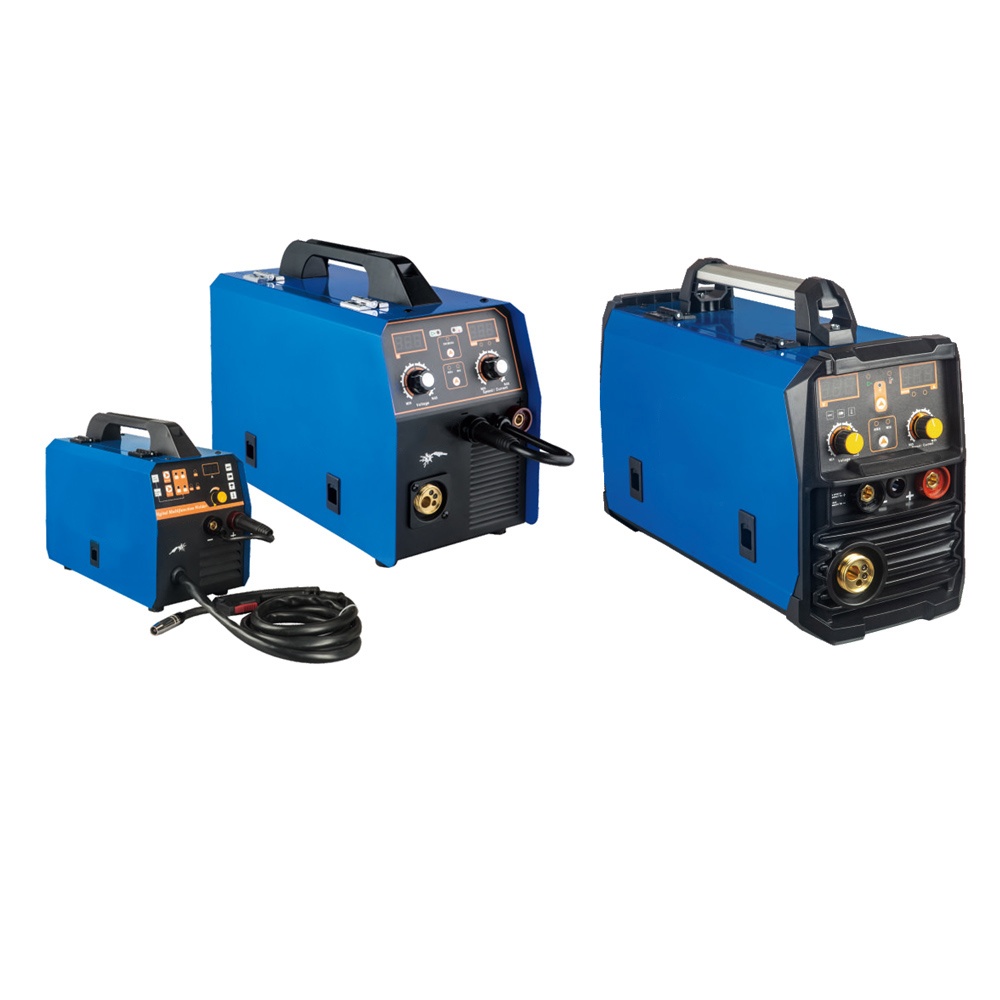

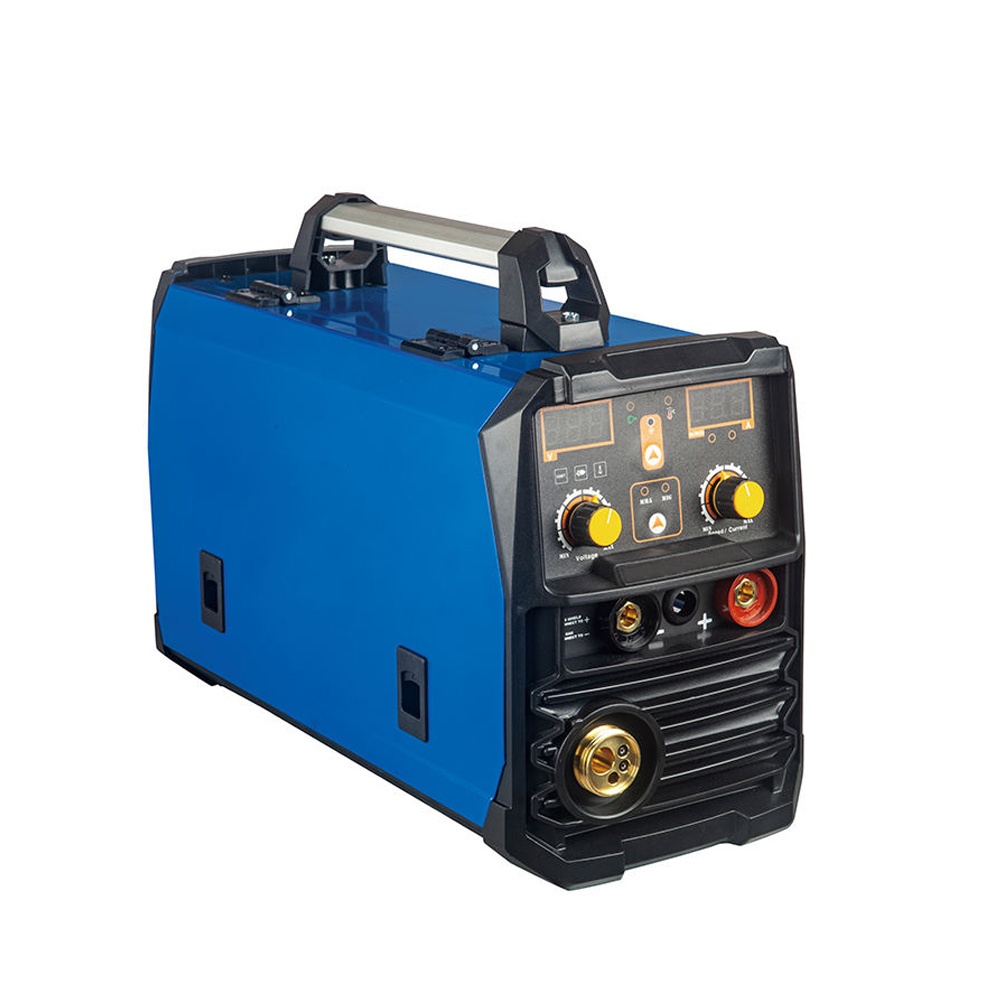

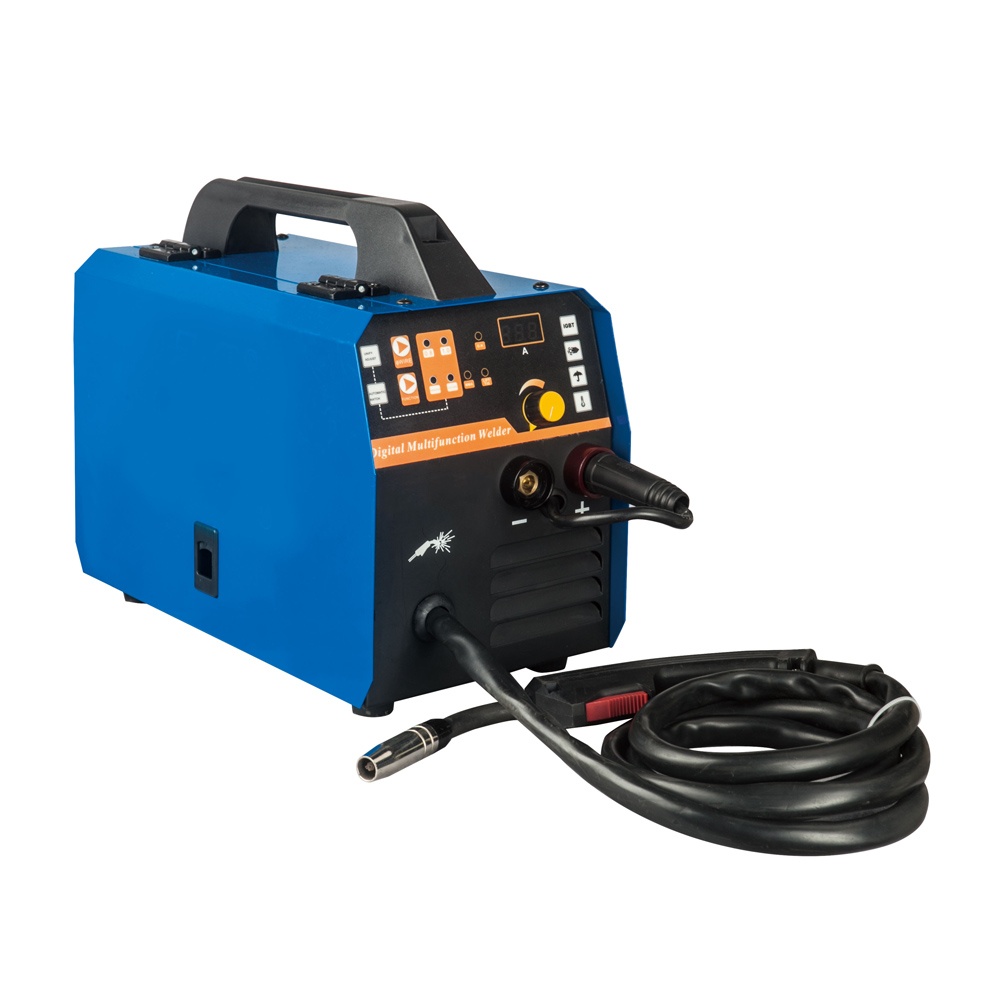

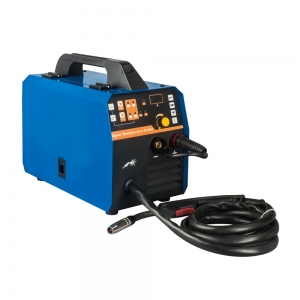

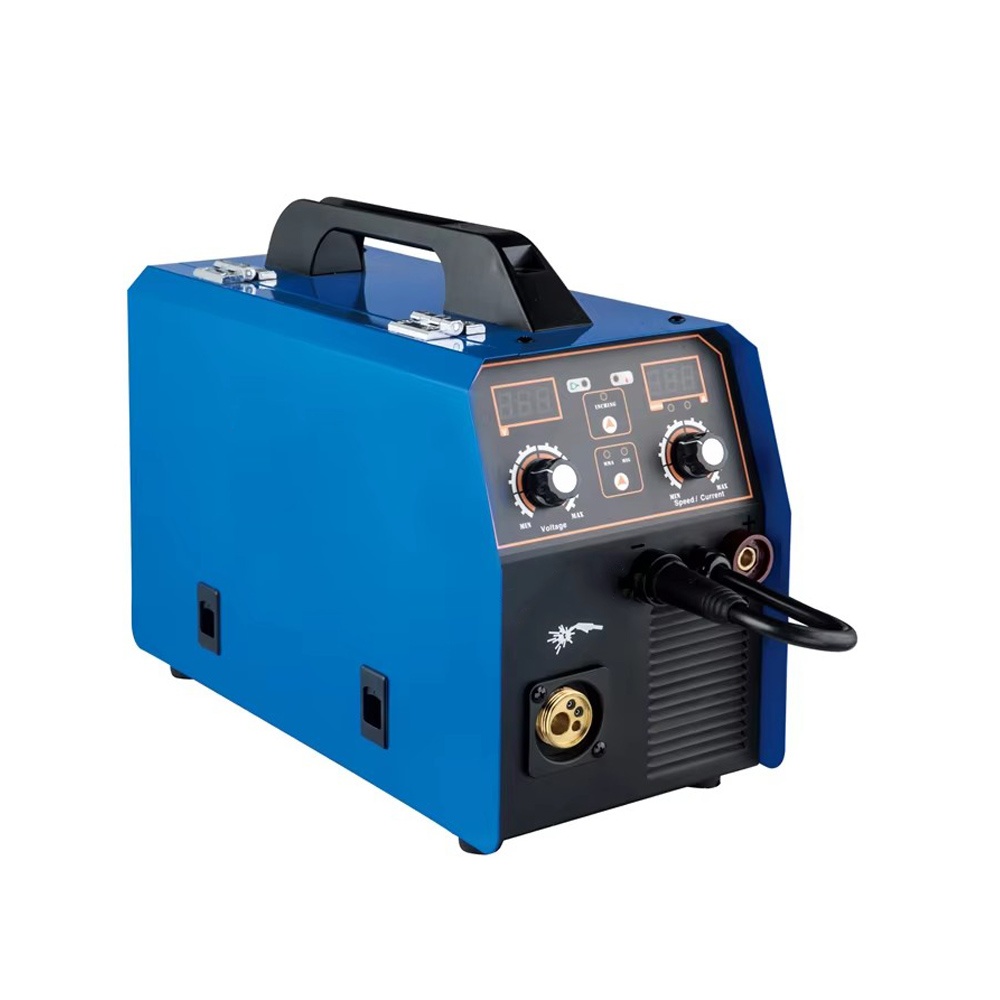

IGBT Inverter MIG/MMA Welding Machine
·IGBT inverter technology,energy saving.
·PWM pulse width control,technology,special performance,accurate current control,stable arc passing.
·Slow wire feeding,arc end with small balls clean,electronic and inductance regulating,shielding gas post flow functions:wellspatter control,good depth of fusion,good welding effect.
·Over current,over heat,over load,over voltage protection.Special appearance wire feeder integrated,portable.
·Suitable for welding mild steel ,low alloy steel metal sheet.
Quantity
ltem No.
Description
·IGBT inverter technology,energy saving.
·PWM pulse width control,technology,special performance,accurate current control,stable arc passing.
·Slow wire feeding,arc end with small balls clean,electronic and inductance regulating,shielding gas post flow functions:wellspatter control,good depth of fusion,good welding effect.
·Over current,over heat,over load,over voltage protection.Special appearance wire feeder integrated,portable.
·Suitable for welding mild steel ,low alloy steel metal sheet.
Features
Model No. | ET-0574-100# | ET-0574-135# | ET-0574-160# | ET-0574-180# | ET-0574-200# | ET-0574-220# |
Power Voltage(V) | AC220V±15% 50/60Hz | AC220V±15% 50/60Hz | AC220V±15% 50/60Hz | AC220V±15% 50/60Hz | AC220V±15% 50/60Hz | AC220V±15% 50/60Hz |
Rated Input Capacity(KVA) | 3.25 | 4.1 | 6.6 | 7.4 | 8.8 | 10.3 |
Rated Input Current(A) | 19 | 20.75 | 22.5 | 23.5 | 26 | 29 |
Actual Output Current (A) | 100A | 135A | 160A | 180A | 200A | 220A |
No-load Voltage(V) | 55 | 55 | 55 | 55 | 55 | 55 |
Dimension(mm) | 495*350*400 | 495*350*400 | 495*350*400 | 495*350*400 | 495*350*400 | 495*350*400 |
Weight(kg) | 10.8 | 12 | 13 | 13.5 | 13.5 | 13.5 |
Specification
