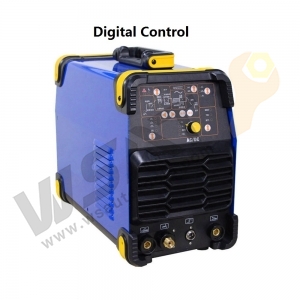

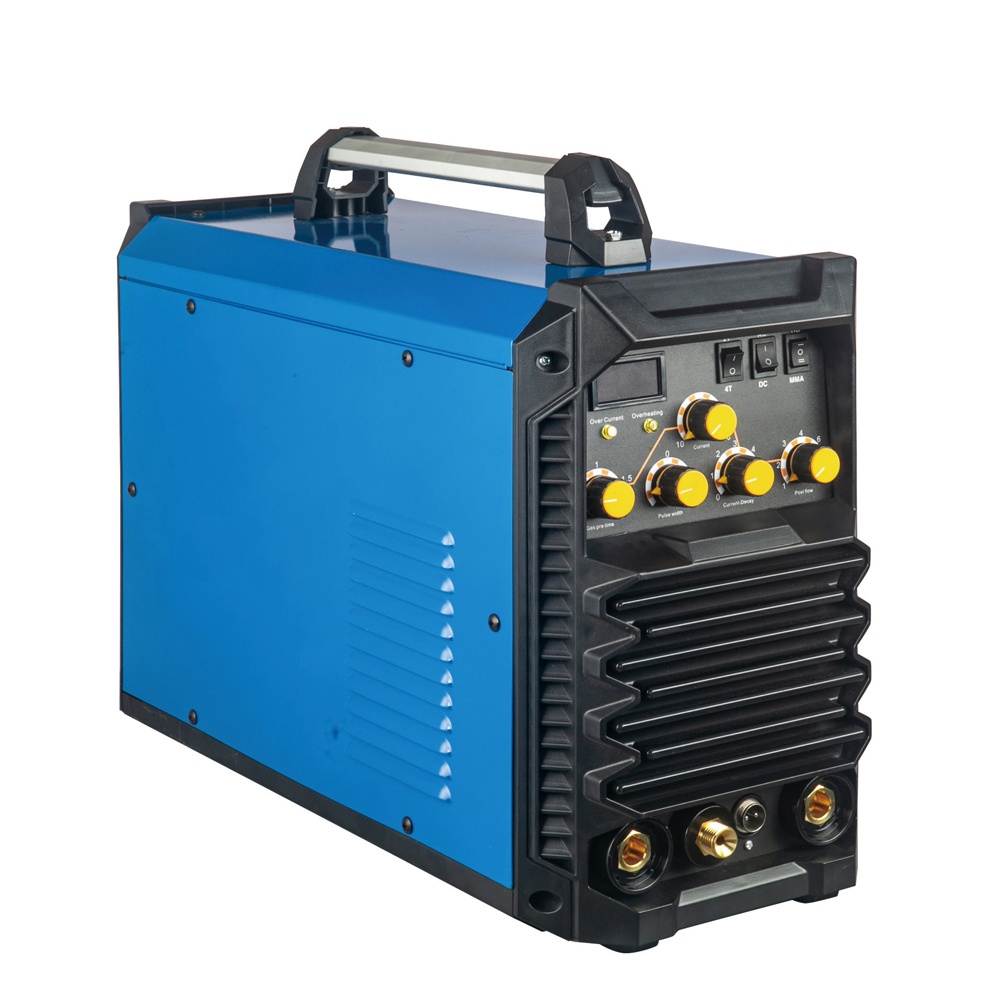

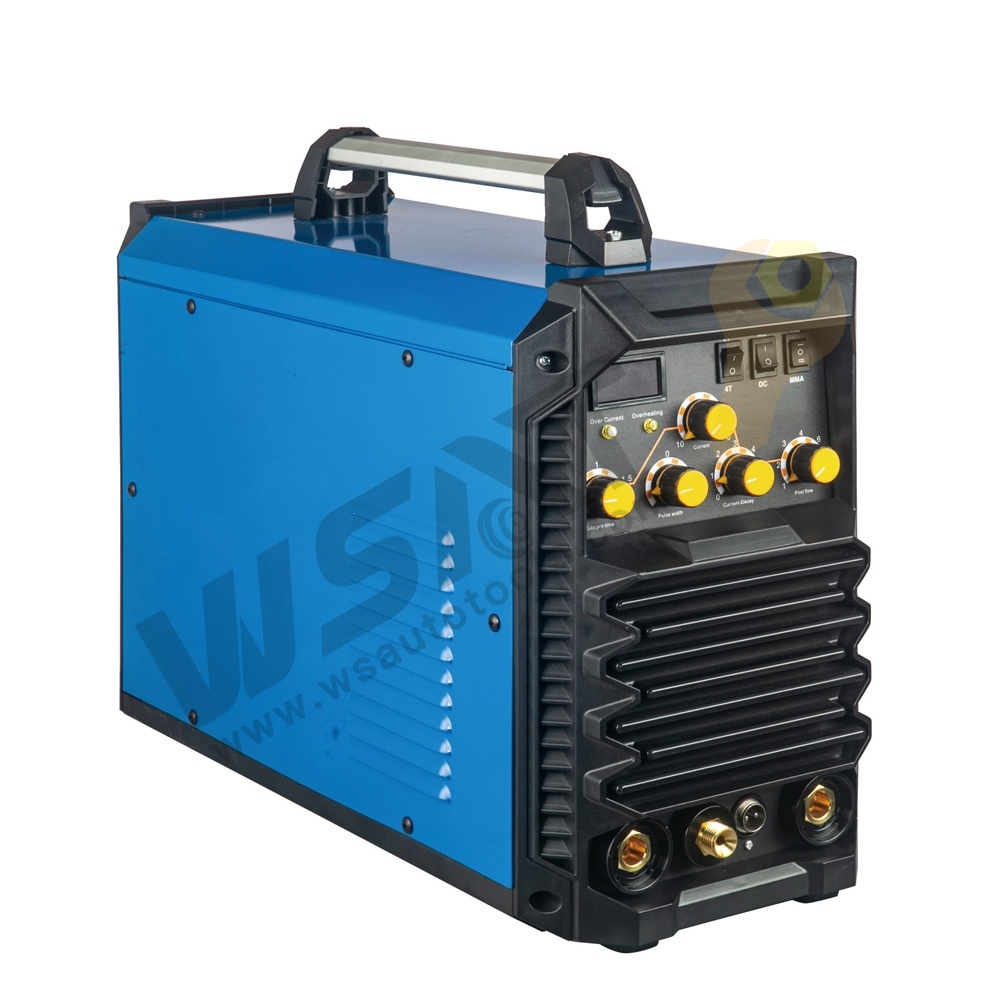

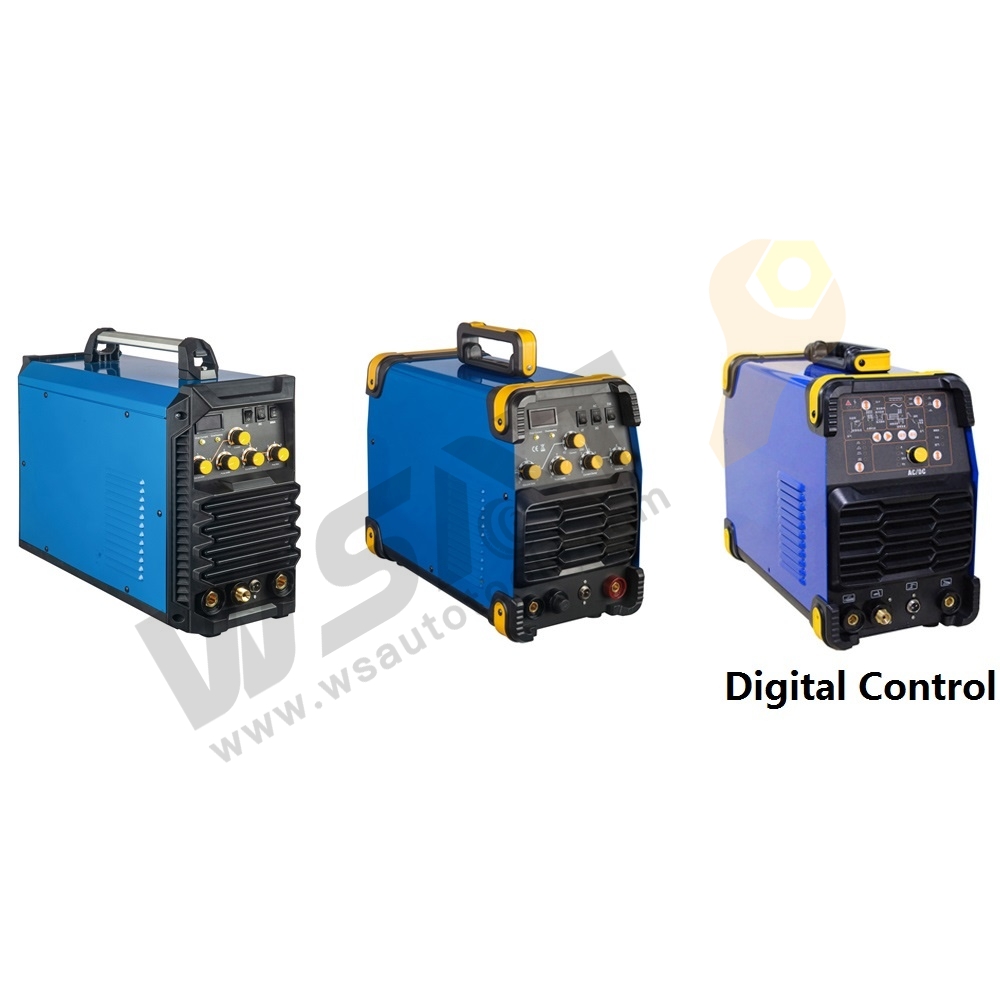

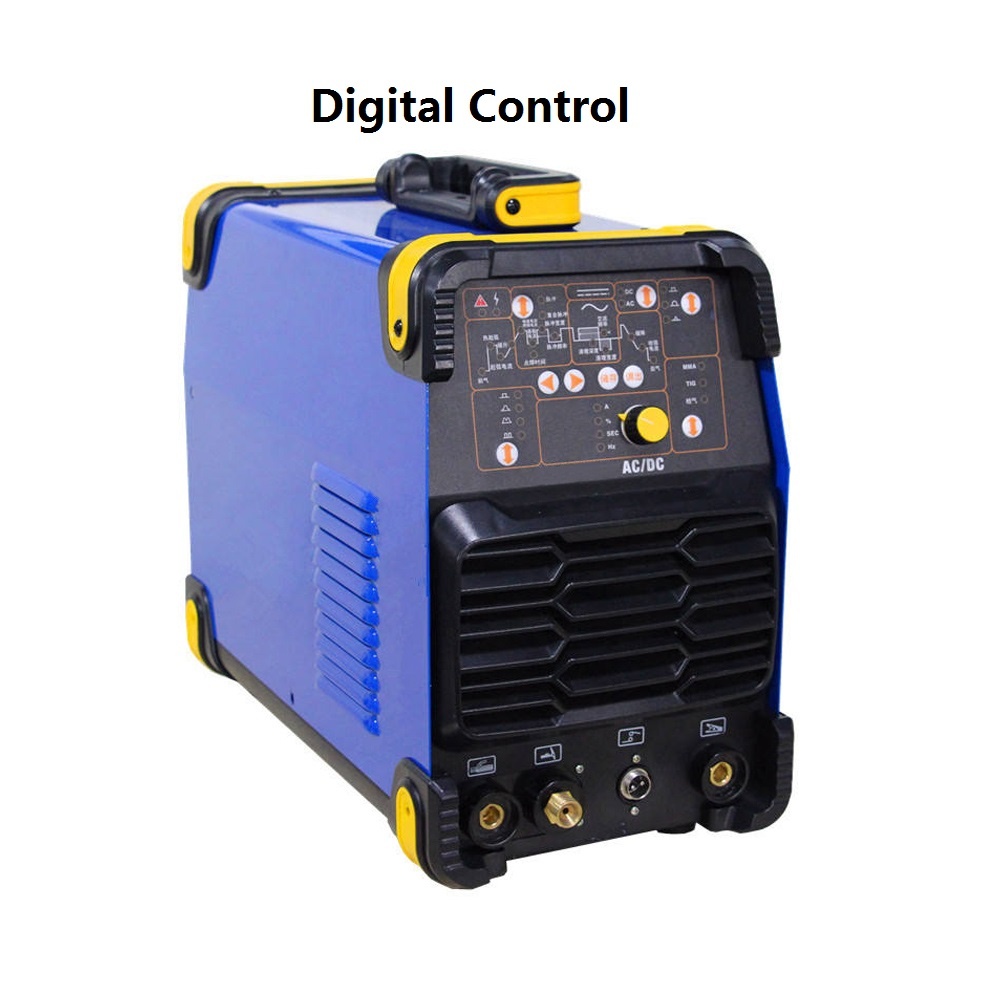

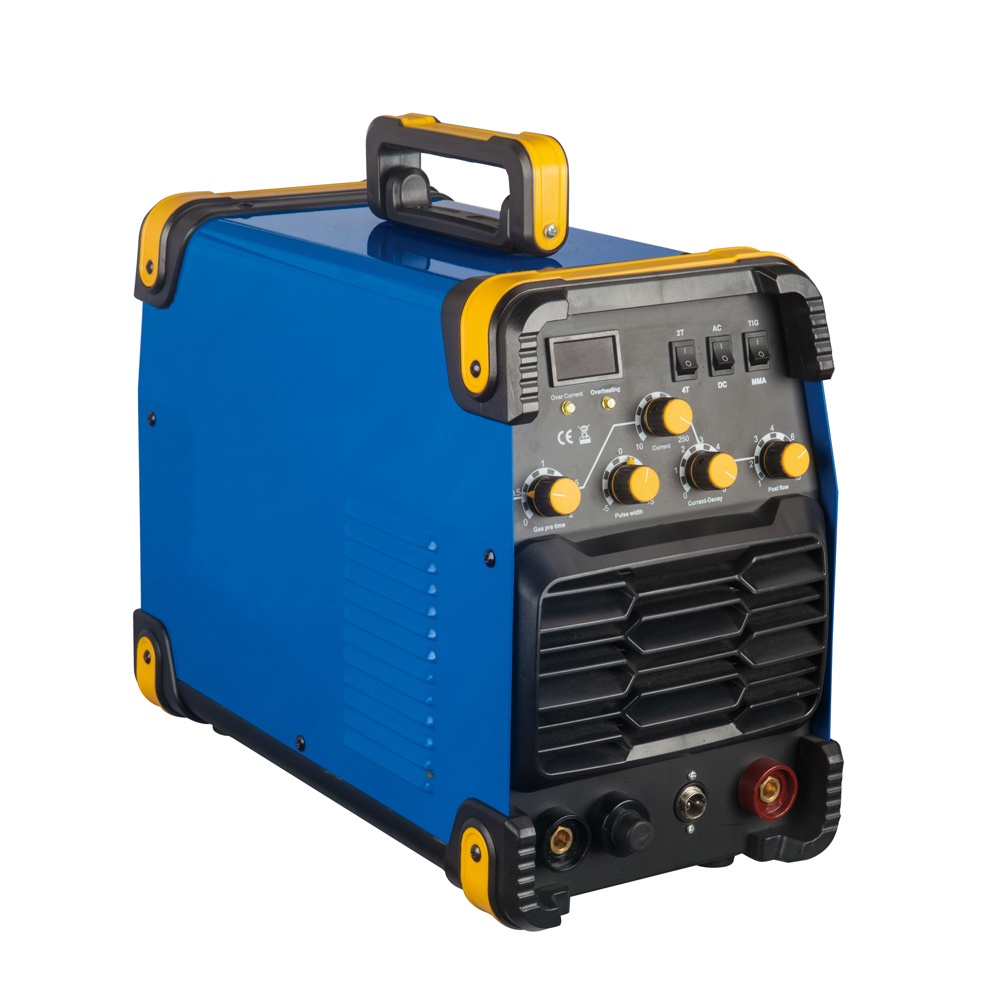

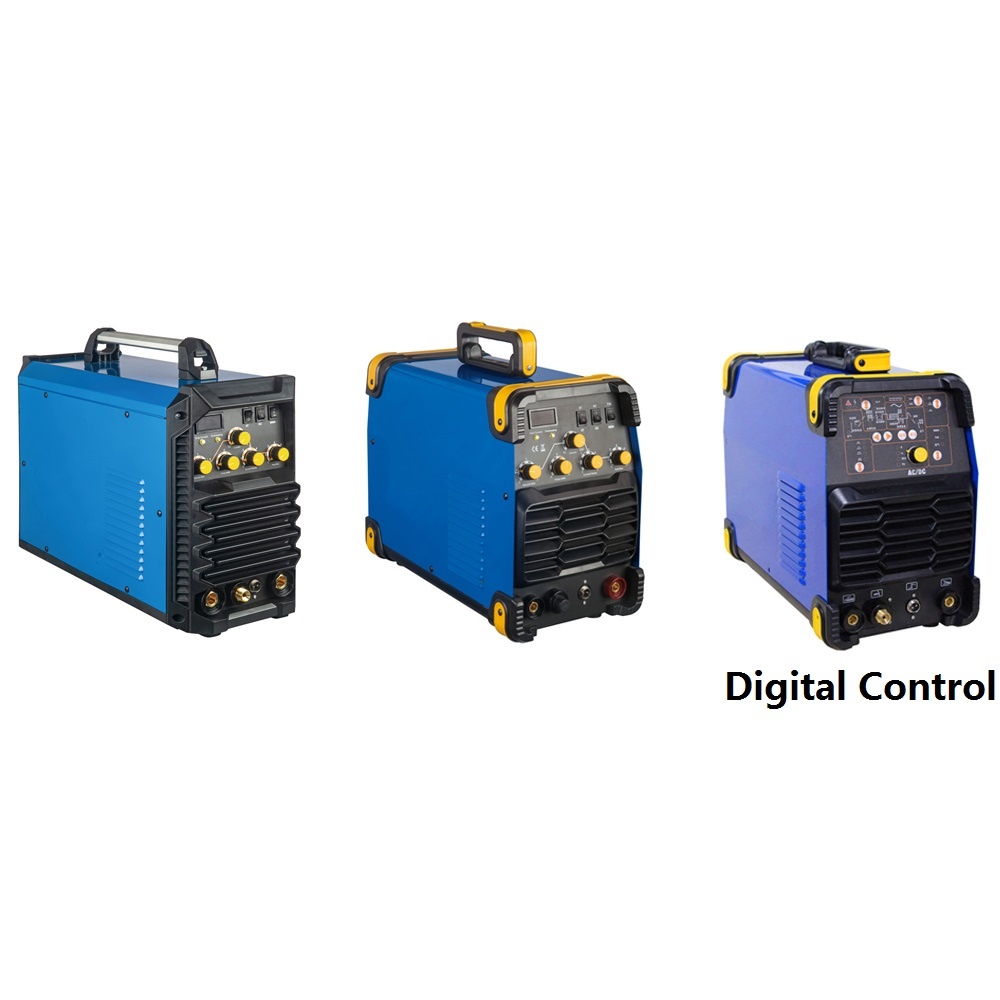

TIG AC/DC Inverter Welding Machine

ET-0578-1/ET-0578-2

·Quality square wave power supply,stable arc,HF arc stabilization.

·Super strong oxidization film removal capability,cleaning width can be adjusted continuously,ensure good weld surface.

·Easy arc-starting,stable welding current,high speed of dynamic response;concentrative arc,AC welding unbiased magnetic;perfect welding seam forming.

·Phase lack protection,over-current,over-heat,over-voltage protect function,make the product more safety and reliable.

·DC function can be used for welding stainless,alloy steel,carbon steel,copper and other no-ferrous metal;AC function can be used for welding aluminium and aluminium alloy products.

Quantity

ltem No.

Description

Features

Model No.

ET-0578-1

ET-0578-2

Power Voltage(V)

AC220V 50/60Hz

AC220V 50/60Hz


Rated Input Capacity(KVA)

4.9

4.9

Rated Input Current(A)

22.2

28

Output Current Range(A/V)

20-170A/16.8V

20-200A/18V

No-load Voltage(V)

60

60

Dimension(mm)

490*280*410

480*330*440

Weight(kg)

13.2

15.55

Specification
