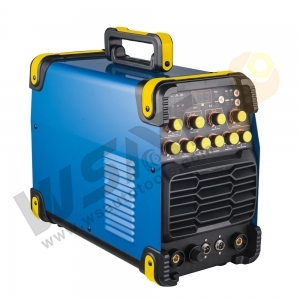

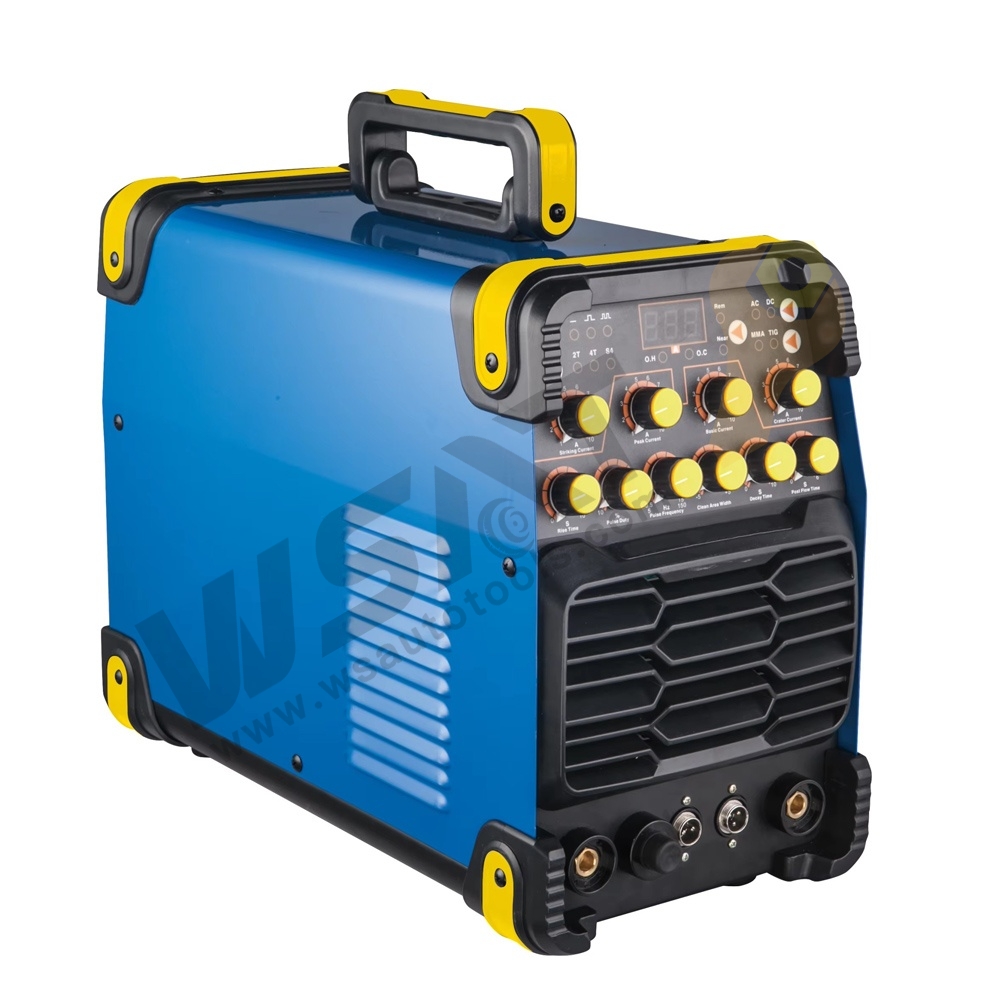

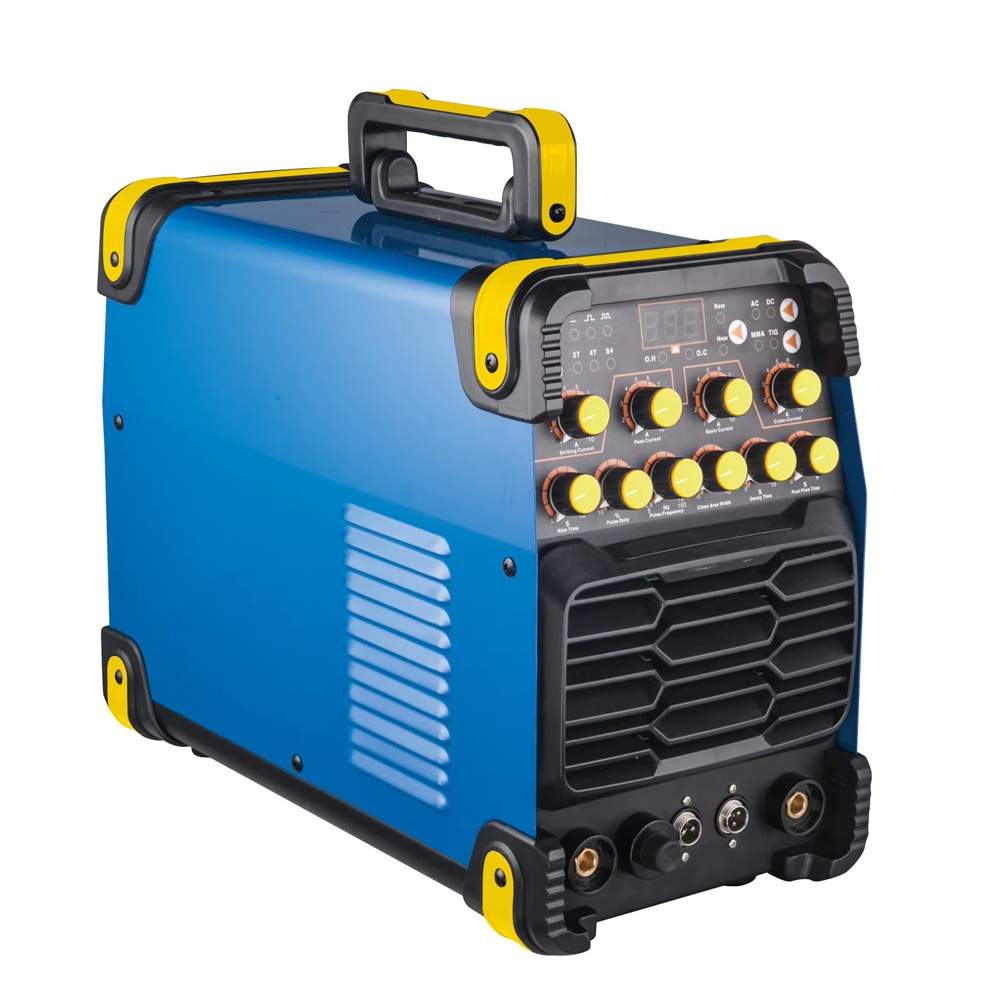

TIG AC/DC Pulse Inverter Welder With MMA Function

ET-0579

·Quality square wave power supply,stable arc,HF arc stabilization.

·Super strong oxidization film removal capability,cleaning width can be adjusted continuously,ensure good weld surface.

·Easy arc-starting,stable welding current,high speed of dynamic response;concentrative arc,AC welding unbiased magnetic;perfect welding seam forming.

·Phase lack protection,over-current,over-heat,over-voltage protect function,make the product more safety and reliable.

·DC function can be used for welding stainless,alloy steel,carbon steel,copper and other no-ferrous metal;AC function can be used for welding aluminium and aluminium alloy products.

·The adjustable TIG PULSE function can fullfill different complicate welding requirements.

Quantity

ltem No.

Description

Model No.

ET-0579

Power Voltage(V)

AC220V±15% 50/60Hz

Rated Input Current(A)

MMA:43.6,TIG:28

Rated Output Current(A)

MMA:200,TIG:200

No-load Voltage(V)

MMA:62,TIG:62

Rated Output Voltage(V)

MMA:28,TIG:18

Dimension(mm)

540*365*450

Weight(kg)

16.24
