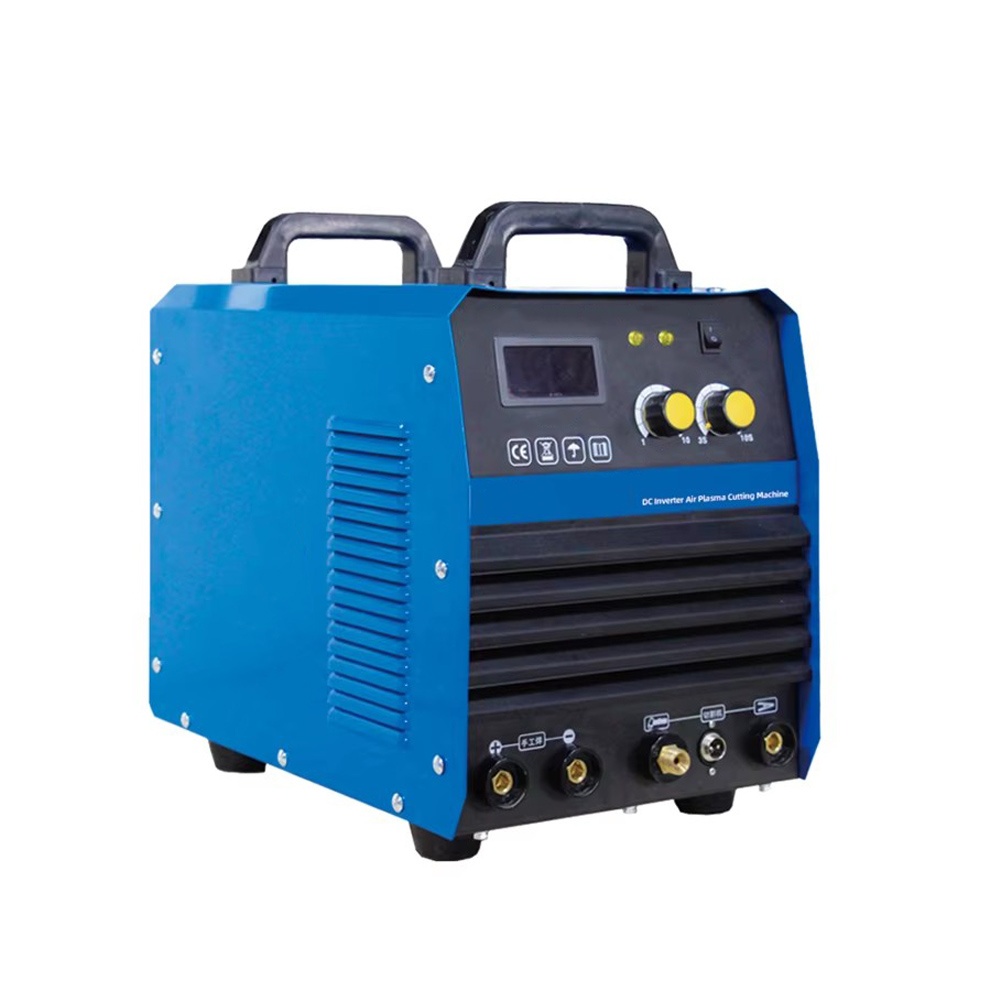

DC Inverter Air Plasma Cutter With MMA Function

ET-0582-1/ET-0582-2

DC Inverter Air Plasma Cutting Machine With MMA Function

Bulit-in Compressor

Quantity

ltem No.

Description

·Cutting current can be adjusted continously for different work piece,different thickness and different cutting speed.

·High frequency shift arc starting,easy arc starting.

·IGBT inverter technology,with high efficiency of power and reliable.

·Overvoltage,undervoltage,overheat,overcurrent protections,and set a pressure switch to protect the cutting gun.

·Apply to cut kinds of steel material,such as carbon steel,stainless steel,alloy steel,copper,alloy etc.

·Smooth incisions.

·Bulit-in Compressor.

Features

Model No.

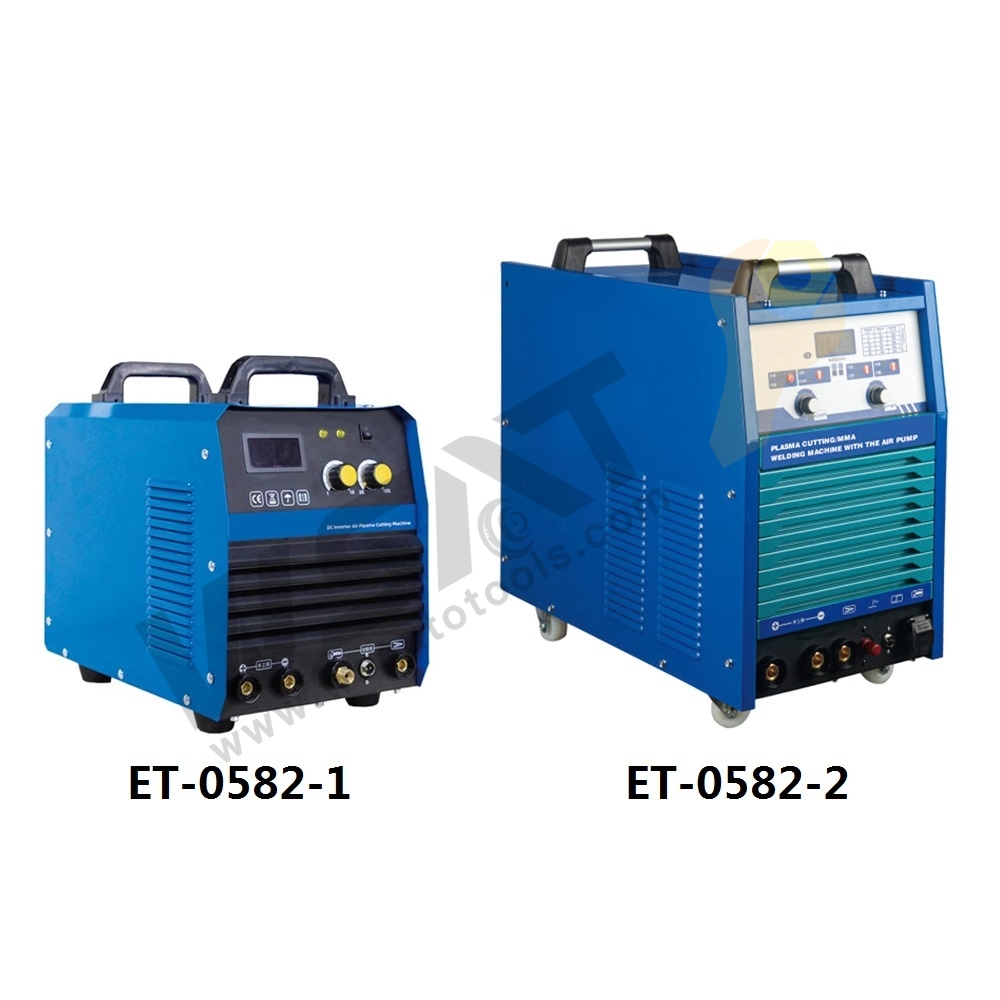

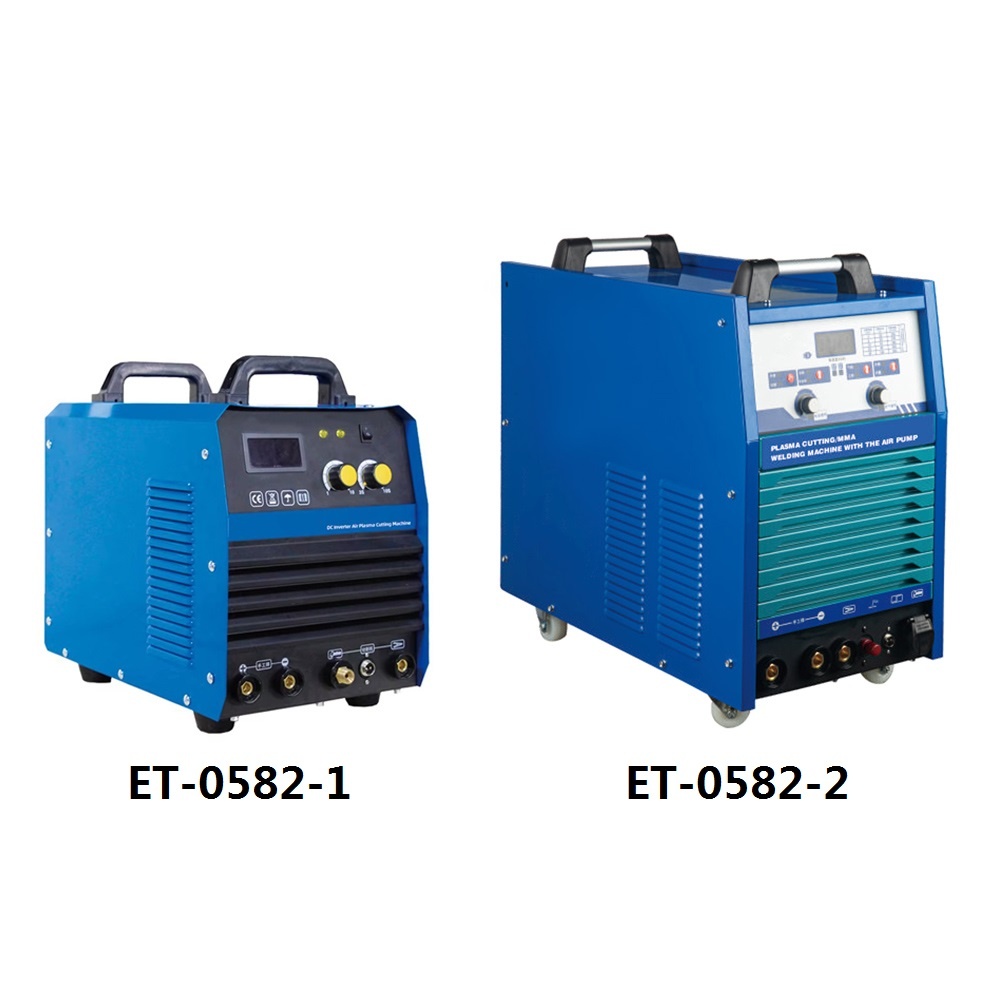

ET-0582-1

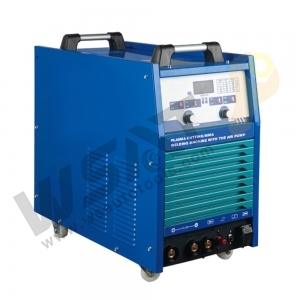

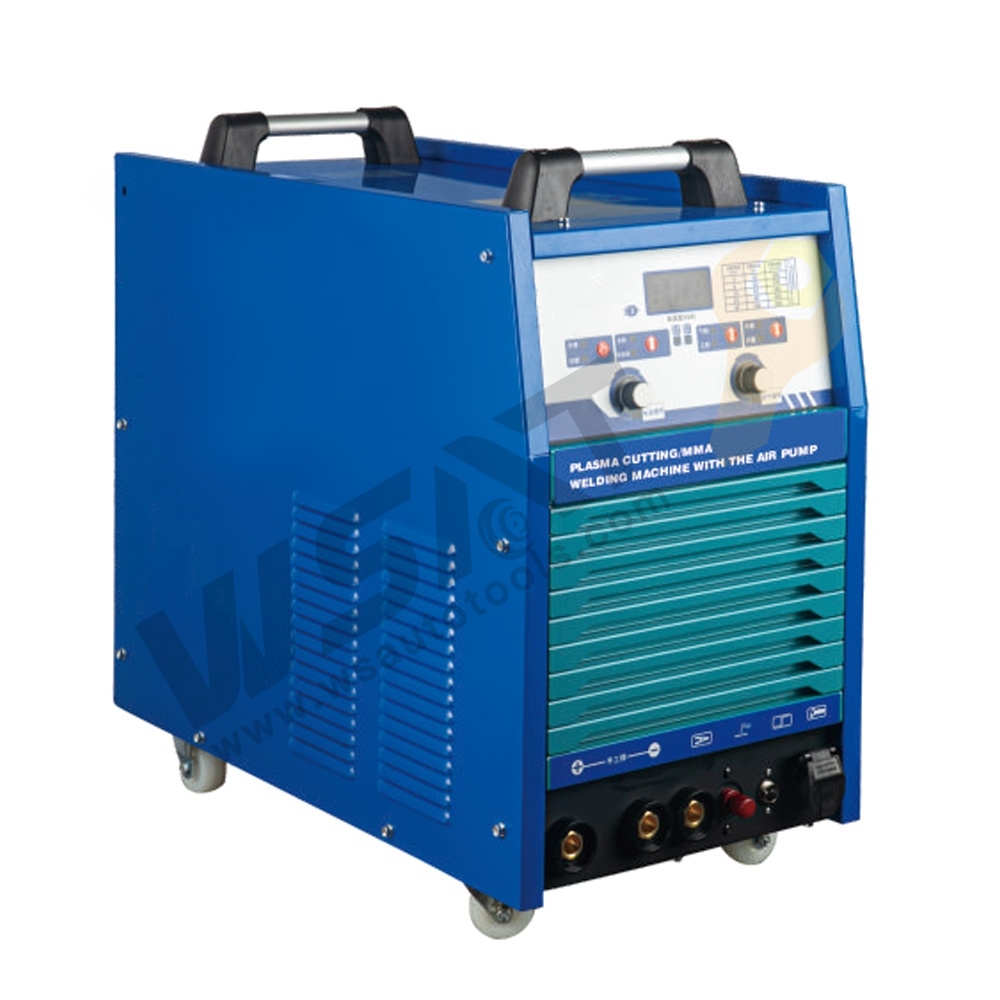

ET-0582-2

Power Voltage(V)

AC220V±15%

AC220V±15%

Rated Input Current(A)

CUT:29.8,MMA:32.8

CUT:40,MMA:35

Rated Output Current(A)

CUT:40,MMA:160

CUT:100,MMA:320

No-load Voltage(V)

CUT:248,MMA:62

CUT:280,MMA:65

Rated Output Voltage(V)

CUT:96,MMA:26.4

CUT:120,MMA:32.8

Dimension(mm)

470*285*420

630*330*600

Weight(kg)

24.5

52

Specification
