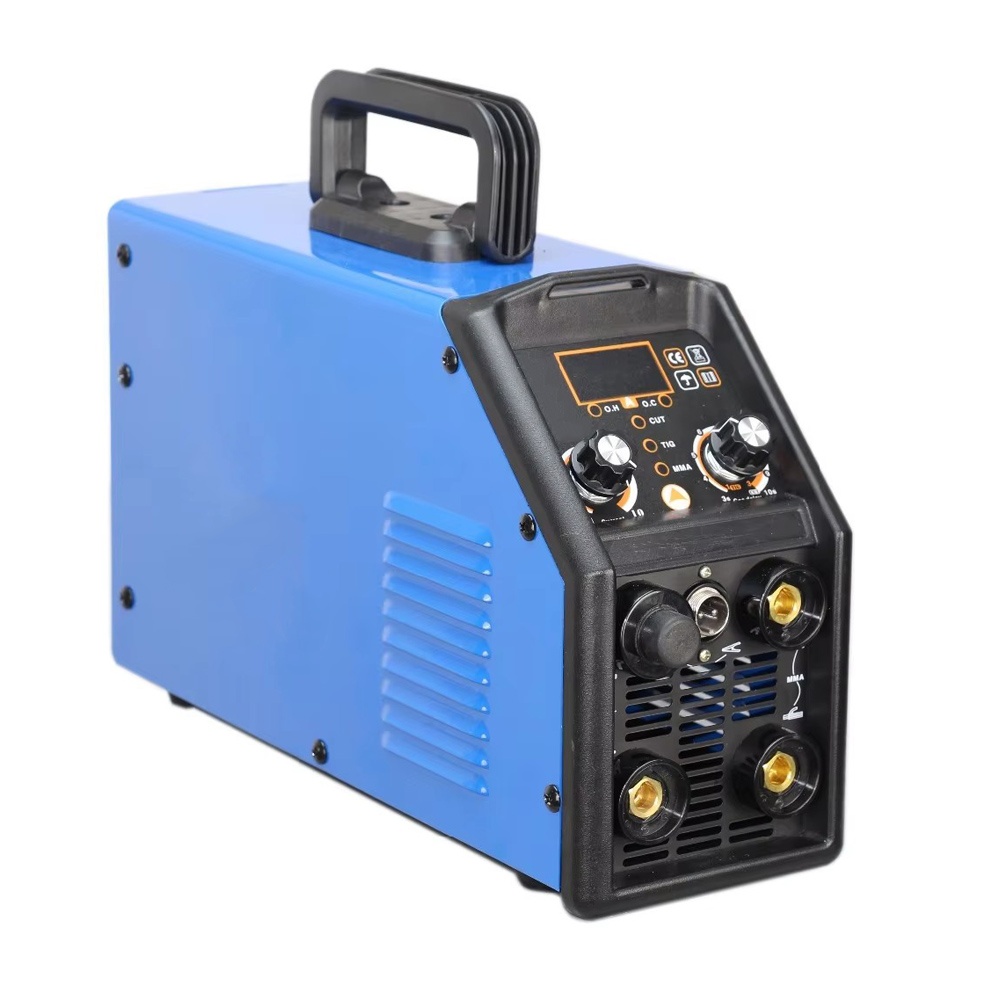

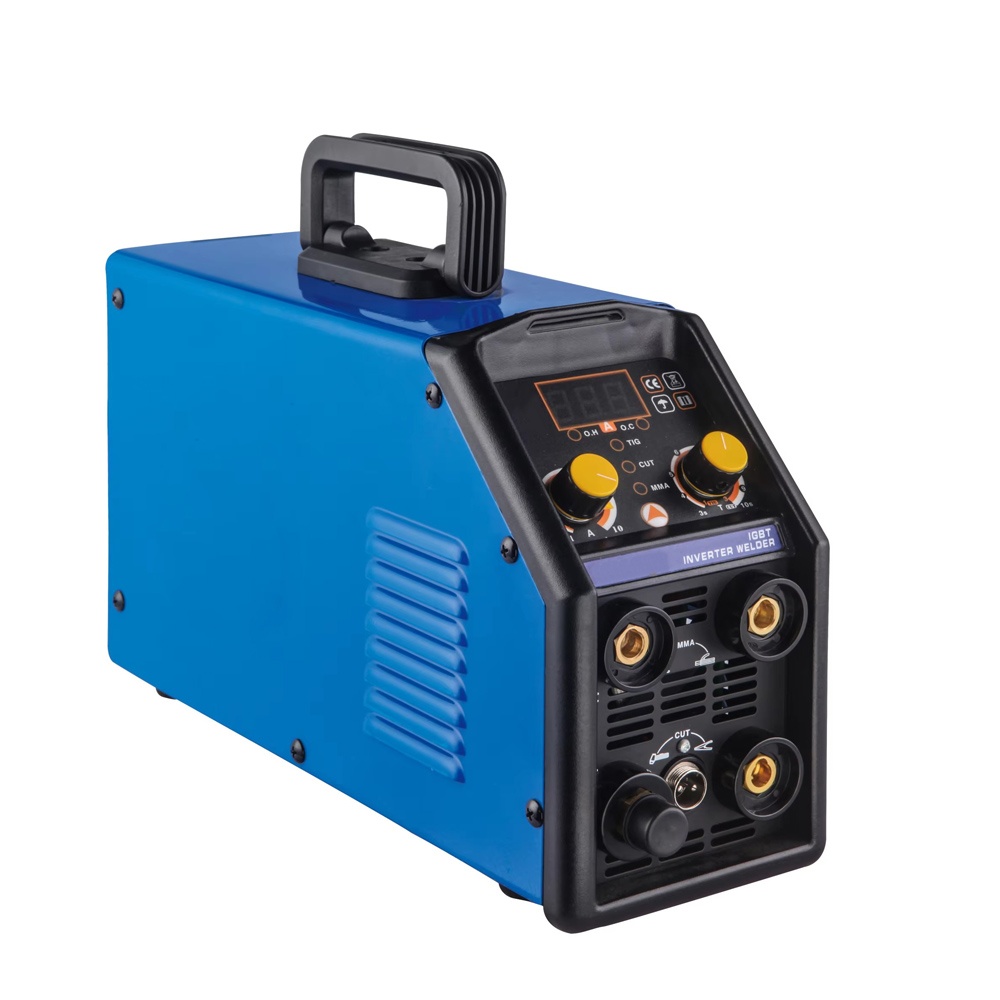

DC CUT/MMA/TIG Inverter Welder
·Adopt advanced inverter (MOSFET) technology,one machine could work as CUT,MMA,TIG machine.
·Compact,portable,highly effective and low consumption.
·Suitable for cutting stainless steel,copper,iron and aluminum etc.
·Simple operation and smooth cutting surface.
·HF touched arc-starting cutting.
·Supplied complete with plasma cutting torch,Tig torch and earth clamp,face mask and welding brush,carton box.
Quantity
ltem No.
Description
Features

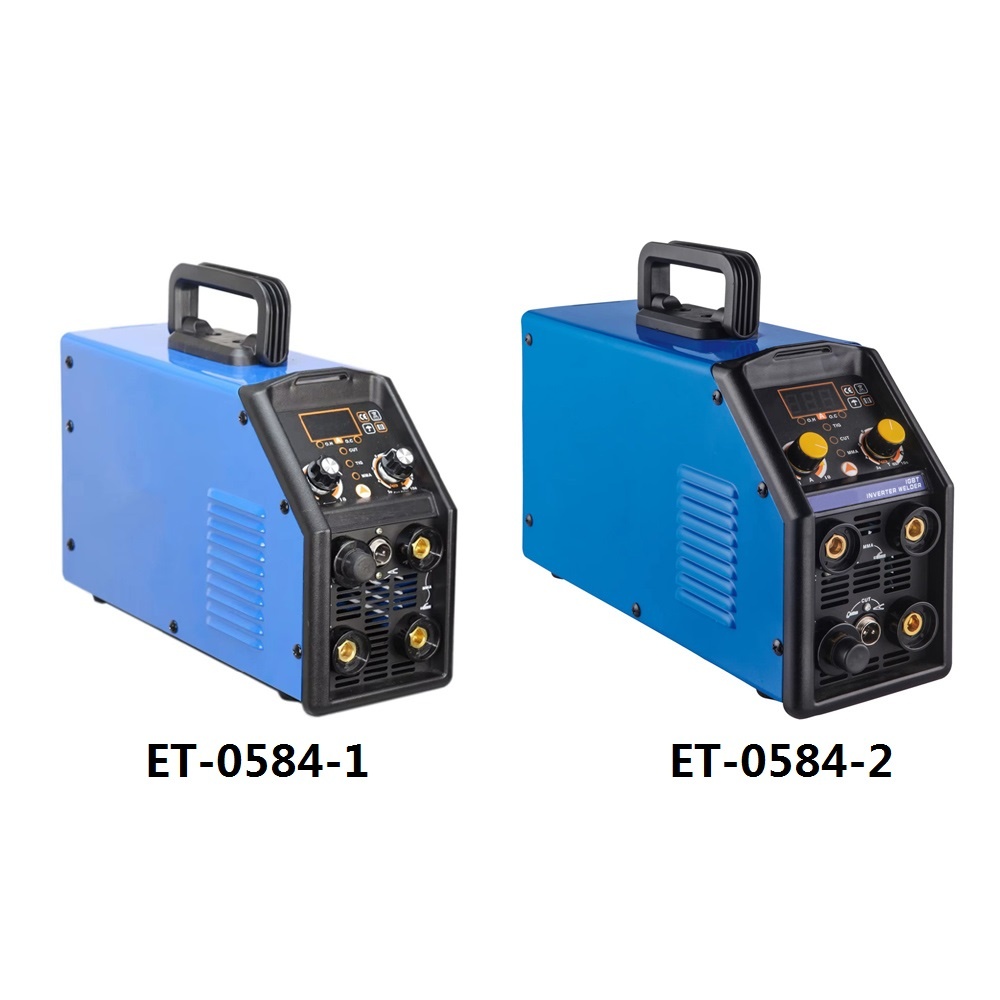

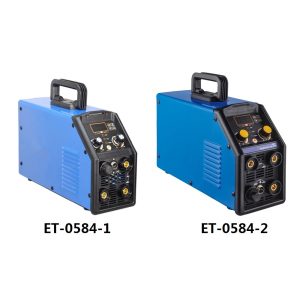

Model No. | ET-0584-1 | ET-0584-2 |
Power Voltage(V) | AC220V 50Hz | AC220V 50Hz |
Rated Input Current(A) | TIG:7.9/MMA:14.8/CUT:29.8A | TIG:10.3/MMA:18.8/CUT:29.8A |
Rated Input Capacity(KW) | TIG:3.6/MMA:6.7/CUT:6.6KW | TIG:4.7/MMA:8.6/CUT:8.6KW |
Current Range(A) | TIG:20/MMA:30-160/CUT:15-40A | TIG:20/MMA:30-200/CUT:15-50A |
No-load Voltage(V) | TIG:64/MMA:64/CUT:248V | TIG:86/MMA:86/CUT:260V |
Max.Cutting Thickness(mm) | 10 | 12 |
Dimension(mm) | 420*260*280 | 420*260*280 |
Weight(kg) | 11 | 11.5 |
Specification
