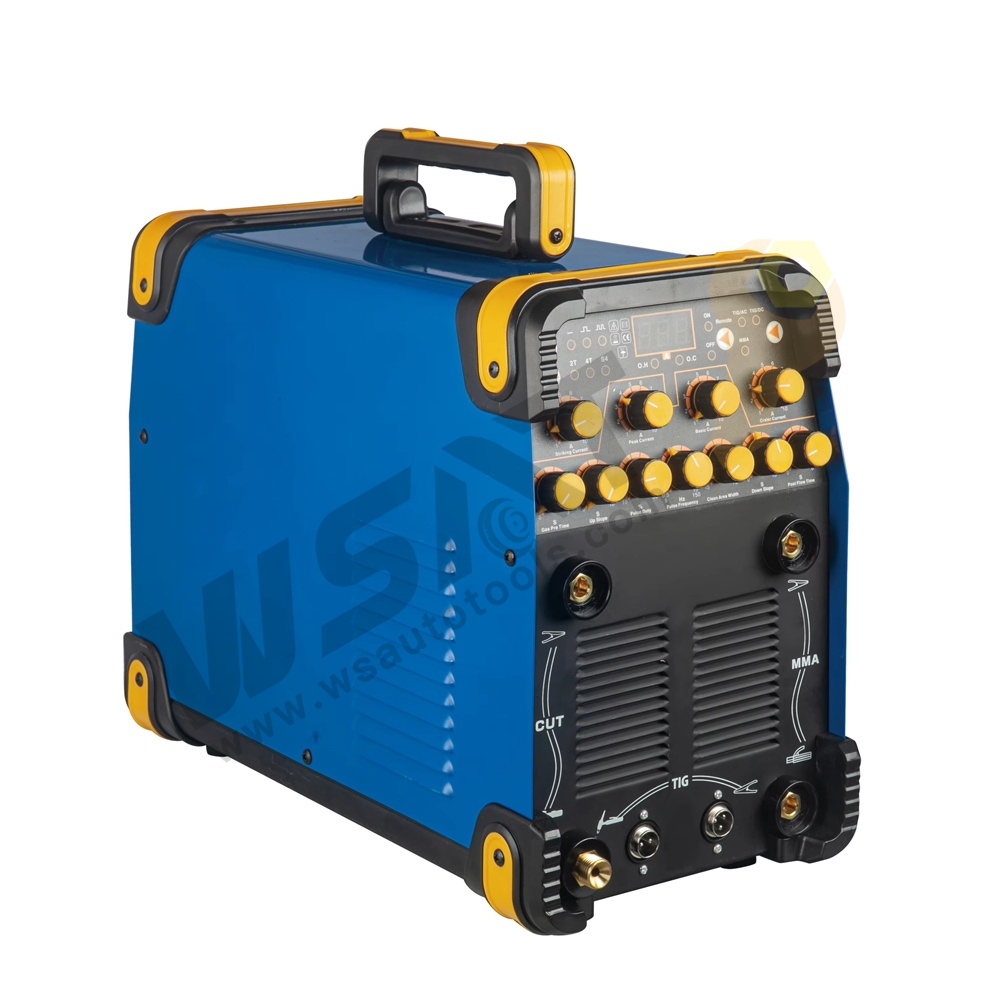

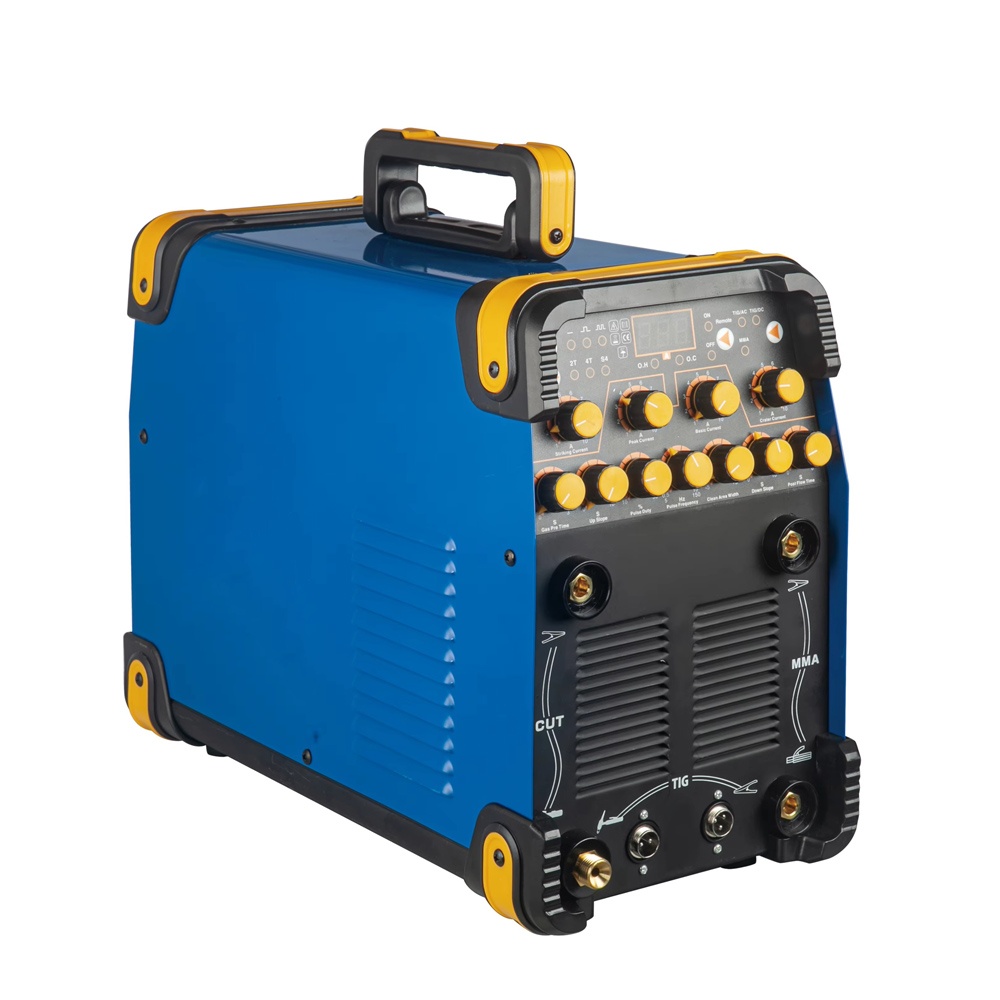

5 IN 1 Function DC MMA,DCTIG/AC TIG/Pulse TIG/CUT Inverter Welder
5 IN 1 Function DC MMA,DCTIG/AC TIG/Pulse TIG/CUT Inverter Welder
Quantity
ltem No.
Description
·Easy arc-starting,stable welding current,high speed of dynamic.
·Phase lack,over-current,over-heat,over-voltage protection.
·DC TIG suitable for welding stainless,alloy,carbon steel,copper.
·AC TIG suitable for aluminum and aluminum alloy weld.
·CUT current from 20-50A can quality cut 15mm metal.
Features
Model No. | ET-0585 |
Power Voltage(V) | AC220V±15% 50Hz |
Rated Input Current(A) | TIG:28/MMA:43.6/CUT:39A |
Rated Output Current(A) | TIG:200/MMA:200/CUT:50A |
No-load Voltage(V) | TIG:62/MMA:62/CUT:250V |
Rated Output Voltage(V) | TIG:18/MMA:28/CUT:100V |
Dimension(mm) | 430*210*380 |
Weight(kg) | 13.8 |
Specification
