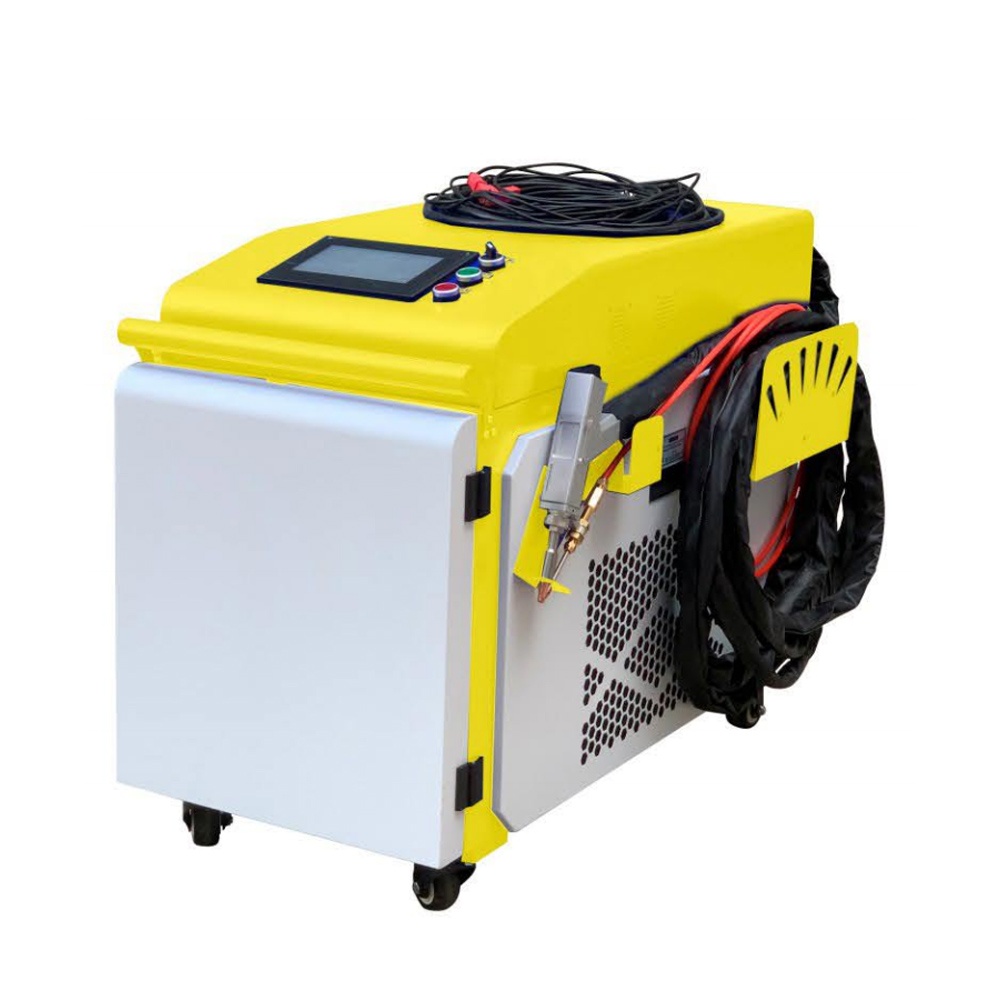

Laser Welder
·High power fiber laser is applied.
·Non-contact cleaning,no damage to parts.
·Achieving different positions,size selective cleaning.
·No chemical agents,no consumables,safe and environmental protection.
·It's a small chassis design with small footprint,which will be convenient for transportation.
·High cleaning efficiency,good quality and time saving.
Quantity
ltem No.
Description
Features
MODEL | ET-0591-1000W | ET-0591-1500W | ET-0591-2000W | ET-0591-3000W |
Input Power | 220V 50/60Hz | 220V 50/60Hz | 220/380V 50/60Hz | 380V50/60Hz |
Consuming Power(KW) | <3KW | <4.5KW | <6KW | <8KW |
Depth of Fusion/Stainless Steel (1m/min) | 2mm | 3.5mm | 4.5mm | 6.5mm |
Depth of Fusion/Carbon Steel (1m/min) | 2mm | 3mm | 4mm | 6mm |
Depth of Fusion/Aluminum Alloy (1m/min) | 2.5mm | 2.5mm | 3.5mm | 4.5mm |
Laser Wave Length | 1070±10nm | |||
Fiber-optic Cable Length | 10~15m | |||
Working Environment | Tempreture: 10-40℃ Humidity: <70% no condensation | |||
Cooling Method | INTEGRATED WATER COOLING SYSTEM | |||
Aiming and Locating | INFRARED RAY | |||
Weld Seam Requirment | For weld seam over 0.5mm, wires are suggested to be used | |||
Machine Size(cm) | 85*54*88 | 85*54*88 | 100*52.5*74 | 113*60"108 |
Wooden Package Size(cm) | 98cm*85cm*106 | 98cm*85cm*106 | 108cm*89cm*90 | 121*76*124 |
Gross Weight (kg) | 185 | 190 | 210 | 260 |
Specification
