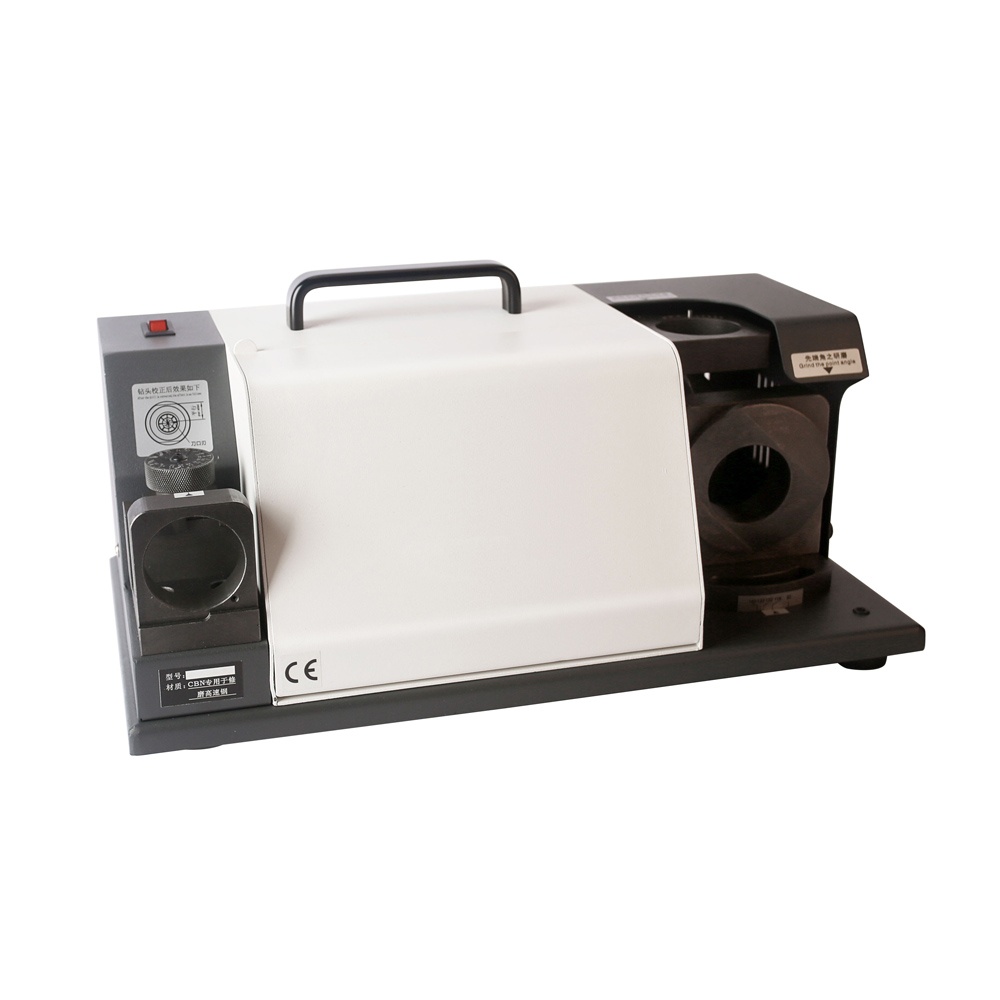

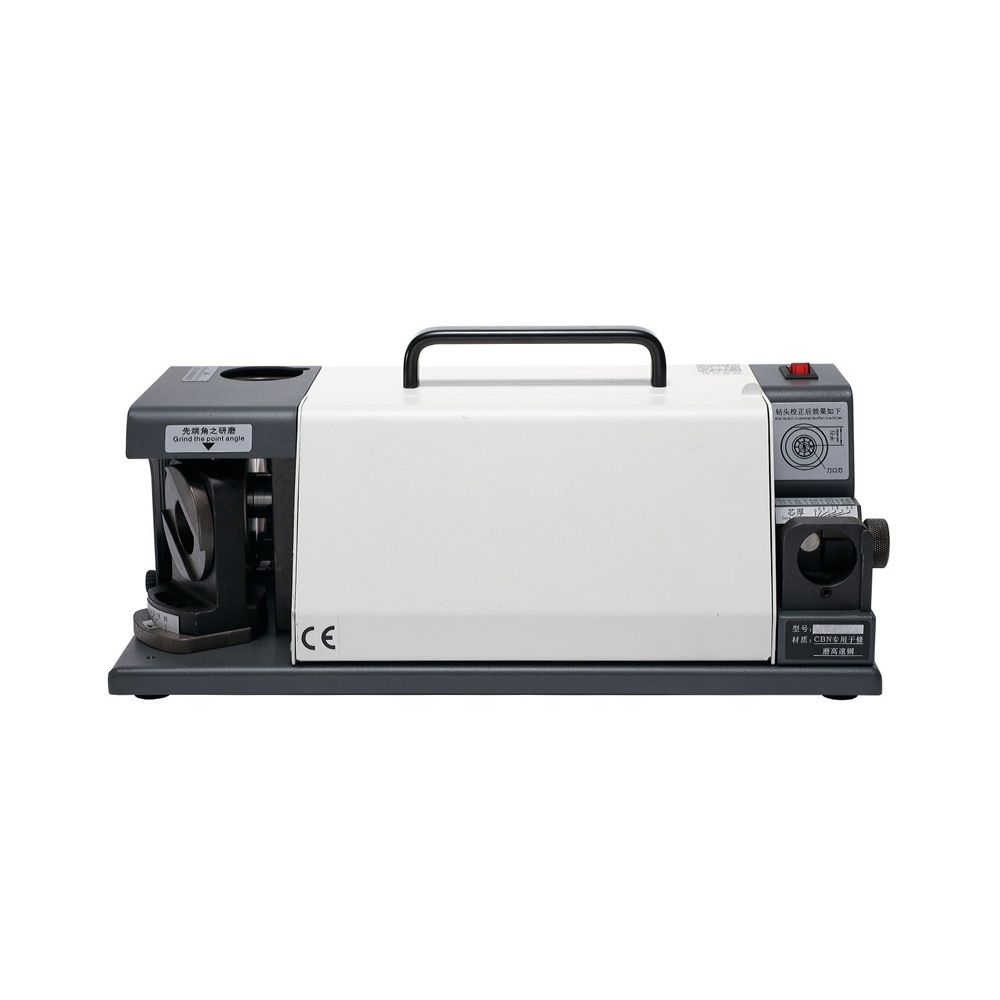

Portable Drill Bit Re-Sharpener --PRO Type
It can sharpen the tip angle(apex angle),front cutting edge (positive rake angle),chip fute (rear angle),and the size of the center transverse blade can be adjusted at will.easier.
ET-0631-4 is a compound drill grinding machine(left and right double-head grinding work).
Quantity
ltem No.
Description
1. Portable drill grinder, accurate and rapid, easy to operate, with no skill requirement to grind.
2. Economic and saving cost, improve efficiency.
3. With Taiwan Grinding Wheel, only one piece can complete all procedure, accurate angle and long service life.
4. The electrically controlled and powerful DC motor, stable frequency, strong horsepower and long service life.
5. It can sharpen the drill bit front cutting lip, lip relief angle.
6. It can be effective co-ordination with the drilling material and speed, can control the quality and accuracy of the work piece, extend the life of the drill bit.
Features

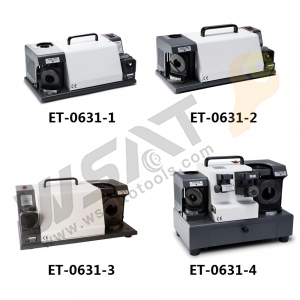

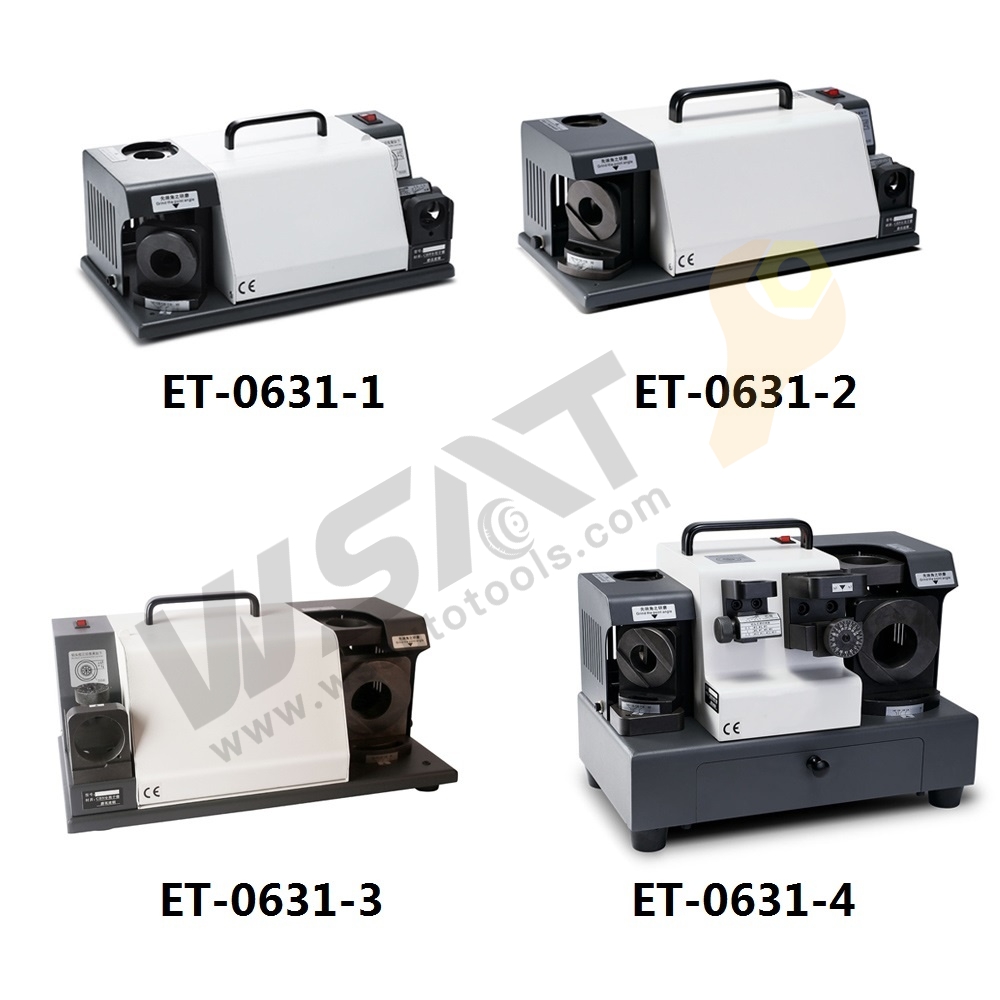

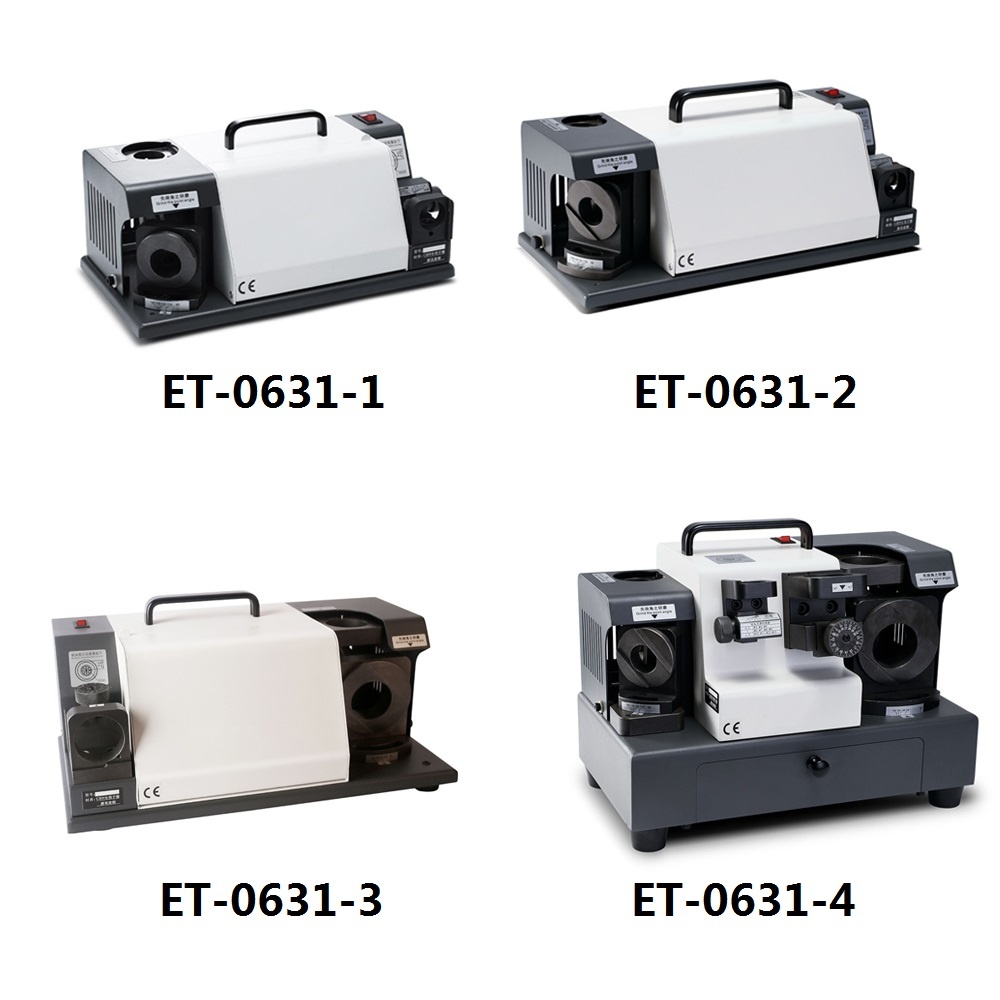

Model | ET-0631-1 | ET-0631-2 | ET-0631-3 | ET-0631-4 |
Grinding Range | Φ3-Φ13(Φ14)mm | Φ3-Φ20mm | Φ13-Φ26(Φ32)mm | Φ3-Φ32mm |
Point Angle | 90°~140° | 95°~140° | 95°~140° | 90°~140°/95°~140° |
Power | AC220V±10% | AC220V±10% | AC220V±10% | AC220V±10% |
Motor | 120W | 160W | 450W | 250W |
Speed | 4400rpm | 4400rpm | 4400rpm | 4400rpm |
Dimension | 36*21*19cm | 43*22*21cm | 43*23*21cm | 42*27*34cm |
Weight | 9kg | 14kg | 25kg | 29kg |
Standard Collet | 11pcs | 18pcs | 13pcs | 30pcs |
Standard with CBN grinding wheel for the HSS material, Optional SDC grinding wheel for the carbide material. | ||||
Specification
