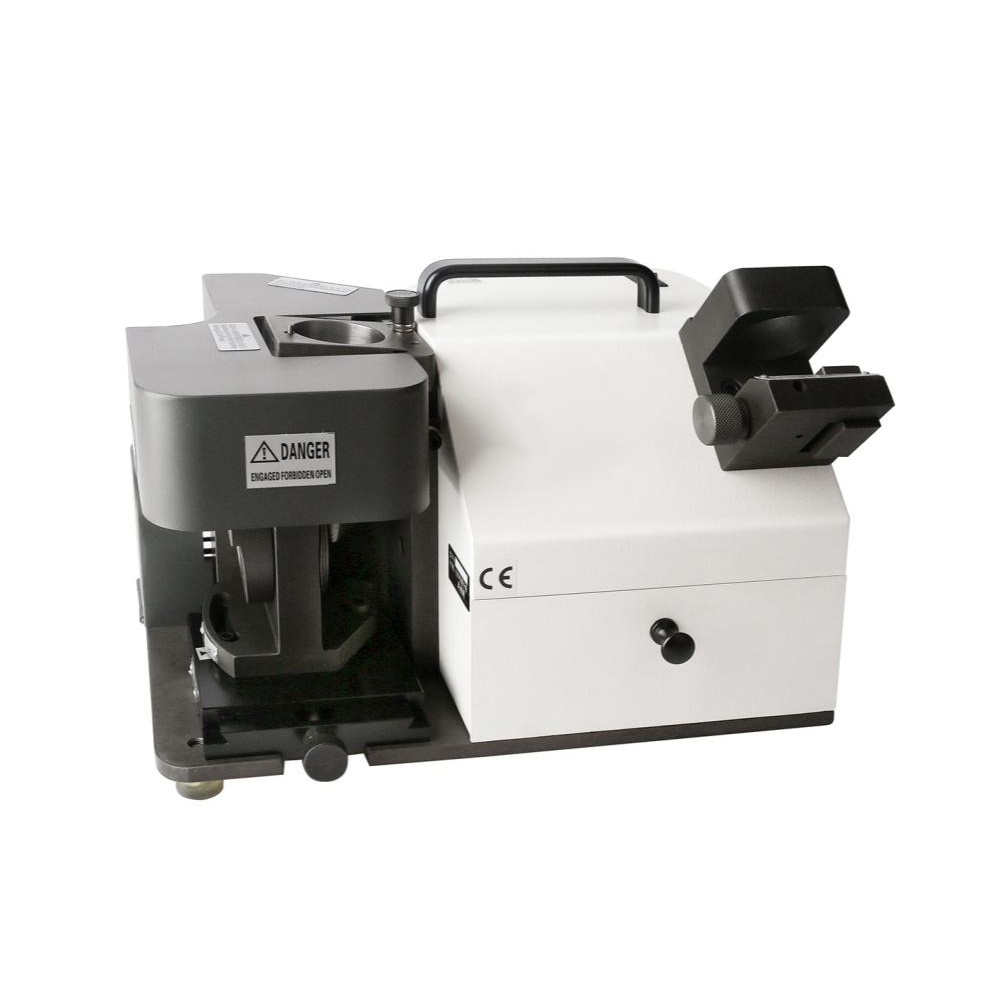

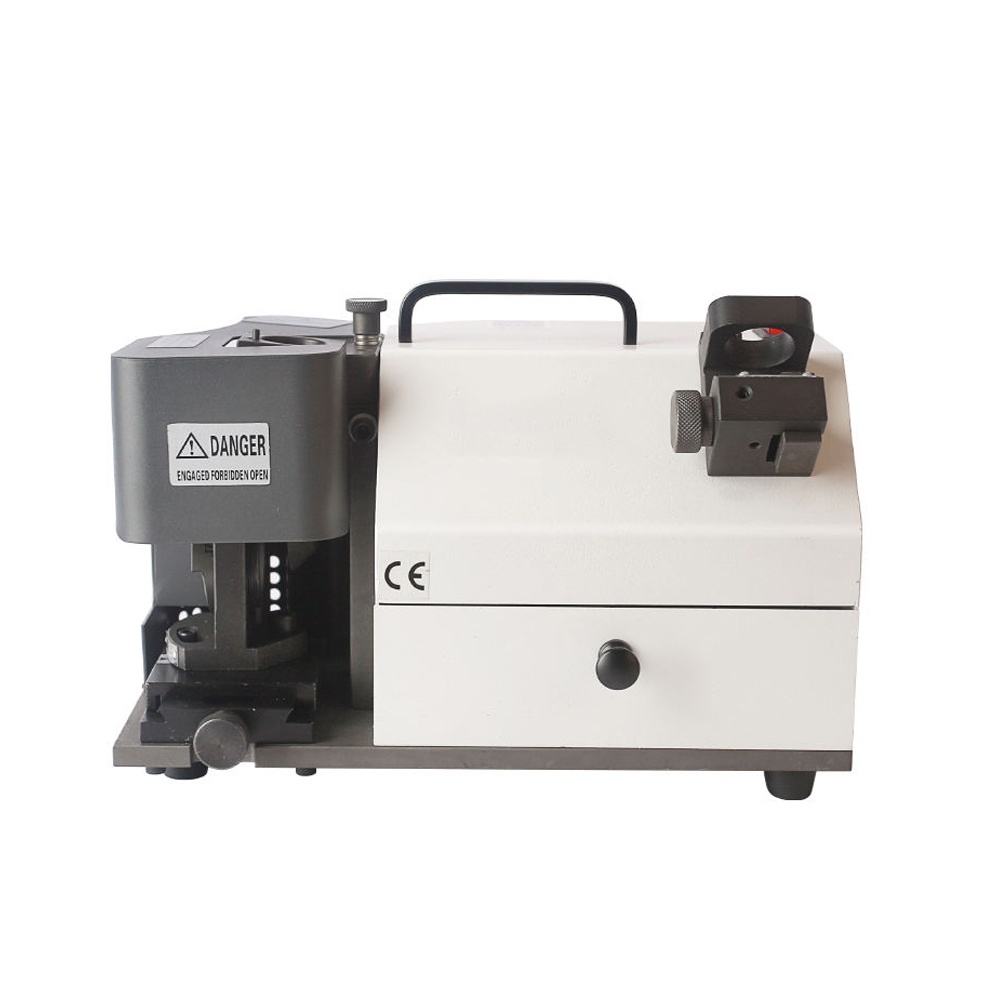

End Mill Re-Sharpener

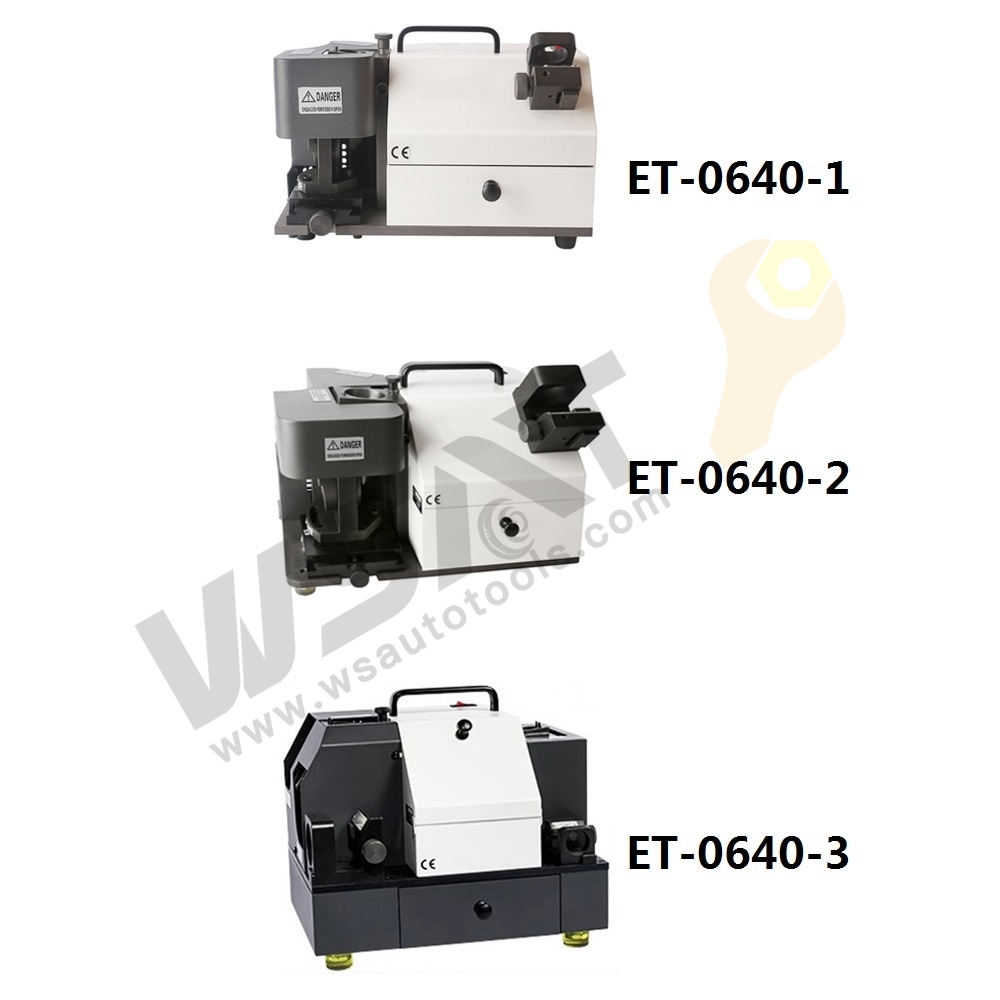

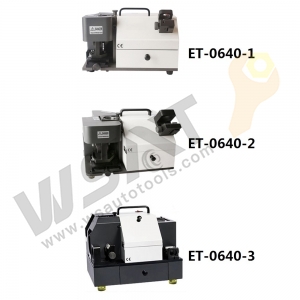

ET-0640-1/ET-0640-2/ET-0640-3

Professional Sharpener End Mill Grinding Machine 2 3 4 Flute End Mill Grinder

Quantity

ltem No.

Description

·It is a portable knife sharpener that can grind 2-blade,3-blade and 4-blade milling cutters without technology.Optional fixture group can grind 5-blade end mill.

·By adjusting the lifting button wheel,the width and depth of the chip flute can be controlled to better meet the processing needs of different materials.

·The unique structure can grind the axial wedge angle of the milling cutter,increase the sharpness of the cutting edge of the end face,and reduce the cutting resistance.

·It can be equipped directly with an accurate angle and long service life. Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the HSS material.

Features

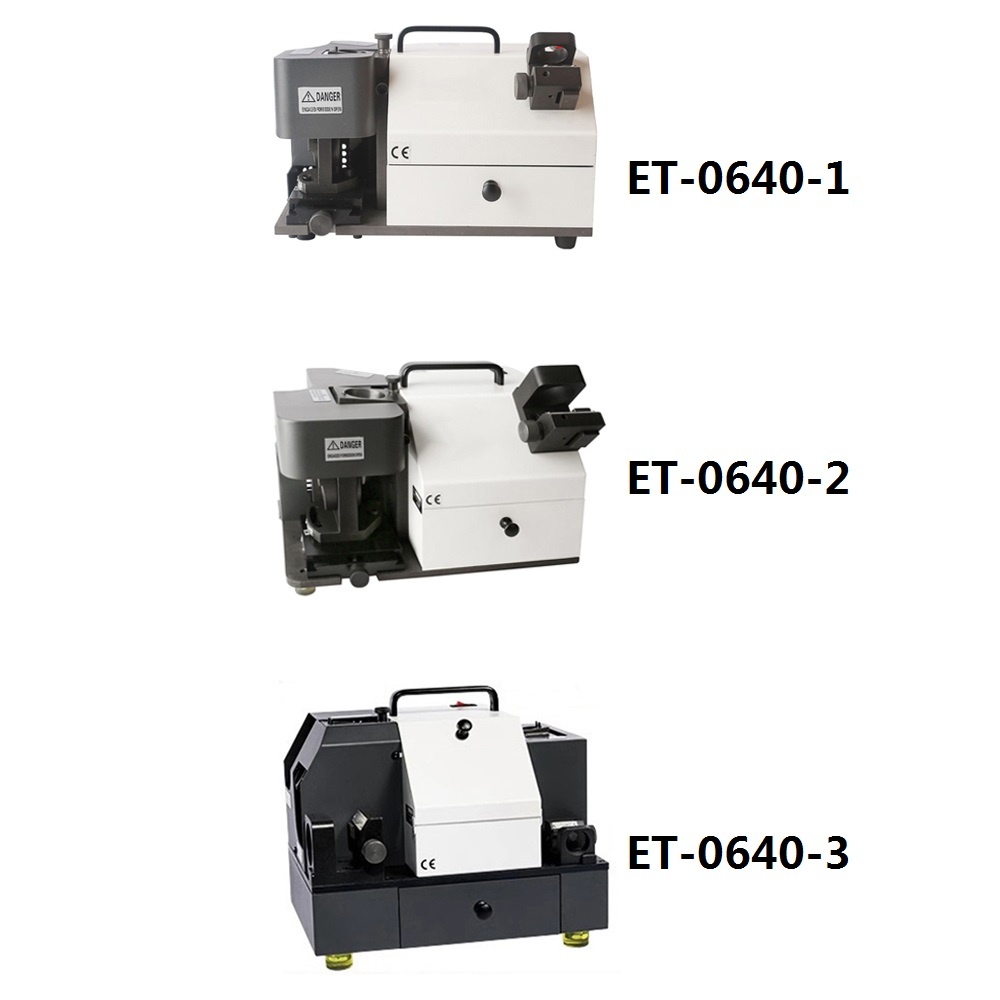

Model

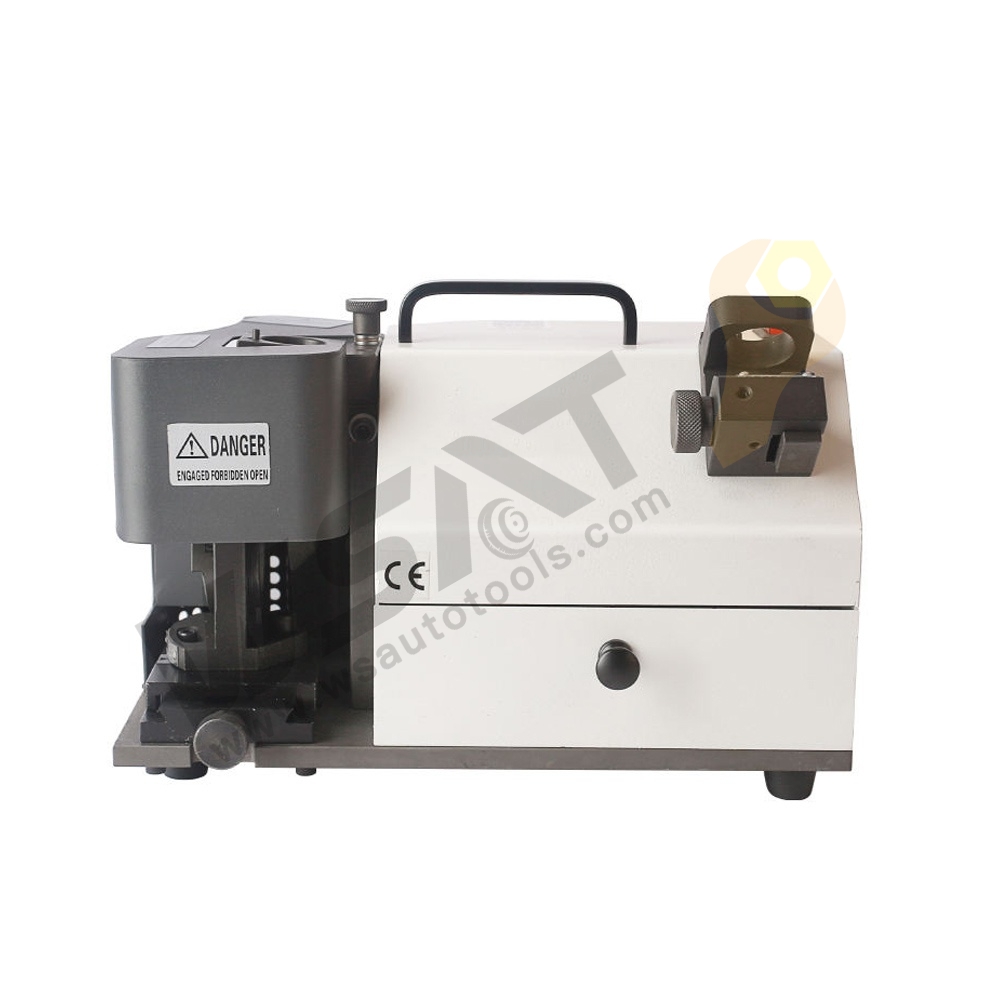

ET-0640-1

ET-0640-2

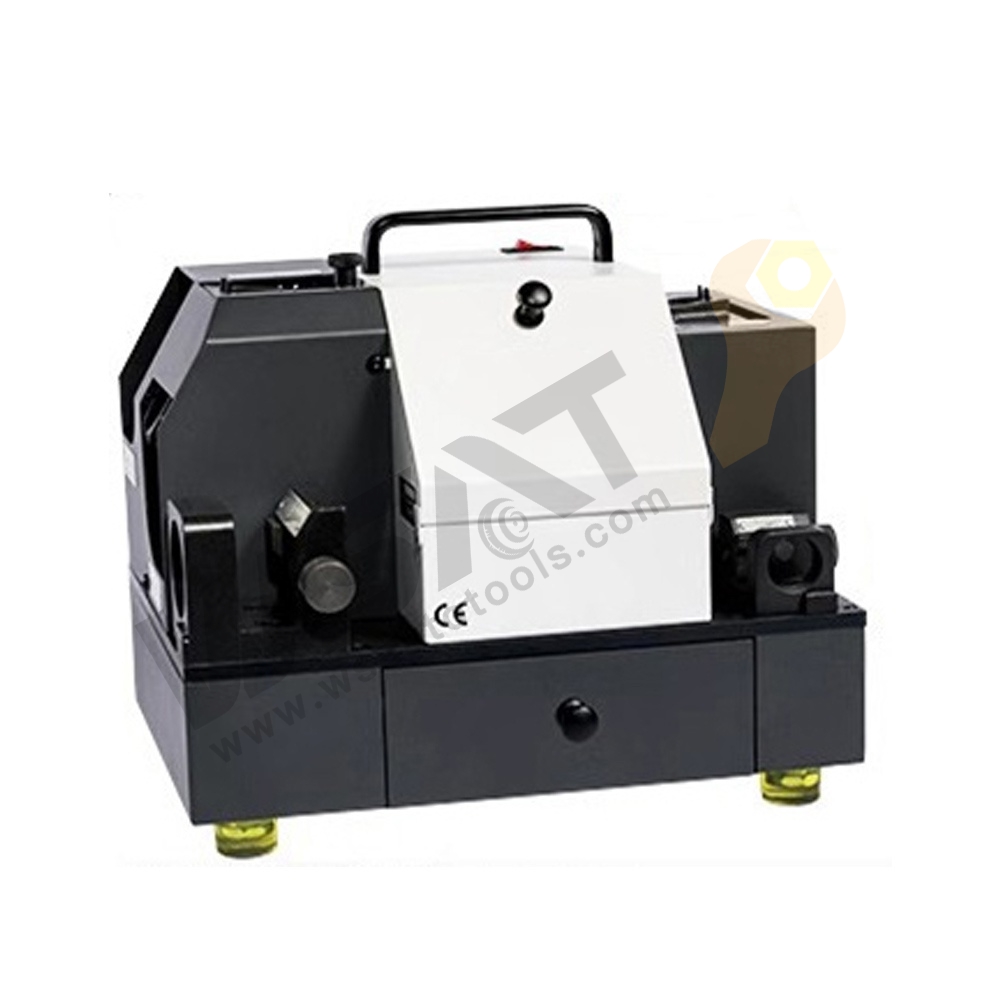

ET-0640-3

Grinding Range

Φ4-Φ20mm

Φ12-Φ30mm

Φ6-Φ30mm

Power

AC220V±10%

AC220V±10%

AC220V±10%

Motor

220W

250W

250W

Speed

4400rpm

4400rpm

4400rpm

Dimension

35*23*24cm

40*28*31cm

50*29*30cm

Weight

16kg

28kg

33kg

Standard Collet

9pcs

10pcs

13pcs

Specification
