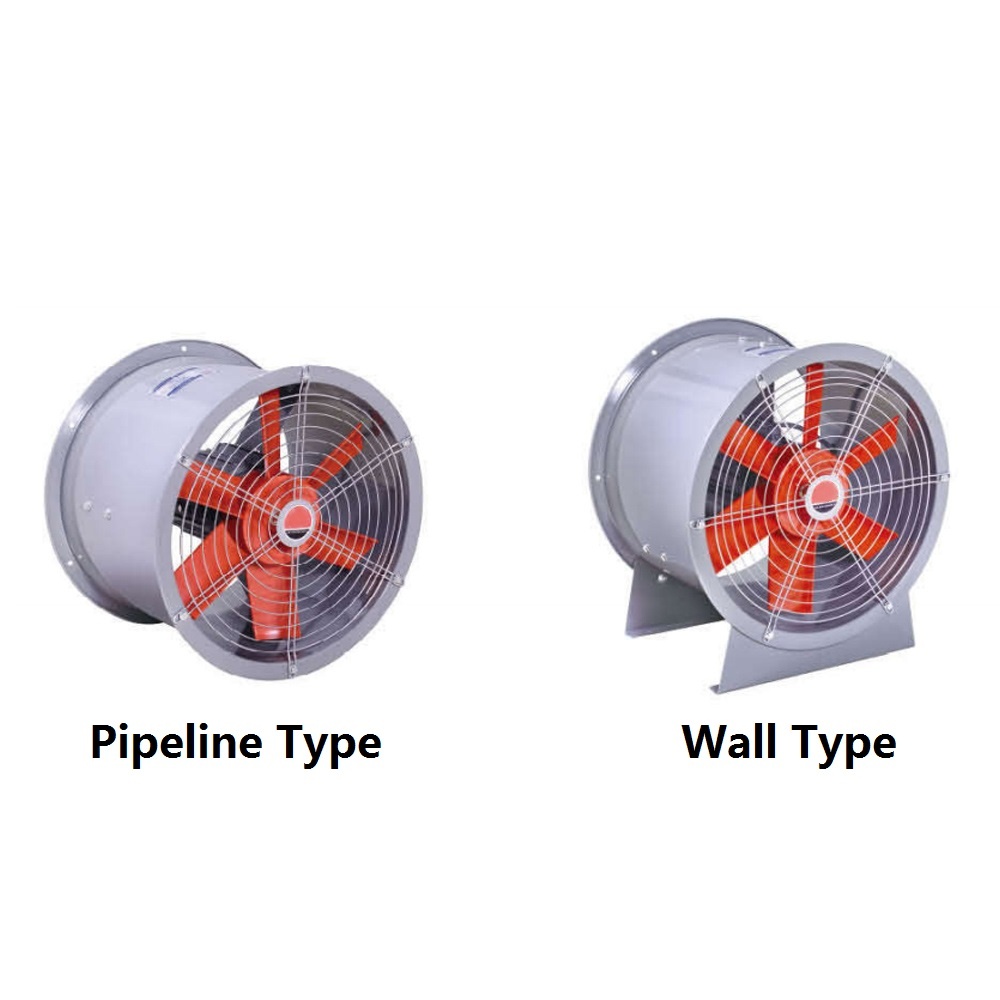

Energy-saving Dust Fan
The saving lower noise axial fan is redesigned fan motor instead of aluminium alloy on the basis of original structure.
It has lowernoise,larger volume,higher pressure,Jower motor temperature rise and so on.
Strictly in accordance with exprosion proof motor of production requirements to manufacture them,insulation class to F.
Make shell and technical improvements to enhance the sealing performance of the motor.
Therefore,this product can be used in relatively high humidity or temperature environments(Not exceed 60).
Quantity
ltem No.
Description
Features
Model | Rated Voltage | Rated Speed(r/min) | Traffic(m³/h) | Motor Power(KW) | Total Pressure(Pa) | Noise(dB) |
ET-0656-(2-2) | 220/380V | 2800 | 1300 | 0.12 | 140 | 62 |
ET-0656-(2-4) | 220/380V | 1450 | 600 | 0.06 | 20 | 57 |
ET-0656-(2.5-2) | 220/380V | 2800 | 2100 | 0.25 | 215 | 65 |
ET-0656-(2.5-4) | 220/380V | 1450 | 1000 | 0.09 | 35 | 59 |
ET-0656-(3-2) | 220/380V | 2800 | 3000 | 0.37 | 230 | 68 |
ET-0656-(3-4) | 220/380V | 1450 | 2000 | 0.12 | 59 | 61 |
ET-0656-(4-4) | 220/380V | 1450 | 5870 | 0.55 | 149 | 72 |
ET-0656-(4-2) | 220/380V | 2800 | 11000 | 1.5 | 270 | 75 |
ET-0656-(5-4) | 220/380V | 1450 | 10000 | 0.75 | 200 | 74 |
ET-0656-(5-2) | 220/380V | 2800 | 15000 | 1.8 | 300 | 79 |
ET-0656-(6-4) | 380V | 1450 | 21800 | 2.2 | 320 | 81 |
ET-0656-(7-4) | 380V | 1450 | 26800 | 3 | 350 | 86 |
ET-0656-(8-4) | 380V | 1450 | 38000 | 4 | 450 | 89 |
Specification
