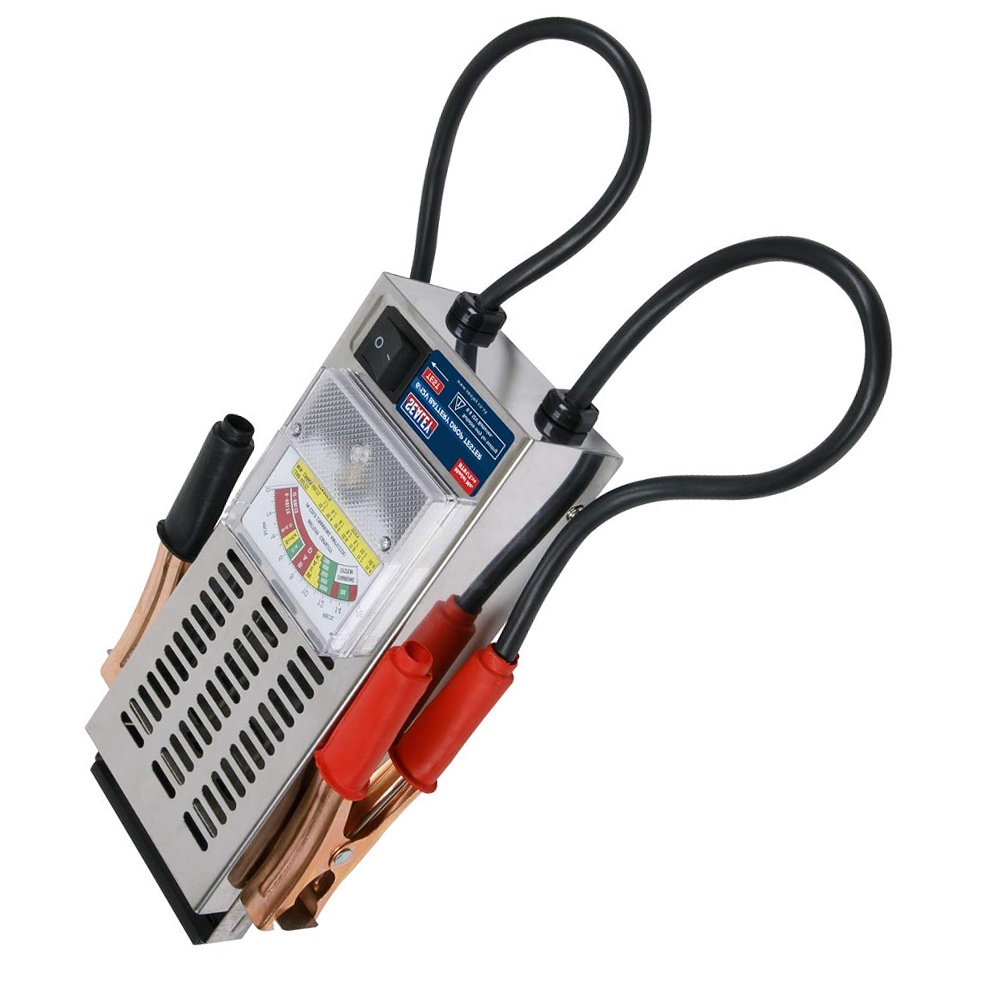

6V/12V car Battery Tester

13319|13320

6/12 Volt Battery Charging System Battery Tester Charger Tools Auto Test

Quantity

ltem No.

Description

Load applied by internal switchgear - no sparking. Suitable for 6 and 12V batteries. Applies load across cells and measures output on meter. Accurate indication of battery voltage and faulty or short circuited cell.

Features

1,  6/12 Volt 100 Amp Battery and Charging System Test Tool

2, Test 6 and 12 volt batteries and charging system outputs

3, Test up to 1000 cold cranking amps

4, Accurate, reliable and shock resistant

5, Color-coded voltmeter analog display

6, Heavy duty color coded battery clamps included

7, Rubber insulated carry handle for comfort and safety

Specification

         Model Specification

13319

13320

Voltage:

6V/12V

12V

Load test capacity:

100 amps,200 to 1000 cold-cranking amps.

100 amps,200 to 1000 cold-cranking amps.

Amp setting:

100 amps

100 amps

Display Meter:

 Analog,0~16 VDC (maximum)

LED

Voltage accuracy:

± 0.2V

± 0.2V

Test Cycle:

10 seconds per test with 1 minute cool down; 3 tests in 5 minutes.

10 seconds per test with 1 minute cool down; 3 tests in 5minutes,10 seconds load test time automatic shut down.

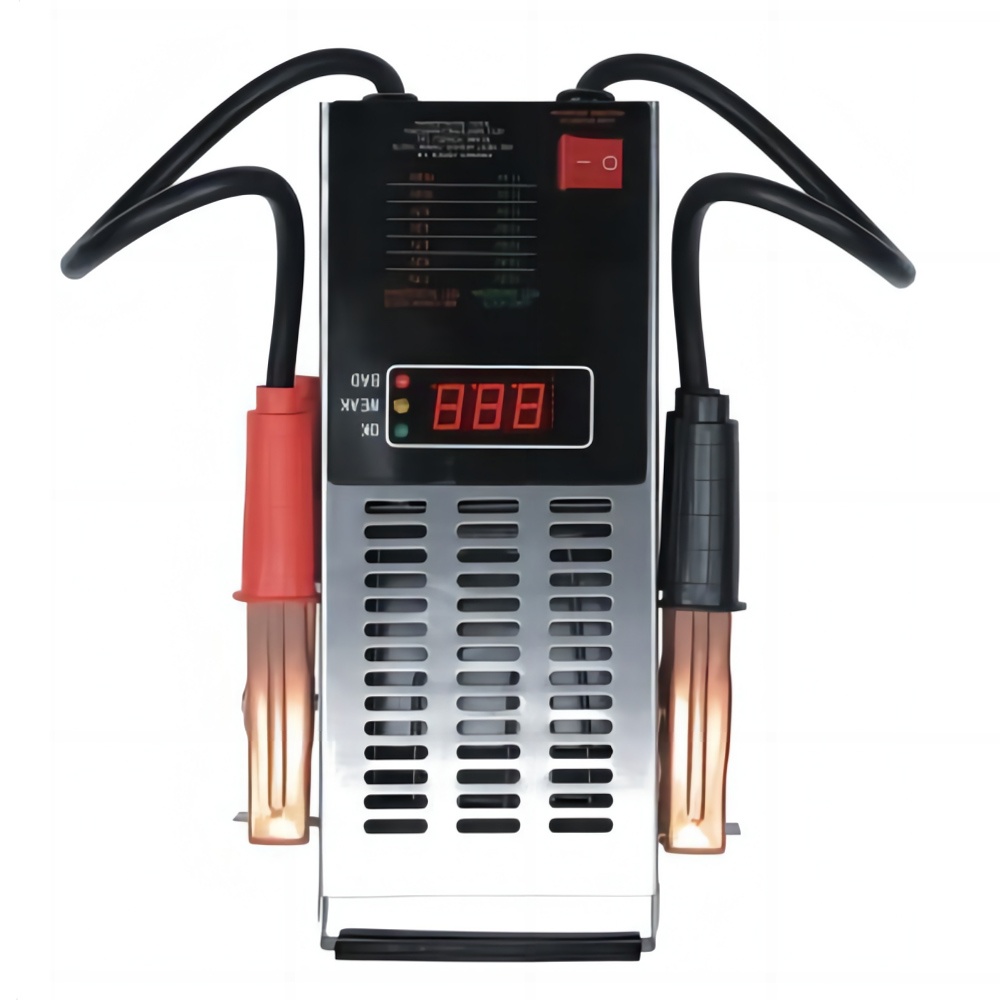

High bright LED indicate the voltage and results.

Surface treatment:

Stainless iron.

Stainless iron.
