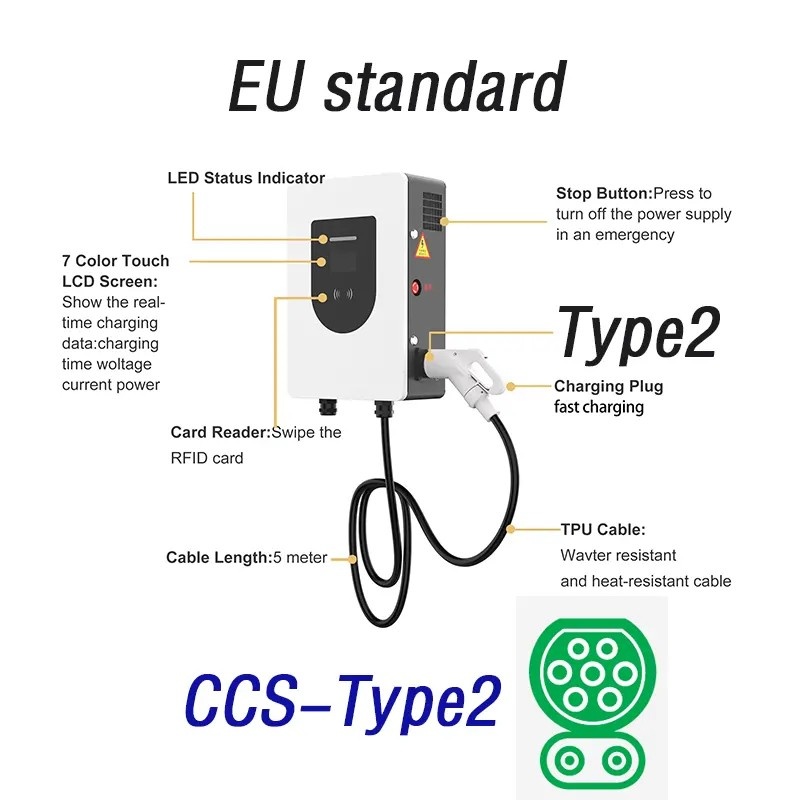

Charging connector: CCS 2 cable
LED indicator light: Green/Yellow/Red
Liquid cystal display: 7-inch color touch screen
RFID reader: MIFARE ISO/IEC 14443 A
Startup mode: Plug and play/RFID card/application
Emergency stop: YES
Interface language: English/Chinese
Install: floor stand
Cooling method: fan cooled
Quantity
ltem No.

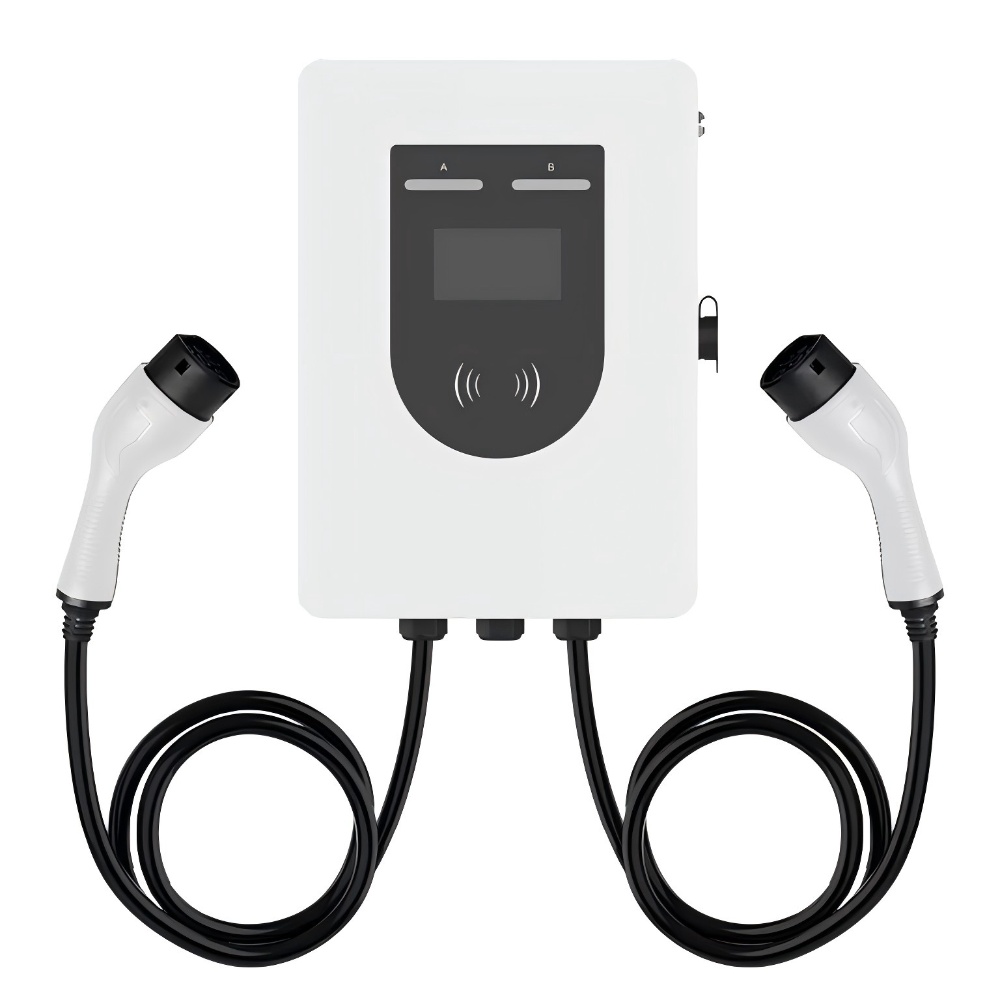

30kw 40kw Wall Mounted EU Dual Plug EV Charger adopts fast charging technology to support various types of batteries. The power of this chasis is 30/40KWSegmented constant power design, wide range seting of output voltage and current can significantly improve charging speed. The power unit adopts high-frequency switching power supply modules for parllel operation,and each moduleis independently controlled,with strong reliability and easy maintenance.
Charging method: 30/40KW DC pile,single gun output power of 30/40KW(and so on for other powers).
Name and Model | 13507-1 | 13507-2 | |
Input | Power supply | 3P+N+PE | |
Voltage range | 400VAC | ||
Frequency | 50/60HZ | ||
Output | Output voltage | 200-1000V DC | |
Maximum current | 100A | 133A | |
Rated power | 30KW | 40KW | |
User interface | Auxiliary power supply | 12VDC | |
Communication | WIFI | selectable | |
Ethernet | YES | ||
3G/4G | YES | ||
OCPP | OCPP 1.6 Json (OCPP 2.0 optional) | ||
Electrical | Efficiency | ≥95% | |
Power factor | ≥0.99 at 50% to 100% load | ||
THD | ≤5% at 50% to 100% load | ||
Ripple coefficient | ≤±0.5% | ||
Operating | RCD | CLASS A | |
Entrance protection | IP54 | ||
Impact protection | IK08 | ||
Authentication | CE | ||
Certifcate Compliance | EN/IEC 61851-1:2017,EN/IEC 61851-23:2014 | ||
Guarantee | 2 years | ||
Noise | ≤60DB | ||
Working temperature | -30℃~+55℃ | ||
Working humidity | 5%~95% | ||
Working altitude | <2000M | ||

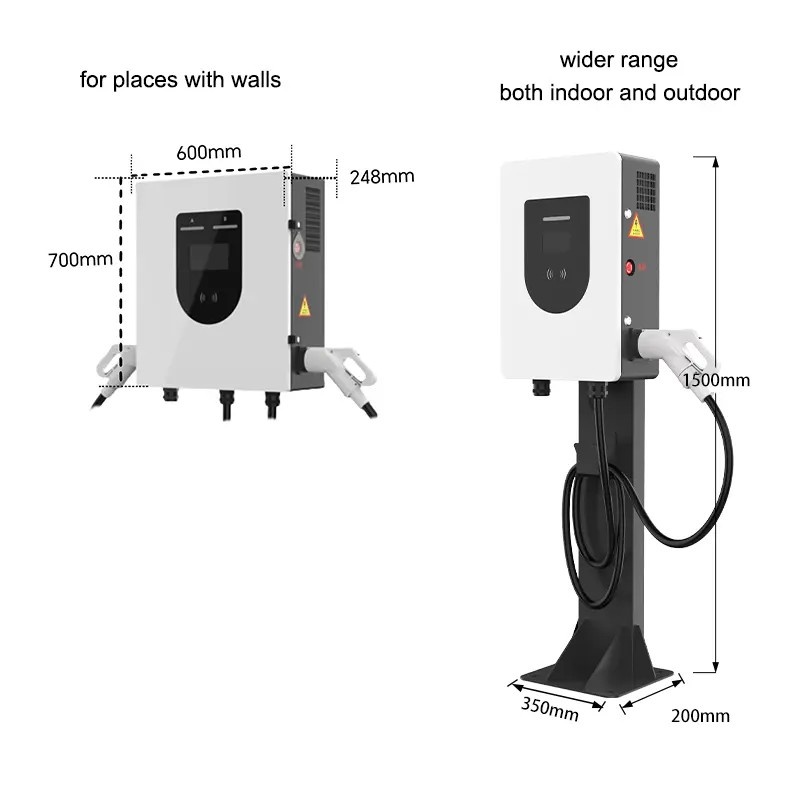

Size and weight | 450*248*700MM(L*W*H)(35KG) | 450*248*700MM(L*W*H)(35KG) |
